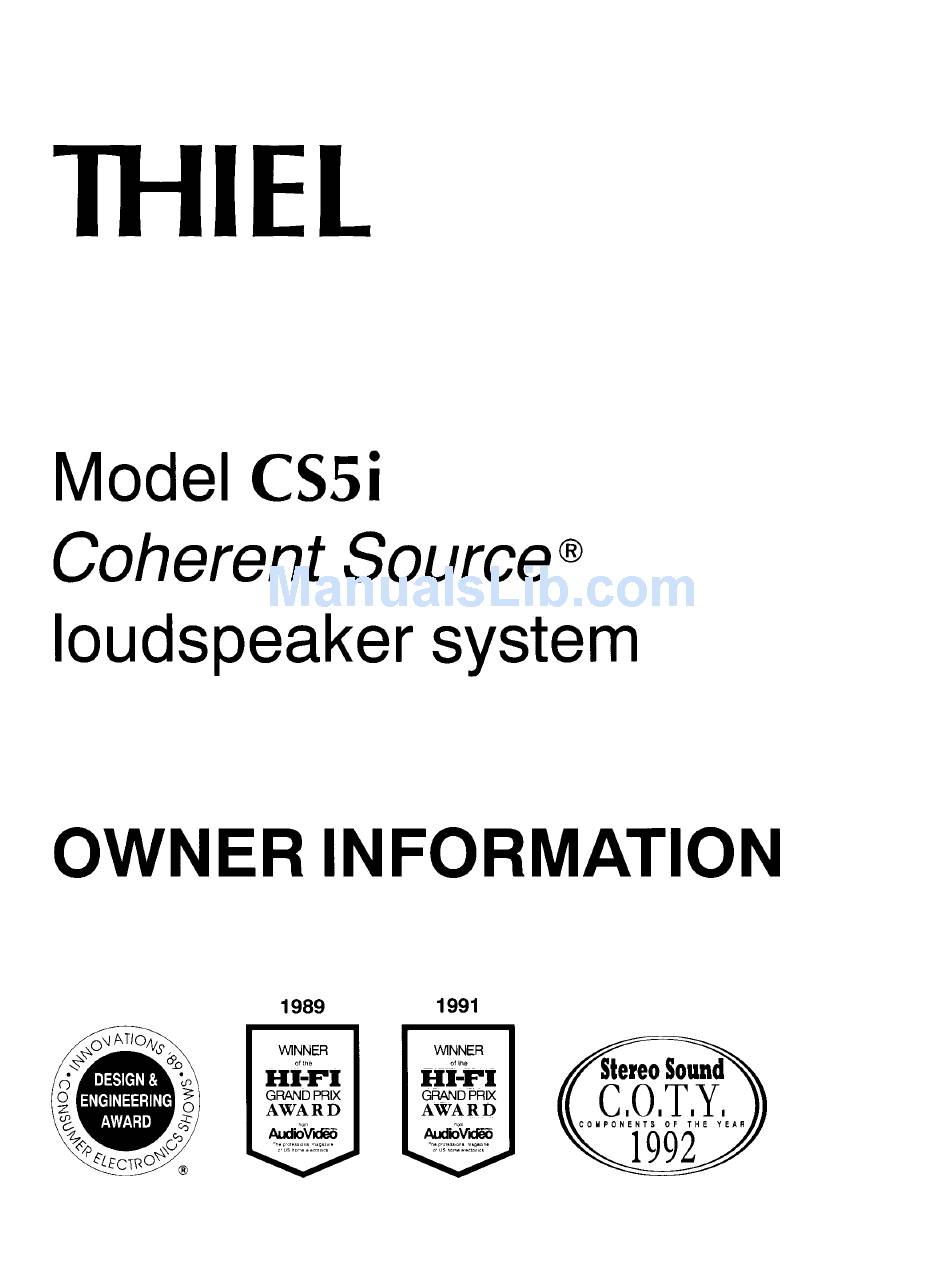

- Page 1 THIEL Model CSsi Coherent Source@ loudspeaker system OWNER INFORMATION 1 9 9 1 1989 C,O.T.Y, \"iDUt')
- Page 2 THIEL CS5i Coherert[ Sottrce'n loudspeaker system. The CS5i is the result of a long and dedicated effort to provide the most accurate music repro- duction possible. We have used only the highest quality components and taken great care in its construction.
-
Page 3: Design Philosophy
DESIGN PHILOSOPHY The CS5i is a precision instrument designed to translate, as accurately as possible, electronic information into musical sound. All our efforts have been directed toward achieving extremely faithful translation of all tonal, spatial and dynamic information supplied by the amplifier. The CS5i is not intended to mask or mitigate shortcomings of the recording or other com-... - Page 4 It may be necessary for someone to hold the crate so it does not move. When the speaker is mostly out of the crate, place a firm cushion under the top of the speaker so that it does not fall to the floor (Figure 3, above, next page).
- Page 5 'Place the protective plastic bag over the speaker. Secure the plastic bag and grille by first taping (nylon tape is preferred) around the speaker from side to side about 6" below the top of the top of the speaker and about 6" above the bottom (Figure 48).
- Page 6 Here are some guidelines to help you achieve the best sound from your speakers. (The nylon leveling feet should be left in place and remain tightened down until the final positioning has been determined.) All aspects of speaker placenxent are dependent on the particulars of tbe room. Since euery room is dffirent, no bard niles can be giuen, and expe4menta.tion is necessaty to acbieue tbe best results.
-
Page 7: Listener Position
Bass In general, when a speaker is close to a wall, the bass response is stronger; placing a speaker in a corner will make it even more so. The CS5is are designed to provide accurate bass when positioned away from all walls-the same position that provides the best imaging. - Page 8 Some rooms, especially narrow ones, can benefit from placing the speakers along the long wall. Although space behind the speaker and behind the listener is reduced, this positioning increases the space between the speakers without side wall interference, and can improve overall performance.
-
Page 9: Connecting The Speakers
' Screw one foot into each of the two holes at the back corners of the speaker. The feet should be screwed into the speaker with the wrench provided until there is about /q" of threadremaining visible. (Use the small end of the wrench for the pointed feet and the large end for the nylon feet.) - Page 10 Therefore, the diaphragm should not be touched. However, small deformations or creases will not affect its performance. SERVICE If your CS5is require service. contact your authorized THIEL dealer. Factory service information and technical support is available by calling 6061254-9427, Monday-Friday, 8:30 a.m.- 5:00 p.m. Eastern Time.
-
Page 11: Limited Warranty
Average citv traffic, garbage disposals, alarm clock at two feet THIEL warrants every THIEL model CS5i svstem against def'ects in materials and workmanship to the original owner for a period of ten years from the date of purchase. THIEI will, at no charge, replace any defective part and make any repairs necessary to ensure its proper performance when the defective unit is returned to us postpaid.
