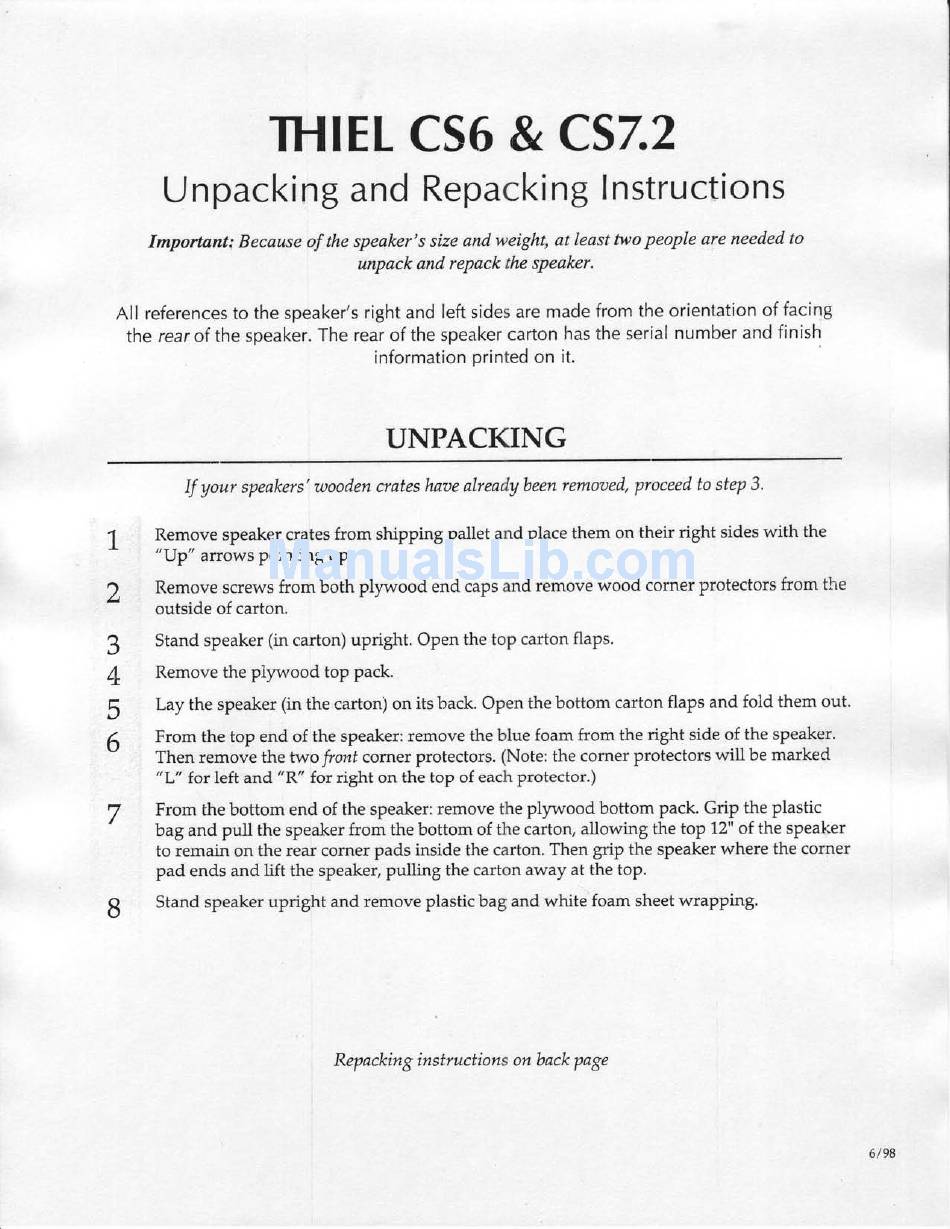

TT{IEL CS6 & CS7.2
U n packi ng and Repacki ng Instructions
Importantj Because of the speaker's size and weight, at least two people are needed to
unpack and repack the speaker.
All references to the speaker's right and left sides are made from the orien'l.ation of facing
the rear of the speaker. The rear of the speaker carton has the serial number and finish
information printed on it.
UNPACKING
If your speakers' ztsooden crates haae already been remoaed, proceed to step 3.
'l
Remove speaker crates from shipping pallet and place them on their right sides with the
r
"TJp" artows pointing up.
)
Remove screws from both plywood end caps and remove wood corner protectors from the
a
outside of carton.
3
Stand speaker (in carton) upright. Open the top carton flaps'
4
Remove the piyr,r'oed top pack.
S
Lay the speaker (in the carton) on its back. Open the bottom carton flaps and foid them out.
6
From the top end of the speaker: remove the blue foam from the right side of the speaker.
v
Then remove ttre two fronf corner protectors. (Note: the corner protectors will be markeci
' uL'
for left and "R" for right on the top of each protector.)
7
From the bottom end of the speaker: remove the piywood bottom pack. Grip the plastic
'
bugand pull the speaker from the bottom of the carton, allowing the top 12" of. the speaker
to remain on the rear corner pads inside the carton. Then grip the speaker where the corner
pad ends and lift the speaker, pulling the carton away at the top.
B
Stand speaker upright and remove plastic bag and white foam sheet wrapping.
Repacking instructions on back page
