SCHUKO socket with surge voltage protection
SCHUKO socket with surge voltage protection
Art. no.: A521UF..
SCHUKO socket with surge voltage protection
Art. no.: 521ZNAUF
SCHUKO socket with surge voltage protection
Art. no.: ..521NAUF..
Operating instructions
1
Safety instructions
Installation only by persons with appropriate electrotechnical knowledge and experience
in the following areas:
–
The "5 safety rules" to be observed are: disconnect; secure against reconnection; determ-
ine that no voltage is present; ground and short-circuit; cover or block off adjacent live
parts
–
Selection of suitable tools, measuring devices and, if necessary, personal protective
equipment
–
Evaluation of the measurement results
–
Selection of the electrical installation material to ensure the shutdown conditions
–
IP degrees of protection
–
Installation of the electrical installation material
–
Type of mains supply (TN system, IT system, TT system) and the resulting connection re-
quirements (classic earthing, protective earthing, necessary additional measures, etc.)
Improper installation endangers your own life and the lives of users of the electrical system and
there is a risk of serious damage to property, e.g. through fire. You are at risk of personal liabil-
ity for personal injury and damage to property.
Contact an electrical contractor!
Serious injuries, fire or property damage possible. Please read and follow manual fully.
To protect against high-energy surges, install multistage selective protection. Otherwise con-
nected devices may be damaged.
These instructions are an integral part of the product, and must remain with the end customer.
2

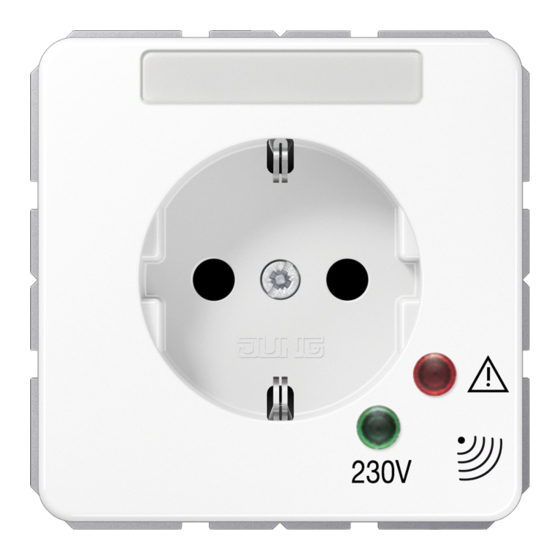

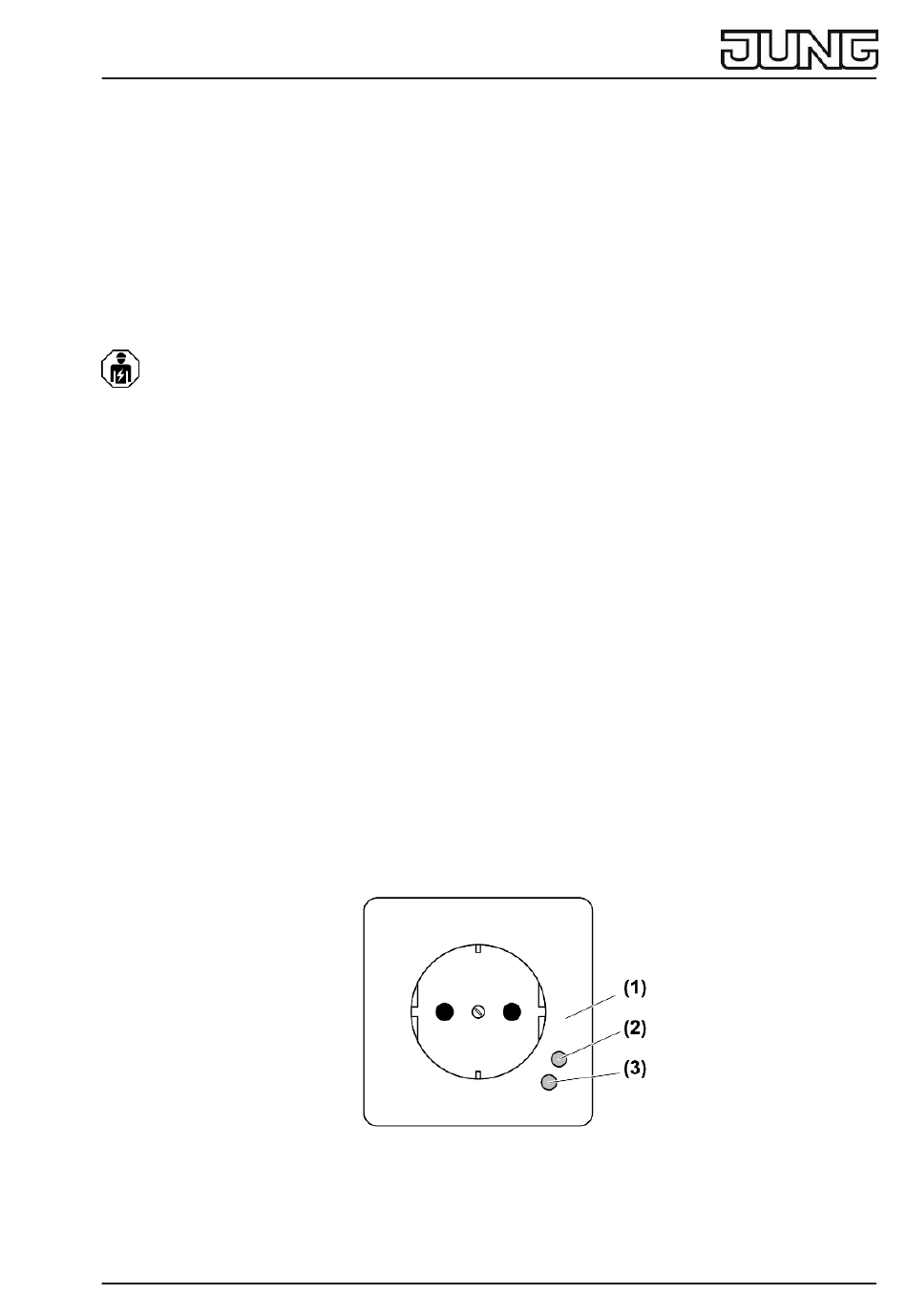

Device components
(1)
Socket outlet
(2)
Red light emitting diode = protection function not in operation
(3)
Red light emitting diode = mains voltage present
32515863
J0082515863
Figure 1: Device components
1 / 4
22.06.2021
