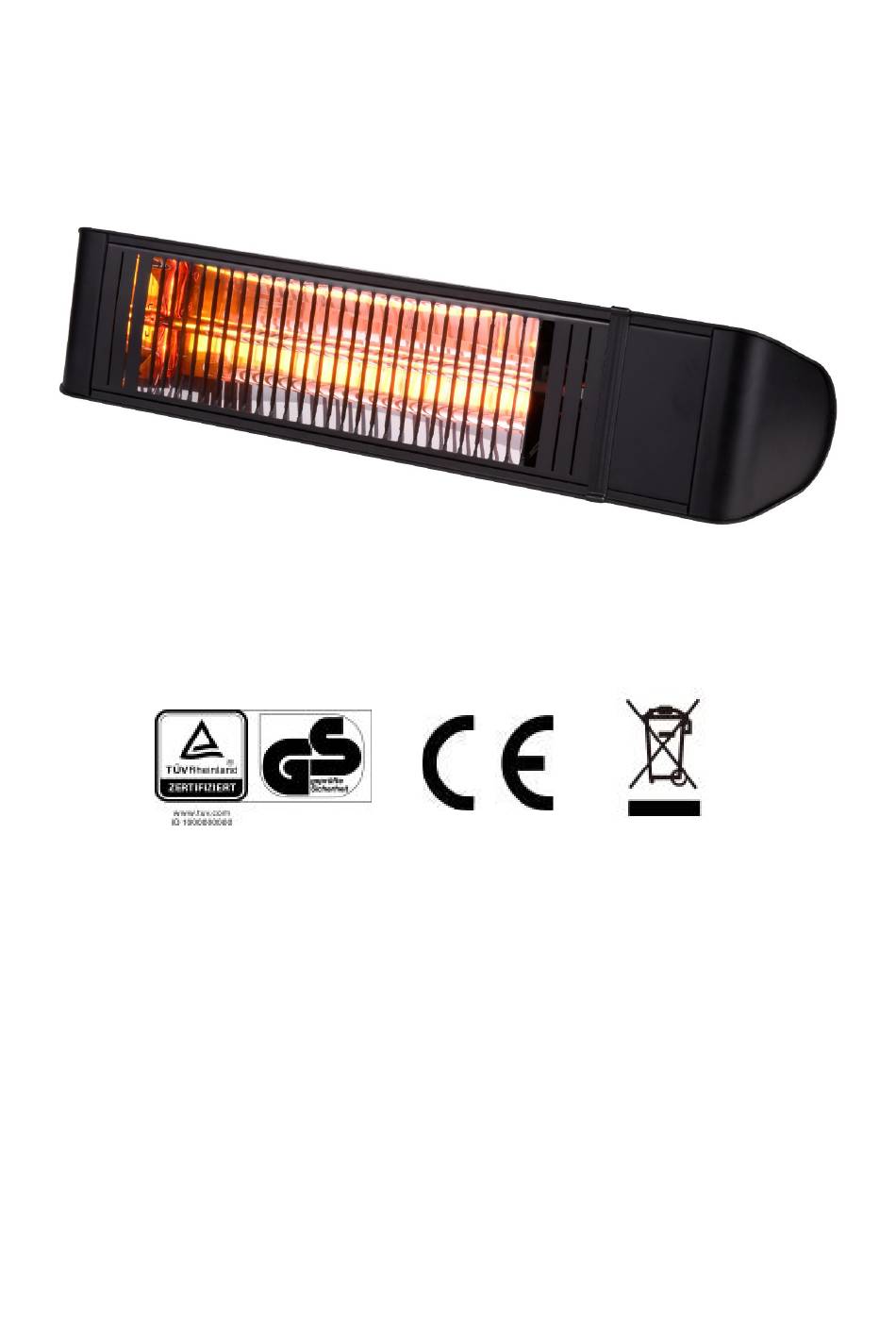

M ATRIX Infrared Patio Heater
Model: PV009-200KB
Thank you for purchasing our products.Please read carefully this instruction
before using and operate strictly accordance with the instructions,and especially pay
attention to " Important Safety Instructions" . Please be careful collection after
reading so as to for future reference.
S afety Instructions
and Operation Manual
(Note:This product is strictly prohibited to cover )
Advertisement
Table of Contents
Related Manuals for Provida Varme MATRIX
Summary of Contents for Provida Varme MATRIX
- Page 1 M ATRIX Infrared Patio Heater S afety Instructions and Operation Manual Model: PV009-200KB (Note:This product is strictly prohibited to cover ) Thank you for purchasing our products.Please read carefully this instruction before using and operate strictly accordance with the instructions,and especially pay attention to ...
-
Page 2: Important Safety Instructions
Brief Introduction This product is infrared radiant heater with remote control and IP 65 approved .It is almost unlimited used in outdoor ,such as open bars, courtyard, plaza, station, and construction site in winter etc. This patio heater is energy-efficient, convenient, environmentally friendly and for better life etc. - Page 3 ● persons. ● Always plug heaters directly into a wall outlet/receptacle. Never use with an extension cord or relocatable power tap (outlet/power strip). ● Check if the voltage indicated on the nameplate of the appliance corresponds to the local mains voltage before you connect the appliance. ●...
-
Page 4: Bluetooth Operation
Save These Instructions SPECIFCATIONS Specification □ PV009-200KB Voltage (V) □ 220-240V～ Power consumption (W) □ 2000W □ 660.0×140.0×110.0 Dimensions L×W×H (mm) Weight (kg) □ 3.5KG □ IP65 IP code Infrared receiving Angle □ 60°±5° BLUETOOTH OPERATION A free Bluetooth App is available to download for this heater for either your iPhone, iPad or Android device. -
Page 5: Reset Operation
RESET OPERATION ● Press the Reset button shortly,the power will be adjusted accordingly(Low,Middle ,High,ON/OFF) ● Press the Rest button for at least 4 seconds ,the heater will restore factory settings Remote Control Instructions Button Graphic Feature Up Arrow Up one heating level The heater goes directly to the highest heating level. - Page 6 ● The remote control function may be out of work if there is a barrier between the remote control and heater . ● Replacing the batteries duly so as not to affect the normal use of heater and remote control. Operation Instruction ●...
- Page 7 wind or rain could lead to loose. ● Plug in the power source and operate the remote control. Then observe, whether during the first 10-15 minutes the appliance works trouble-free. ● If you do not use,please remove batteries from the socket of remote control. Figure1: Mounting bracket and anchor Figure2: Min.
-
Page 9: Cleaning And Maintenance
Cleaning and Maintenance ● This appliance is consist of a robust and maintenance-free aluminum casing with a protection cover. No user serviceable parts inside. ● Before cleaning,remove the plug from the power outlet and wait until the appliance is sufficiently cooled off. ●... - Page 10 The MATRIX PV009-200KB can also be controlled by an app that has been downloaded to a tablet or smart-phone via a Bludetooth connection. This app is available in the app store for Apple devices, pls search “Sunkare” and download it. It is also available for Android in the Google Play Store. In order to be able to use the app, turn on the bluetooth connection on your smartphone or tablet and select Sunkare.
- Page 11 - Download the Sunkare APP: - Bluetooth should be switched on before using this APP. - Switch on the heater by using the main switch on the side of unit. - Then open the “Sunkare” APP on your device. - For connecting the heater with the APP, please follow the steps below: (Figure 1) (Figure 2) - Select the button in the below left corner of the home screen.
- Page 12 - For the first time use of the heater, a password will be asked. The password is automatically set to: 12345678. If the password is not accepted, please press and hold the reset button on the side of the unit for 10 second. You can retry to fill in the password.
- Page 13 - The heater is connected and ready for use. - To set the heat capacity, please select the small sun-icon below. Thereafter, below screen of Fig.5 will be showed. - Select the heater and using the circle bar on the top of the screen you are able to set the variable warm.
- Page 14 - Using the clock-icon below you are able to set the timer for automatically switch off the heater. (Fig. 7) (Figure 7)
- Page 15 - In the home screen you are able to change settings by using the cog-icon in the below right corner. - Password: Change the password. - Tilt Sensitivity: Setting voor shock protection, please refer to the instruction manual. - Rename: Modify or personalize the name of the heater. - Indicator LED: Change the settings for LED indication lamp.
- Page 16 Warning! When you switch off the heater by only using the remote (or APP), the heater will remain stand-by. Always switch off the heater by using the remote (or APP) as well as the main switch on the side of the unit and unplug it from the electrical outlet. When the APP will be out of Bluetooth reach, there will be no more connection with the heater.
