Page 1 David 2 User Manual Revised 29-03-2005...
Page 2: Table Of Contents
3. Safety Introduction Safety regulations ! Use according to intended use Safety provisions ! Warnings concerning the use of boot elevator type “David 2” 4. Product 4.1 The composition of boot elevator type “David 2” 5. Installation regulations 6. Use 6.1 Operation of the boot elevator type “David 2”:...
Page 3: Introduction
Introduction This is the user manual for boot elevator type “David 2”. Please read the whole manual carefully before you start using the light boot elevator. Especially pay strict attention to all the safety instructions. Never do any work on the “David 2”, for which you do not have the necessary knowledge or qualifications.
Page 4: Technical Specifications
2. Technical specifications Identification product: Name Boot elevator type “David 2” Type number 5025 Manufacturer B & S Auto-Aanpassing Dimensions: Platform 180x150 mm Height elevator 1000 Weight Electrical data: Connection voltage Nominal current Quiescent current Nom. output used Max. output used...
Page 5: Safety
2” danger or injury to the user or others, or damage to the boot elevator type “David 2” or other goods can arise. Only use the boot elevator type “David 2” in a technically correct condition in accordance with the described intended use, while complying with the user manual.
Page 6: Product

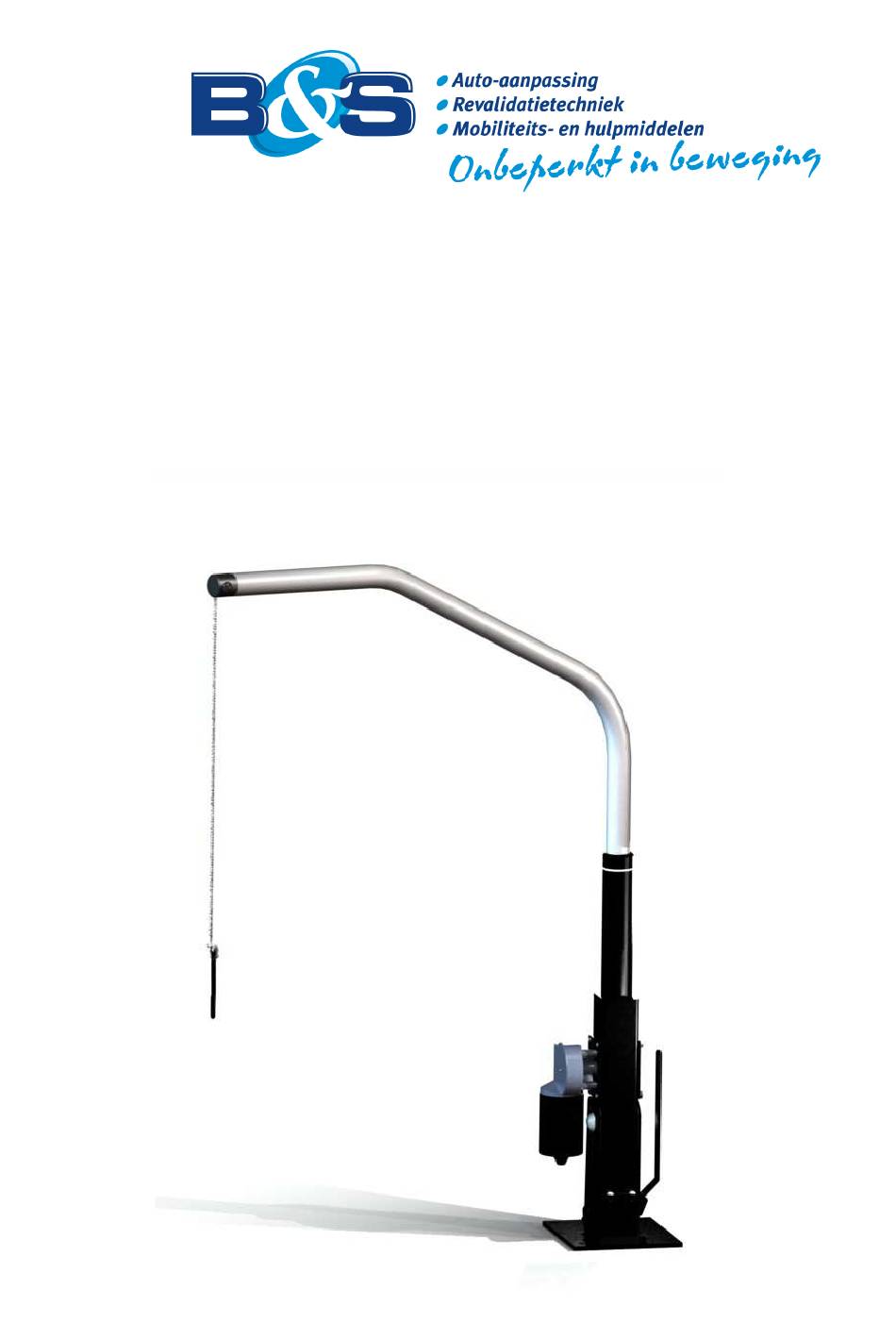

4. Product The boot elevator type “David 2” was developed for the following users: • Wheelchair users who still have a limited standing and walking function. • Persons giving assistance, who do not have the strength to lift the wheelchair into the boot.
Page 7: Installation Regulations
5. Installation regulations Building in and installing the boot elevator type “David 2” is always done by your supplier. In those cases where the installation is done by a third party, or by a company that buys the elevator from B&S Hoorn, the mounting manual should be used when building in and installation takes place.
Page 8: Use
6. Use This chapter will explain exactly all the procedures and operations in chronological order that need to be done in order to operate the boot elevator “David 2” in the correct manner, under normal circumstances. Operation of the boot elevator type “David 2”: PLACING THE WHEELCHAIR IN THE BOOT: 1.
Page 9: Maintenance
For proper functioning of the boot elevator type “David 2” it is important to have regular maintenance work done. Comply with the schedule below. Never do work on the boot elevator type “David 2” if you do not have the required knowledge and authority.
Page 10: Malfunctions And Repairs
8. Malfunctions and repairs: For solving minor malfunctions please use the “troubleshooting list” below. If you cannot repair the malfunction yourself, always call in the help of a qualified fitter or contact the manufacturer. Malfunction Cause Solution Elevator does not hoist Defective fuse Replace fuse and check for any electrical malfunctions Elevator does not hoist Fuse is OK, but the motor...
