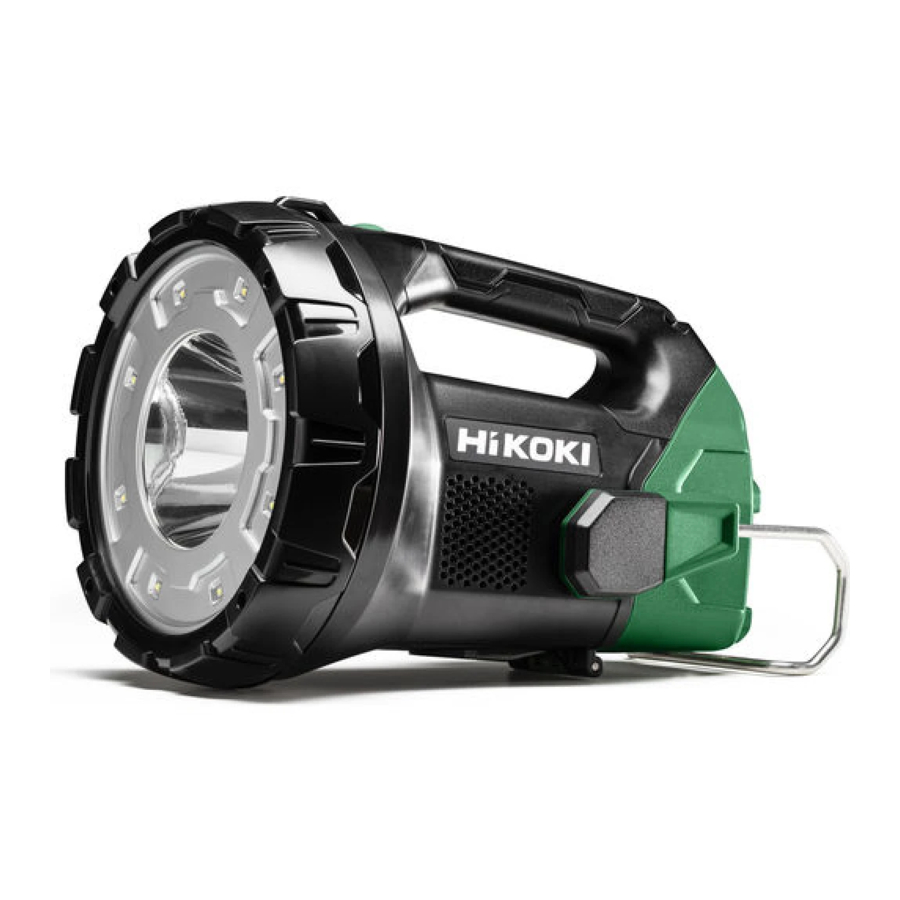

HIKOKI UB 18DA - Cordless Search Light Manual

DESCRIPTION OF NUMBERED ITEMS

DESCRIPTION OF NUMBERED ITEMS

1 Switch 5 Handle 9 Screw hole for tripod (W5/8 screw)
2 Main LED light 6 Buckle 10 Battery (sold separately)
3 Sub LED light 7 Battery cover 11 Latch
4 Reflector 8 Hook

Examples of Continuous Lighting Time* (Full Charge)

Battery/Mode Spot + Wide Spot Wide Wide (Eco)
BSL1860 3.0 hr. 6.0 hr. 5.8 hr. 22.0 hr.

* Operating time (Approx.): Using full charged Battery
Please refer to (Fig. 6) for batteries that can be used.

HOW TO USE

  1. Battery insert/removal: Slide the hook towards the front of the search light. (Fig. 2) Detach the buckle and open the battery cover. Insert the battery in direction A until it clicks. To remove, extract it in direction B while holding down the latch. (Fig. 3)
  2. Each time you press the switch, the light will cycle through each mode.
  3. Use the hook (Fig. 4) when hanging the unit from a pipe. The angle of the hook is adjustable. (Fig. 2)
  4. Please use the tripod listed in our catalogue.
    A tripod can be attached using the W5/8 inch screw hole located on the bottom of the unit.
    Use a tripod with a screw length projection of 8 to 12mm. (Fig. 5)

  • Use cord or a similar article to fix the unit in place to prevent it from falling.
  • Make sure the screw hole is clear of any dust or other particles before attaching a tripod.
  • Please remove battery if the unit will not be used for a long period of time.
  • When using a tripod, place in a stable location so the light will not fall.
  • When using on a surface that can be easily damaged such as flooring material, turn the rubber pads on the butt ends to cover the points of the tripod's legs.

NOTE: Make sure the instruction manuals supplied with the separately-purchased chargers and batteries are read thoroughly prior to use.

SPECIFICATIONS

LED light 18 W × 1 pcs. / 3 W × 8 pcs.
Dimensions
(without battery)
203 mm (width) × 280 mm (length) × 204 mm (height)
Weight (without battery) 1.85 kg

Safety

Symbols

The following show symbols used for the machine. Be sure that you understand their meaning before use.
To reduce the risk of injury, user must read instruction manual.
Failure to follow the warnings and instructions may result in electric shock, fi re and/or serious injury.
When the light is lit, do not look directly into it, aim it at a person or animal, or direct it toward the eyes. Doing so may harm the eyes.
Only for EU countries Do not dispose of electric tools together with household waste material! In observance of European Directive 2012/19/EU on waste electrical and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility.
14.4/18V Battery voltage

  • Do not use any other than the specified batteries.
  • Be careful of electrical shock.
  • Do not allow children to operate the light.
  • When not in use or during inspection and maintenance, be sure to turn the switch OFF on the unit, and remove the battery from it.
  • Do not cover the search light with cloth, cardboards or other materials when the light is on. Make sure there is over 30 cm of space between the light and its target. Doing so may result in fi re.
  • Always use the tool and battery at temperatures between -5°C and 40°C.

  • The LED cover will remain at a high temperature when alight and immediately after use, so do not touch it.
  • Do not shock or disassemble the search light.
  • Do not expose the search light to rain. Do not leave the search light in a car or the like that tends to be exposed to be searching heat of the sun (above 50°C). Otherwise, troubles can result.
  • Avoid catching your hand in the revolving area when manipulating the battery cover and hook.
