Aukey SK-M28 - Portable Wireless Speaker Manual

Table of Contents

Contents

1 Introduction
2 Package Contents
3 Product Diagram
4 Charging
5 Power On/Off & Pairing
6 Functions & Operations
7 Specifications
8 FAQ / Trouble Shooting
9 Suggested Care & Maintenance
10 Documents / Resources
- 10.1 References
- 10.2 Download manual

Introduction

Please read this user manual carefully and keep it in a safe place for future reference. If you need any assistance, please contact our support team with your product model number and Amazon order number.

Package Contents

AUKEY SK-M28 Portable Wireless Speaker
Micro USB Cable
3.5mm Audio Cable
24 Month Warranty Card
User Manual

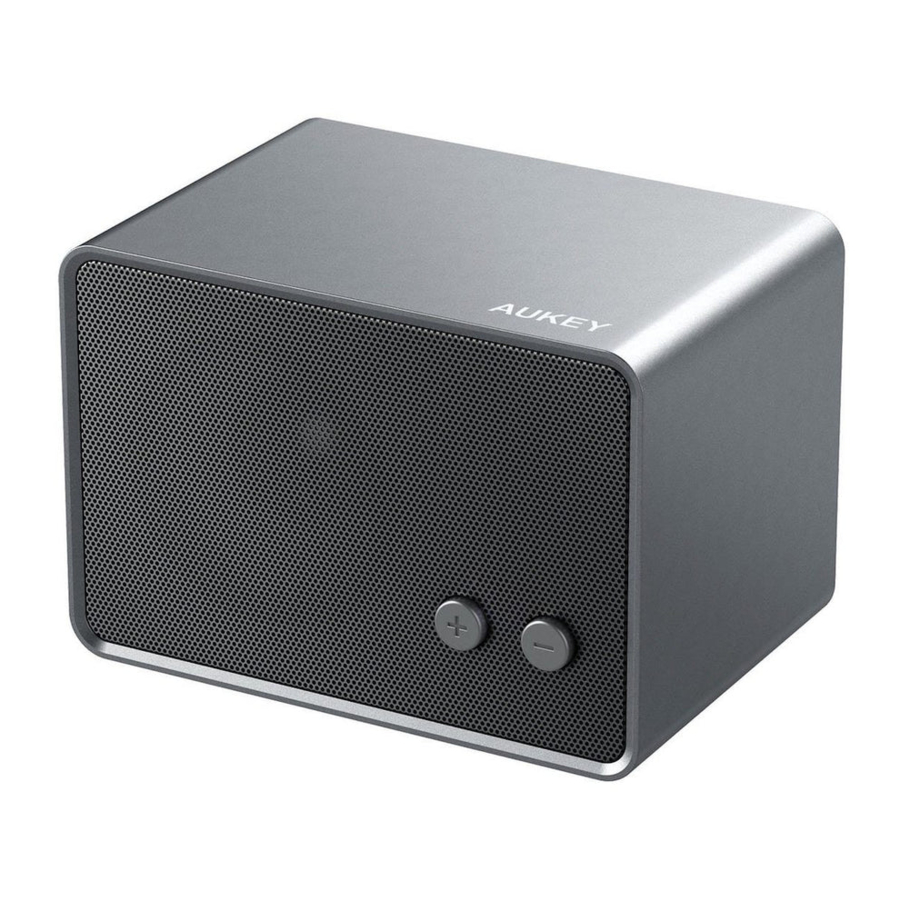

Product Diagram

Volume + / Next Track
Volume - / Previous Track
LED Indicator
Micro USB Charging Input
Power Switch (On/Off)

Charging

Please fully charge your speaker before using it for the first time. If you hear the low battery prompt it's time to recharge. To charge, connect the included micro USB cable to a USB power source and then to the micro USB input port on the speaker. When the red LED charging indicator light turns off, your speaker is fully recharged and ready for use.

Power On/Off & Pairing

Bring the SK-M28 Wireless Speaker to within 33ft (10m) of your pairing device.
Turn the Power Switch (On/Off) to "ON" and the LED indicator will turn to blue for about 4 seconds. Then, the LED indicator starts to flash quickly with a blip sound which means it has entered pairing mode.
Turn on the pairing function on the device you want to pair with your speaker.
In the list of available pairing function devices, find and select "AUKEY SK-M28".
If a code or pin is required for pairing, please enter "0000".
When successfully paired, the LED indicator will stay on blue with a blip sound.

Notes

The speaker will automatically shut down after 10 minutes in pairing mode if no devices are paired.
If your paired device is switched off or disconnected, the speaker will automatically shut down after 5 minutes.
If using the speaker with a computer, please make sure you have downloaded the latest wireless drivers for your operating system.
Maximum wireless operating range is 33ft (10m). If you exceed this range, the speaker may disconnect and go into standby mode. The connection will be reestablished once you reenter wireless range. The speaker will automatically reconnect to the last successfully paired device. To connect to other wireless audio devices, please repeat the 'Pairing' process in the previous section.

Functions & Operations

Functions	How To
To adjust volume	Short press Volume +/- buttons
To switch track	Long press Volume +/- buttons
To answer a call	Short press Volume+ button
To reject an incoming call	Short press Volume- button
LED Indicator	Speaker Status
Blue light	Power on
Blue light quickly flashing	Pairing mode
Blue LED stays on	Connected
Red LED turns off	Fully charged

Specifications

Technology	3.0, A2DP, AVRCP
Wireless Range	33ft (10m)
Play Time	4 Hours
Standby Time	Up to 20 Hours
Charging Time	2-3 Hours
Power Input	DC 5V
Battery Type	Rechargeable Li-Polymer (500mAh)

FAQ / Trouble Shooting

Why isn't my speaker pairing with my iPad/iPhone?

A: Please make sure that your SK-M28 speaker and wireless device are powered on and in pairing mode (the LED indicator will be flashing blue quickly).

Can I use the speaker while it is charging?

A: Yes, but in order to ensure the long-term performance of the battery, we recommend that you try to avoid using the speaker while charging.

The music sometimes cuts off while playing.

A: The operating range of the speaker may be influenced by obstructions such as walls, pillars, and reinforced steel walls. To ensure a stable connection, we recommend avoiding such obstructions whenever possible and/or shortening the distance during use.

Q: I turned on the speaker, but why don't I see the LED light?
A: Please make sure that the unit is charged. If it is fully charged and still nothing happens or if you are not able to charge the unit, please contact our customer support team.

Suggested Care & Maintenance

Please power off when not in use or before storing
Please keep away from excessive heat and humidity
Do not use chemicals or detergents to clean this product
Extreme temperatures can shorten lifespan of internal components

AUKEY International Ltd.
www.aukey.com | support@aukey.com No.102, Building P09, Electronic Trade Center Huanan City, Pinghu Town, Longgang District Shenzhen, Guangdong 518111 CN
