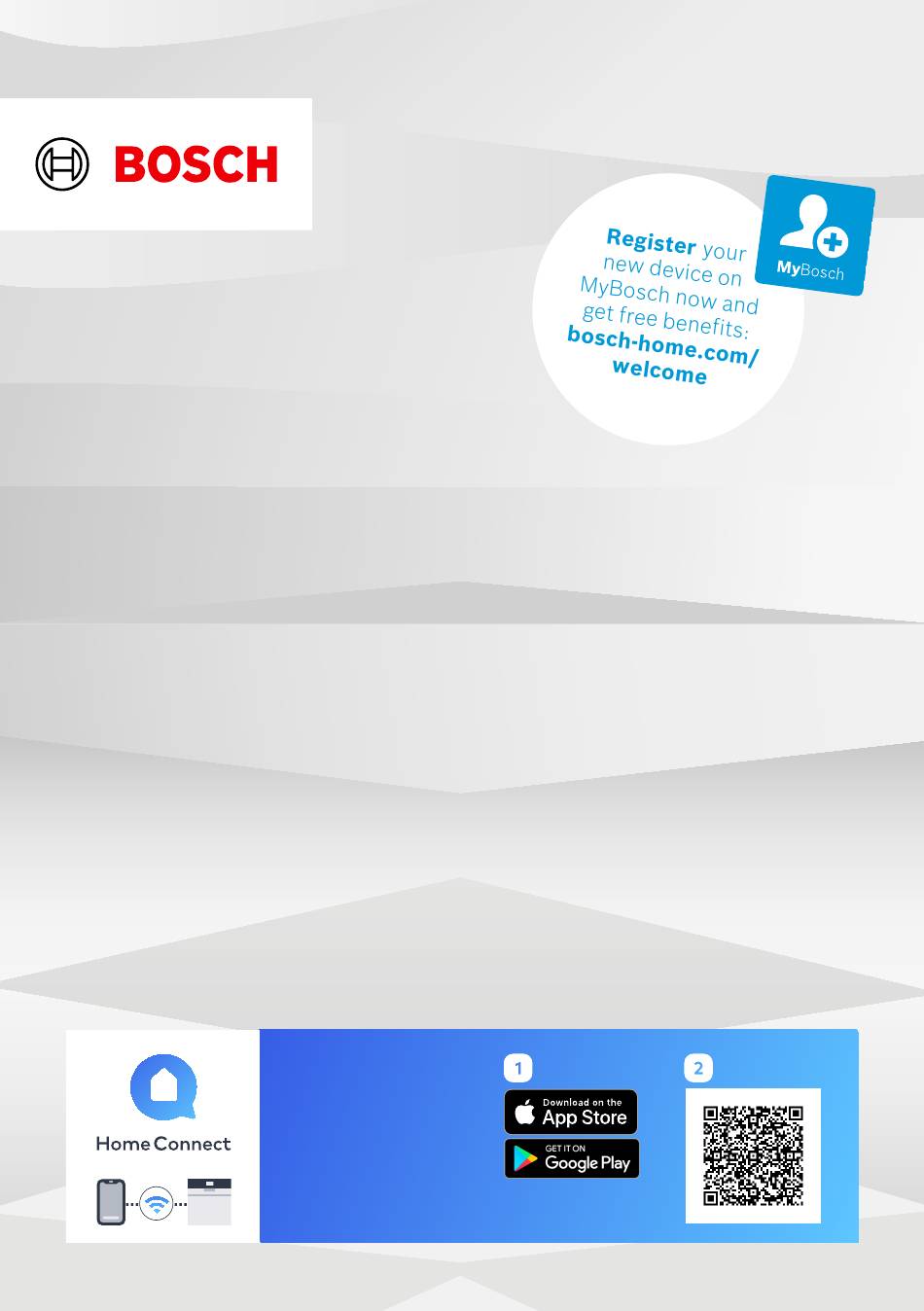

- Page 1 Dishwasher SPV2IKX54Q [en] Information for Use Connect Get the app Scan QR code your dishwasher with Home Google Play and the Google Play logo are trademarks of Google Connect today! LLC. Apple and the Apple logo are trademarks of Apple Inc.
-
Page 2: Table Of Contents
Further information and explanations are available online: Table of contents 1 Safety ........... 4 8.3 Etagere ........ 21 1.1 General information.... 4 8.4 Bottom basket ...... 21 1.2 Intended use...... 4 8.5 Folding prongs ...... 21 1.3 Restriction on user group.. 4 8.6 Cutlery basket ...... - Page 3 14.2 Setting a programme .... 31 14.3 Setting additional functions ... 31 14.4 Setting timer programming .. 31 14.5 Starting the programme .. 31 14.6 Interrupting programme .. 31 14.7 Terminate programme... 32 14.8 Switching off appliance .. 32 15 Basic settings...... 33 15.1 Overview of the basic set- tings........
-
Page 4: Safety
en Safety 1 Safety Observe the following safety instructions. 1.1 General information ¡ Read this instruction manual carefully. ¡ Keep the instruction manual and the product information safe for future reference or for the next owner. ¡ Do not connect the appliance if it has been damaged in transit. 1.2 Intended use Only use this appliance: ¡... - Page 5 Safety en WARNING ‒ Risk of electric shock! Incorrect installation is dangerous. ▶ Connect and operate the appliance only in accordance with the specifications on the rating plate. ▶ Always use the supplied power cable for the new appliance. ▶ Connect the appliance to a power supply with alternating cur- rent only via a properly installed socket with earthing.
-
Page 6: Safe Use
en Safety WARNING ‒ Risk of injury! Hinges move when opening and closing the appliance door and can cause injury. ▶ If built-under or integrable appliances are not in a cavity so that one side is accessible, the hinge area must be covered at the side. -
Page 7: Damaged Appliance
Safety en WARNING ‒ Risk of injury! Leaving the appliance door open may result in injury. ▶ Only open the appliance door to load or unload tableware in or- der to prevent accidents, e.g. through tripping. ▶ Do not sit or stand on the appliance door when open. Knives and utensils with sharp points can cause injuries. -
Page 8: Risk To Children
en Safety ▶ If the appliance or the power cord is damaged, immediately un- plug the power cord or switch off the fuse in the fuse box and turn off the water tap. ▶ Call customer services. → Page 47 Incorrect repairs are dangerous. ▶... - Page 9 Safety en WARNING ‒ Risk of chemical burns! Rinse aid and detergent may cause chemical burns to the mouth, throat and eyes. ▶ Keep children away from detergent and rinse aid products. ▶ Keep children away from the appliance when open. The water in the interior of the dishwasher is not drinking water.
-
Page 10: Preventing Material Damage
en Preventing Modified or damaged water hoses Preventing 2 Preventing material may result in material damage and damage to the appliance. damage Never kink, crush, modify or cut ▶ through water hoses. Preventing 2.1 Safe installation Only use the water hoses supplied ▶ with the appliance or genuine ATTENTION! spare hoses. -
Page 11: Environmental Protection And Saving Energy
Environmental protection and saving energy en So as not to scratch the finish on ▶ 4 Installation and con- the appliance, do not use sponges with a rough surface or abrasive nection cleaning agents. To prevent corrosion, do not use To ensure proper operation, connect ▶... -
Page 12: Drainage Connection
en Installation and connection installing it under a continuous work- 4.4 Drinking water connec- top that is securely connected to ad- tion jacent cabinets. Follow the safety instructions. Connect your appliance to a drinking → Page 4 water connection. Follow the instructions for electrical Installing the drinking water connection. -
Page 13: Familiarising Yourself With Your Appliance
Familiarising yourself with your appliance en 5 Familiarising yourself with your appliance 5.1 Appliance You can find an overview of the parts of your appliance here. Rating plate Rating plate with E number and FD num- ber → Page 47. The data you need for Customer Service → Page 47. - Page 14 en Familiarising yourself with your appliance Detergent dispenser Add detergent to the detergent dispenser. → "Detergent", Page 26 Bottom basket Bottom basket → Page 21 Filter system Filter system → Page 38 Dispenser for special salt Add special salt to the dispenser for spe- cial salt. → "Water softening system", Page 23 Tablet collecting tray During the wash cycle tablets automatic- ally fall out of the detergent dispenser into...
-
Page 15: Controls
Familiarising yourself with your appliance en 5.2 Controls You can use the control panel to configure all functions of your appliance and to obtain information about the operating status. With some buttons you can perform different functions. 4 5 6 7 ON/OFF button and reset Switching on the appliance button... - Page 16 en Familiarising yourself with your appliance Programme buttons and addi- Programmes tional functions → "Programmes", Page 17 Additional functions → "Additional functions", Page 19 Door handle Open the appliance door. WLAN display Home Connect → Page 35 Rinse aid refill indicator Rinse aid system → "Adding rinse aid", Page 25 Special salt refill indicator Water softening system → "Adding special salt", Page 24...
- Page 17 Programmes en 6 Programmes You can find an overview of the pro- ted. The running time will change if grammes that can be selected here. the rinse aid system is switched off Different programmes, which can be or rinse aid needs to be added. found on the control panel of your The consumption values can be appliance, are available depending...
-
Page 18: Information For Test Institutes
en Programmes Programme Programme se- quence Level of soiling: ¡ Cold rinsing, intermediate cleaning Note: The relatively long running time in the Eco 50 ° programme is due to longer soaking and drying times. This results in optimal consumption val- ues. 6.1 Information for test insti- tutes Test institutes are provided with in- formation for comparability tests, e.g. -
Page 19: Additional Functions
Additional functions en 7 Additional functions You can find an overview of the additional functions that can be selected here. Different additional functions, which can be found on the control panel of your appliance, are available depending on the appliance configuration. You can se- lect certain additional functions depending on the programme. -
Page 20: Top Basket
en Features Re-attach the basket to the upper 8.1 Top basket rollers (setting 3) or lower rollers Arrange cups, glasses and small (setting 1). items of tableware in the top basket. Check that the basket is level on both sides. Knife shelf Slide the basket back in. You can adjust the height of the top basket to make room for larger items 8.2 Knife shelf... -
Page 21: Etagere
Features en 8.3 Etagere Use the cutlery shelf and space un- derneath for small cups and glasses or for large items of cutlery, e.g. cooking spoons or serving cutlery. 8.5 Folding prongs Use the folding prongs to position tableware securely, e.g. plates. If you do not need the cutlery shelf, you can fold it up. -
Page 22: Cutlery Basket
en first time Push the lever forwards and fold first time 9 Before using for the down the prongs . first time first time 9.1 Performing the initial con- figuration On initial start-up or after a reset to the factory settings, you will need to make settings. -
Page 23: Water Softening System
Water softening system en To ensure good dishwashing results, 10 Water softening sys- you can treat the water with special salt and the water softening system. To avoid damage to the appliance, water with a hardness above 9 °E Hard water leaves limescale on the must be softened. -
Page 24: Overview Of Water Hardness Settings
en Water softening system Press repeatedly until the Unscrew the lid of the dispenser right water hardness has been set. for special salt and remove. On initial start-up: Fill the dispenser right up with water. Note: Only use special salt for dishwashers. Do not use salt tablets. -
Page 25: Rinse Aid System
Rinse aid system en can generally only be used up to a Press the catch on the lid of the water hardness of 26 °E without dispenser for rinse aid and lift adding special salt. . ¡ The water hardness is 0 - 8 °E. You do not need to use special salt. -
Page 26: Switching The Rinse Aid System Off
en Detergent Press repeatedly until To save the settings, press flashes. for 3 seconds. Press repeatedly until the a The rinse aid system is switched right amount of rinse aid has been off and the rinse aid refill indicator set. is deactivated. 12 Detergent 12.1 Suitable detergents Only use detergents that are suitable... -
Page 27: Unsuitable Detergents
Detergent en ing and drying results we recom- Liquid detergent mend using special salt and rinse aid Liquid detergent works faster and is from a water hardness of 17 °E. If recommended for shorter pro- you are using combined detergent, grammes without PreRinse. the washing programme is adjusted Sometimes liquid detergent may leak automatically to ensure the best pos-... -
Page 28: Adding Detergent
en Tableware ¡ To prevent sticking, only touch de- Close the lid of the detergent dis- tergents in a water-soluble pouch penser. with dry hands and only ever place them in a dry detergent dispenser. ¡ Even if the rinse aid and special salt refill indicators light up, wash- ing programmes will run properly with combined detergents. -
Page 29: Tableware
Tableware en 13.1 Damage to glass and Cause Recommenda- tion tableware Highly caustic al- If you are using Only put glasses and china in the kaline or highly highly caustic al- dishwasher if it is marked as dish- acidic cleaning kaline or highly washer-safe by the manufacturer. -
Page 30: Removing Tableware
en operation ¡ For better washing and drying res- ults, position items with curves or recesses at an angle so water can run off. 13.3 Removing tableware WARNING Remove large remnants of food Risk of injury! from tableware. Hot tableware can cause burns to the To save resources, do not pre- skin. -
Page 31: Setting A Programme
operation en If you do not perform any actions 14.5 Starting the programme on the appliance for 10 minutes, Press the appliance will automatically ▶ switch off. a The programme has ended when no indicators on the controls light 14.2 Setting a programme Notes To adjust the washing programme to ¡... -
Page 32: Terminate Programme
en operation 14.7 Terminate programme To end a programme early or to switch from a programme that has already started, you will need to can- cel it first. Open the appliance door. Press for approx. 4 seconds. Close the appliance door. a The programme is cancelled and ends after approx. -
Page 33: Basic Settings
Basic settings en 15 Basic settings You can configure the basic settings for your appliance to meet your needs. 15.1 Overview of the basic settings The basic settings depend on the features of your appliance. Basic setting Selection Description Water hardness Scale with 4 levels Set the water hardness. - Page 34 en Basic settings Basic setting Selection Description Remote Start Scale with 3 levels Activate or deactivate the function. → "Activating Remote Start ", Page 35 This basic setting is not available until you have connected the appliance with the Home Connect app. → "Home Connect ", Page 35 Factory setting Reset...
- Page 35 Home Connect en Press repeatedly until the Set Wi-Fi LEDs show the right value. Press . To open the appliance settings, press for 3 seconds. flashes. Press repeatedly until flash. Press repeatedly until the LEDs show the right value. If LED A lights up, the function is permanently deactivated.
-
Page 36: Home Connect Quick Start
en Home Connect Home Connect services in your coun- The Home Connect app guides try. You can find information about you through the entire login pro- this at: www.home-connect.com. cess. To be able to use Home Connect, Setting up Home Connect you must first set up the connection to the WLAN home network (Wi-Fi Requirements and to the Home Connect app. -
Page 37: Data Protection
Cleaning and servicing en Note: Please note that the Requirements ¡ The appliance is connected to your Home Connect functions can only be WLAN home network. utilised with the Home Connect app. ¡ The appliance is connected to the Information on data protection can be Home Connect app. -
Page 38: Tips On Appliance Care
en Cleaning and servicing Turn the coarse filter anticlockwise 17.3 Tips on appliance care and remove the filter system . Follow the tips on appliance care to Check that no foreign objects ‒ make sure your appliance functions fall into the sump. properly at all times. -
Page 39: Cleaning Spray Arms
Cleaning and servicing en Carefully clean the rim of dirt 17.5 Cleaning spray arms between the coarse and the fine fil- Limescale and soiling in the dish- ter. washing water may block the nozzles Re-assemble the filter system. and bearings on the spray arms. Make sure that the locking catches Clean the spray arms regularly. -
Page 40: Troubleshooting
18 Troubleshooting Tip: You can find further information and explanations on troubleshooting on- line by scanning the QR code in the table of contents and on our website www.bosch-home.com. WARNING Risk of electric shock! Incorrect repairs are dangerous. Only use genuine spare parts when repairing the appliance. - Page 41 Troubleshooting en Fault Cause and troubleshooting Display for water sup- Wastewater hose is blocked or kinked. ply lights up Reposition the wastewater hose without kinks. Remove residues. Siphon connection is still sealed. Check the connection to the siphon and open if ne- ▶...
- Page 42 en Troubleshooting Fault Cause and troubleshooting All LEDs lit up or Electronics have detected a fault. flashing. Press the main switch button for approx. 4 seconds. The appliance is reset and restarted. If the problem occurs again: Switch off the appliance. ‒ Pull out the mains plug or switch off the fuse in ‒...
- Page 43 Troubleshooting en Fault Cause and troubleshooting Remnants of food on Select a more intensive washing programme. ▶ tableware. → "Programmes", Page 17 Tall narrow receptacles in corner areas are not rinsed adequately. Do not position tall narrow receptacles at too great ▶ an angle or in corner areas. Top baskets on right and left are not set to same height.
- Page 44 en Troubleshooting Fault Cause and troubleshooting Detergent residue is Detergent dispenser was damp when detergent was present in the deter- added. gent dispenser or the Only add detergent to a detergent dispenser when ▶ tablet collecting tray. dry. Special salt refill indic- Insufficient special salt.
-
Page 45: Clean Wastewater Pump
Transportation, storage and disposal en Insert the pump cover and press 18.1 Clean wastewater pump down . Large remnants of food or foreign bodies can block the waste water pump. As soon as the rinsing water no longer drains properly, the waste water pump must be cleaned. -
Page 46: Protect Appliance From Frost
en Transportation, storage and disposal 19.2 Protect appliance from 19.4 Disposing of old appli- frost ance If there is a risk of frost where the ap- Valuable raw materials can be re- pliance will be standing, e.g. in a holi- used by recycling. day home, empty the appliance com- pletely. -
Page 47: Customer Service
Customer Service en 20 Customer Service Detailed information on the warranty period and terms of warranty in your country is available from our after- sales service, your retailer or on our website. If you contact Customer Service, you will require the product number (E- Nr.), the production number (FD) and the consecutive numbering (Z-Nr.) of your appliance. -
Page 48: Technical Specifications
en Technical specifications 21 Technical specifications Weight Max.: 45 kg Voltage 220 - 240 V, 50 Hz or 60 Hz Power rating 2000 - 2400 W Fuse 10 - 16 A Water pressure ¡ min. 50 kPa (0.5 bar) ¡ max. 1000 kPa (10 bar) Inlet rate Min. 10 l/min Water temperature Cold water. Hot water max.: 60 °C Capacity 9 place settings and additional documents). - Page 52 Expert advice for your Bosch home appliances, help with problems or a repair from Bosch experts. Find out everything about the many ways Bosch can support you: www.bosch-home.com/service Contact data of all countries are listed in the attached service direct- ory.
