Norcold 1200 Installation Manual
1200 series; 120x-im series 12.0 cu.ft., 2-way, 4-door, r.v. refrigerator 12.0 cu.ft., 2 way, 4-door, r.v. refrigerator with ice maker
Hide thumbs
Also See for 1200:
- Service manual (68 pages) ,
- Parts list (24 pages) ,
- Owner's manual (20 pages)
Table of Contents
Advertisement
For 1200XX models:
For 120X-IMXX models:
The letter "X", in the model numbers above, stands for a letter or numeral which means a
refrigerator option.
WARNING:
can cause injury or property damage. Refer to this manual. For assis-
tance or additional information, contact a qualified installer, service
agency, or the gas supplier.
FOR YOUR SAFETY
Do not store or use gasoline or other flammable vapors and liquid in
the vicinity of this or any other appliance.
FOR YOUR SAFETY
If you smell gas:
WARNING:
DO NOT install this refrigerator in below deck marine
applications. Do not install this refrigerator in a fixed indoor cabin or
other dwelling applications. This refrigerator must use only
NORCOLD designed and approved outside air intake and exhaust
ventilation for correct and safe operation. Any other ventilation could
cause lethal combustion exhaust fumes and/or explosive propane
gas fumes to be in the living area and/or to be below deck.
NORCOLD, Inc.
P.O. Box 4248
Sidney, OH 45365-4248
12.0 cu.ft., 2-way, 4-door, R.V. refrigerator.
12.0 cu.ft., 2 way, 4-door, R.V. refrigerator with ice maker.
Improper installation, adjustment, alteration, service or maintenance
1. Open windows.
2. Don't touch electrical switches.
3. Extinguish any open flame.
4. Immediately call your gas supplier.
Installation Manual
English
French
Part No. 628936A (2-06)
Advertisement
Table of Contents
Related Manuals for Norcold 1200
Summary of Contents for Norcold 1200
-
Page 1: Installation Manual
4. Immediately call your gas supplier. WARNING: DO NOT install this refrigerator in below deck marine applications. Do not install this refrigerator in a fixed indoor cabin or other dwelling applications. This refrigerator must use only NORCOLD designed and approved outside air intake and exhaust ventilation for correct and safe operation. -
Page 2: Table Of Contents
Be aware of possible safety hazards when you see the safety alert symbol on the refrigerator and in this manual. A signal word follows the safety alert symbol and identifies the danger of the hazard. Carefully read the descriptions of these signal words to fully know their meanings. -
Page 3: Ventilation Requirements
These fans turn on when the condenser fin temperature at the thermostat is about 130° F or higher and only when the refrigerator controls are on. These fans turn off when the condenser fin temperature at the thermo- stat is about 115°... -
Page 4: Assemble The Enclosure For The Refrigerator
- a metal or a wood panel and extend the full width and depth of the enclosure. - able to support the weight of the refrigerator and its con- tents. - level to maintain door alignment. - Page 5 - If the design of the vehicle does not allow you to install a roof exhaust vent, install an upper side-wall exhaust vent. NOTE: The refrigerator is 23.7 in. min. to 24.0 in. max. from the rear of the breaker to the rear of the condenser [22] and is 59.0 in.
-
Page 6: Install Decorative Door Panels (Non-Metal Door Models)
- Push the refrigerator completely into the enclosure. 3. Install the mounting screws and trim: - Put the upper trim piece [40] onto the front of the refrigerator (See Art01649). - Put the four screws [41] through the mounting flange on the front of the refrigerator and into the enclosure wall. -
Page 7: Optional Installation

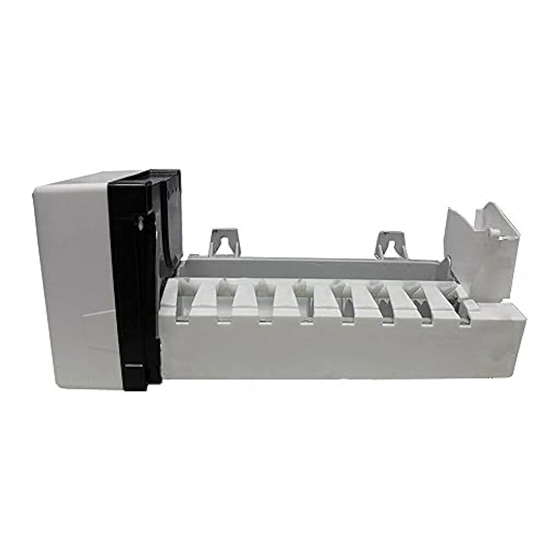

The ice maker is assembled to the refrigerators at the factory as optional equipment. If the refrigerator does not have a factory installed ice maker, one can not be added to the refrigerator at a later time. The refrigerator installer must connect a cold water supply line to the solenoid valve at the rear of the refrigerator. -
Page 8: Connect The 120 Volts Ac Supply
Do not remove the round ground prong from the AC power cord of the refrigerator or the ice maker (optional). Do not use a two prong adapter or an extension cord with either AC power cord. Operation of the refrigerator without correct ground can cause dangerous electrical shock or death if you are touching the metal parts of the refrigerator. -
Page 9: Ignition And Start Up
If you use compressed air for the test: - The pressure of the compressed air at the manual shut off valve of the refrigerator must not be more than 1/2 psig (14 inches Water Column). - If the pressure of the compressed air is more than 1/2 psig (14 inches Water Column), remove the gas supply line from the bulkhead fitting of the refrigerator before the test. -
Page 10: Do A Test Of The Gas Safety Valve
5. Put the wire back on the solenoid of the gas safety valve. 6. Close the lower intake vent. Shut down - all models: To shut down the refrigerator, push and hold the ON/OFF button for one second. Installation Manual 10... -
Page 11: Fault Codes
Fault Codes t l u t l u a t l a l i " " r " " " " " " " " a t l a l i a t l " " " " " " " "... - Page 12 Installation Manual 12...
- Page 20 SET TEMP MODE ON / OFF 1 COLD-9 COLDEST...
