Shenzhen Sungzu Technology Co., Ltd

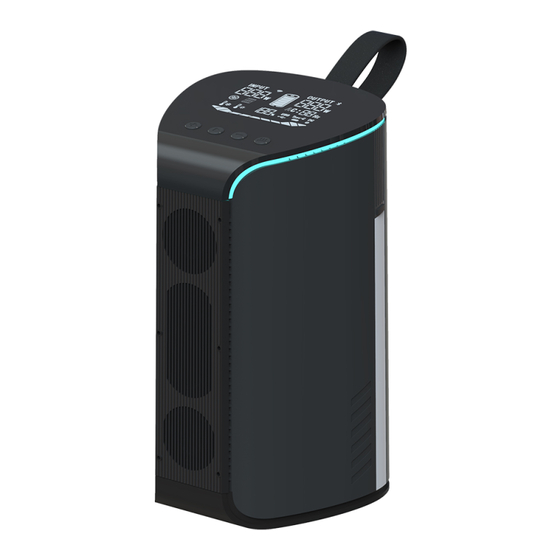

Product Name：music power station
Product Model:SKA700T
Product Brand：
Document number
Address：Block 1, Jiuhua Tech Park, Xingwei Rd, Bao'an District, Shenzhen, China
Website：www.sungzu.com
SKA700T
Product specifications
issuing
Edition
date
Phone/Fax：0755-29952902/29952903
execution
Auditing
Examine and
approve
Advertisement
Table of Contents
Summary of Contents for SUNGZU SKA700T
- Page 1 Shenzhen Sungzu Technology Co., Ltd SKA700T Product specifications Product Name：music power station Product Model:SKA700T Product Brand： issuing Examine and Document number Edition execution Auditing date approve Address：Block 1, Jiuhua Tech Park, Xingwei Rd, Bao'an District, Shenzhen, China Website：www.sungzu.com Phone/Fax：0755-29952902/29952903...
- Page 2 Shenzhen Sungzu Technology Co., Ltd Revised records Exami Editio execu Audit Revised content date tion appro Address：Block 1, Jiuhua Tech Park, Xingwei Rd, Bao'an District, Shenzhen, China Website：www.sungzu.com Phone/Fax：0755-29952902/29952903...
-
Page 3: Table Of Contents
Shenzhen Sungzu Technology Co., Ltd catalog 1. Product overview ............2 2. Product application ............3 3. Product structure ............3 3.1. Product Features ............3 3.2. Product Plan and Dimensions ..........4 4. Technical Parameters ............4 5. Functional description ............6 5.1. -
Page 4: Product Overview
Shenzhen Sungzu Technology Co., Ltd 1. Product overview This product is an outdoor recreation power station (multifunctional backup power supply, hereinafter referred to as this product), which is mainly composed of battery pack module, BMS module, inverter module, DC input/output module, audio module, etc. -
Page 5: Product Application
Shenzhen Sungzu Technology Co., Ltd 2. Product application 2.1. The application fields of this product include but not limited to: 2.2. Outdoor applications: camping, fishing, RV, self-driving, outdoor work, lighting, etc. 2.3. Industrial applications: instruments and equipment, instrumentation, testing devices, data acquisition, etc. -
Page 6: Product Plan And Dimensions
Shenzhen Sungzu Technology Co., Ltd 3.2. Product Plan and Dimensions length（mm） Width(mm) high(mm) weight(Kg) 180mm 183mm 320mm 6.1Kg 4. Technical Parameters Electrical Parameter Characteristics adapter 19Vdc / 4.74A/ 90W (MAX) solar panel 18Vdc～44Vdc/ 120W (MAX) product input 60W (MAX) bidirectional output voltage 220V±3% 50Hz/110V±3% 60Hz... - Page 7 Shenzhen Sungzu Technology Co., Ltd Conversion ≥92% efficiency Support 5V/3A,9V/3A, PPS/PD3.0/PD2.0/QC4+/QC4/QC3.0/QC2.0/A 12V/3A, FC/FCP /SCP/PE2.0/PE1.1/SFCP etc Type-C2(36W) agreement Conversion ≥92% efficiency Support 5V/3A,9V/3A, PD3.0/PD2.0/QC3.0+/QC3.0/QC2.0/AFC/FCP 12V/3A, Type-C1(60W 15V/3A, SCP/SFCP/Apple/DRP Try.SRC etc bidirectional 20V/3A agreement Conversion ≥93% efficiency battery 16V/31Ah (3.2V 155000mAh )
-
Page 8: Functional Description
Shenzhen Sungzu Technology Co., Ltd 5. Functional description Through the display, you can check the product power, input and output power, temperature, frequency and other information. 5.1. Charging capacity display When the product is connected to the charger for charging, the display will show the corresponding charging interface type icon and charging power, and the battery icon will increase.(for example, if the battery is... -
Page 9: Discharge Power Display
Shenzhen Sungzu Technology Co., Ltd fully charged. 5.2. Discharge power display 1) When the product is not charging, the display will display the current battery level; the 5 grid lights indicate that the battery level is 20%, 40%, 60%, 80%, and 100%. -
Page 10: Input Display
Shenzhen Sungzu Technology Co., Ltd 5.4. Input display Charging mode: DC 19V adapter, car adapter, 18V~44V solar panel, Type-C1 PD60W can be used to charge this product bidirectionally; the adapter and "Type-C1 PD60W bidirectional" can be used to charge at the same time, and the maximum power can reach 140W;... -
Page 11: Output Function
Shenzhen Sungzu Technology Co., Ltd 5.5. Output function ① DC12V output: click the "DC switch button" to turn on the DC12V DC output, the screen will display the DC output icon, output power, battery icon and power percentage, and the scene lights will run from the middle to both sides;... - Page 12 Shenzhen Sungzu Technology Co., Ltd ③AC output: Click the "AC switch button" to turn on the AC output, the screen will display the AC output frequency icon, output power, battery icon and battery percentage, and the scene lights will race from the middle to both sides;At this time, you can connect electrical equipment with AC...
-
Page 13: Audio Button Introduction
Shenzhen Sungzu Technology Co., Ltd ⑤ Charge while discharging: This device supports the function of discharging while charging. The display screen shows the same steps as 4.3- 4.4, the scene lights are running from the two sides to the middle, and the state of the colorful LED breathing lights.(As shown in the picture below) -
Page 14: Led Lighting Mode
Shenzhen Sungzu Technology Co., Ltd 5.7. LED lighting mode lighting Description effect monochrome The spectrum of monochrome running upwards, 2S cuts the spectrum next color, and the background color is white Colorful The spectrum running upwards, one light and one color, a... -
Page 15: Emergency Lighting Operating Instructions
Shenzhen Sungzu Technology Co., Ltd ② TWS mode on/off: Select two the machines, and press and hold the two "audio switch button" to start up, enter the Bluetooth waiting for connection state, double-click any one of the "sound switch button" to turn... -
Page 16: Product Electrical Characteristics
Shenzhen Sungzu Technology Co., Ltd 6. Product electrical characteristics 6.1. System Design Parameters term minimu standa maximum remark value value Short press the AC/DC/USB button to wake up the system and turn it on (light up the screen), and at the same time turn on the corresponding output;... -
Page 17: Usb Output Port
Shenzhen Sungzu Technology Co., Ltd 6.3. USB output port term minimum standard maximum remark value value Under the condition of no-load output, measure the voltage of the USB output port of the product (the length of the 5V no-load 4.70V 5.00V... - Page 18 Shenzhen Sungzu Technology Co., Ltd Rated conditions, set the bandwidth of the oscilloscope to 20MHz, connect the test 9V port output 140mV terminal with 10μF electrolytic capacitor ripple and 0.1μF ceramic capacitor in parallel In case of over-current protection, the...
-
Page 19: Dc5521 Output Port Parameters
Shenzhen Sungzu Technology Co., Ltd 6.4. DC5521 output port parameters term minimum standard maximum remark value value DC no-load The terminal voltage when the product is no-load and stable output output voltage Full load output The terminal voltage of the product 11.5V... -
Page 20: Type-C1 Output Port
Shenzhen Sungzu Technology Co., Ltd 6.5. Type-C1 output port term minimu standar maximu remark value value Under the condition of no-load output, measure the voltage of the USB output port 5V no-load output 4.75V 5.00V 5.25V of the product (the length of the discharge... - Page 21 Shenzhen Sungzu Technology Co., Ltd capacitor and 0.1μF ceramic capacitor in parallel In case of over-current protection, the 9V Overcurrent output is automatically turned off, and the 3.10A 3.40A 3.50A Protection output is automatically restored when the fault is removed.
- Page 22 Shenzhen Sungzu Technology Co., Ltd cores, and the diameter of a single copper core is 0.14mm) Under the condition of full output output, measure the voltage of the USB 15V full load output port of the product (the length 14.50V 15.00V...
-
Page 23: Type-C2 Output Port
Shenzhen Sungzu Technology Co., Ltd In case of over-current protection, the 20V overcurrent output is automatically turned off, and the 3.10A 3.40A 3.50A protection output is automatically restored when the fault is removed. When the output is short-circuited, the 20V Output Short... - Page 24 Shenzhen Sungzu Technology Co., Ltd Under the condition of no-load output, measure the voltage of the USB output port 9V no-load output 8.55V 9.00V 9.45V of the product (the length of the discharge voltage line is 30cm, 20pcs copper cores, and the diameter of a single copper core is 0.14mm)
- Page 25 Shenzhen Sungzu Technology Co., Ltd In case of over-current protection, the 12V overcurrent output is automatically turned off, and the 3.0A 3.20A 3.40A protection output is automatically restored when the fault is removed. When the output is short-circuited, the 12V Output Short...
-
Page 26: Ac Output Port Parameters
Shenzhen Sungzu Technology Co., Ltd 6.7. AC output port parameters term minimum value standard maximum remark value Rated output Input voltage range 12.5~18V, 215Vac 220Vac 225Vac voltage rated resistive load sine output waveform Rated resistive load wave Output frequency 49.5Hz 50Hz 50.5Hz... -
Page 27: Battery Pack Parameters
Shenzhen Sungzu Technology Co., Ltd 6.8. Battery Pack Parameters term minimum standard maximum remark value value Battery Type 155000mAH Single cell 15500mAH Rated voltage 5 in series 5*3.2V battery capacity 496WH Protection board Charge and discharge same port control mode... -
Page 28: Audio Parameters
Shenzhen Sungzu Technology Co., Ltd 6.9. Audio parameters bluetooth parameters BP1048B1 bluetooth chip Dual-mode Bluetooth V5.0, compatible with Bluetooth V4.2 and V2.1+EDR bluetooth version Support Bluetooth Piconet and Scatternet networking protocols Support PLC/A2DP/AVRCP/HFP/HSP/OPP/HID/SPP/ bluetooth protocol Protocols such as PBAP/GATT/SM ≤9dBm(EIRP) transmit power 2400-2483.5MHz... -
Page 29: Product Actual Test
Shenzhen Sungzu Technology Co., Ltd 7. Product actual test 7.1. Test items Check item Test Results Test items Test Conditions 1. The appearance is high Appearance not deformed Pressure≤=11.6Kpa, T =20±5℃ 2. No altitude packaging, no electricity 2. Power 2. Electrical work is... -
Page 30: Basic Functional Test Display
Shenzhen Sungzu Technology Co., Ltd 7.2. Basic Functional Test Display 7.2.1. Special Equipment Test machine Machine remark Test items use power run time internal state temperature Resistive 700w 33 mins normal Battery 50℃ 7.2.2. High temperature environment load test Test tools: professional equipment testing... - Page 31 Shenzhen Sungzu Technology Co., Ltd 7.2.5. Household Appliances Test Machine machine internal device name rated power run time Remark state temperature egg steamer 350w 66mins normal Battery 45℃ 6hours normal Battery 25℃ 7.2.6. Structural component reliability requirements test Test equipment...
-
Page 32: Product Packaging
Shenzhen Sungzu Technology Co., Ltd 1. No visible damage to the AC connector 2. After the test, the maximum pull-out force: 3PIN should be less than 70N to fall off, and the minimum pull-out force Insert&unp 2000times AC output terminal... -
Page 33: Packing Dimensions And Specifications
Shenzhen Sungzu Technology Co., Ltd 8.2. Packing Dimensions and Specifications Carton size and weight length 34.5cm width 25.5cm height 40.8cm weight 7.6Kg 9. Product handling and transportation Pallet size and weight length 110cm width 100cm height 204cm Number of 50PCS... -
Page 34: Product Troubleshooting And Troubleshooting
Shenzhen Sungzu Technology Co., Ltd 11.Product troubleshooting and troubleshooting Phenomenon Cause Solution The internal battery has no No response to pressing any output/or the product is Charge the product button completely out of power and is in a protected state... - Page 35 FCC Warning This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any inte rference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
