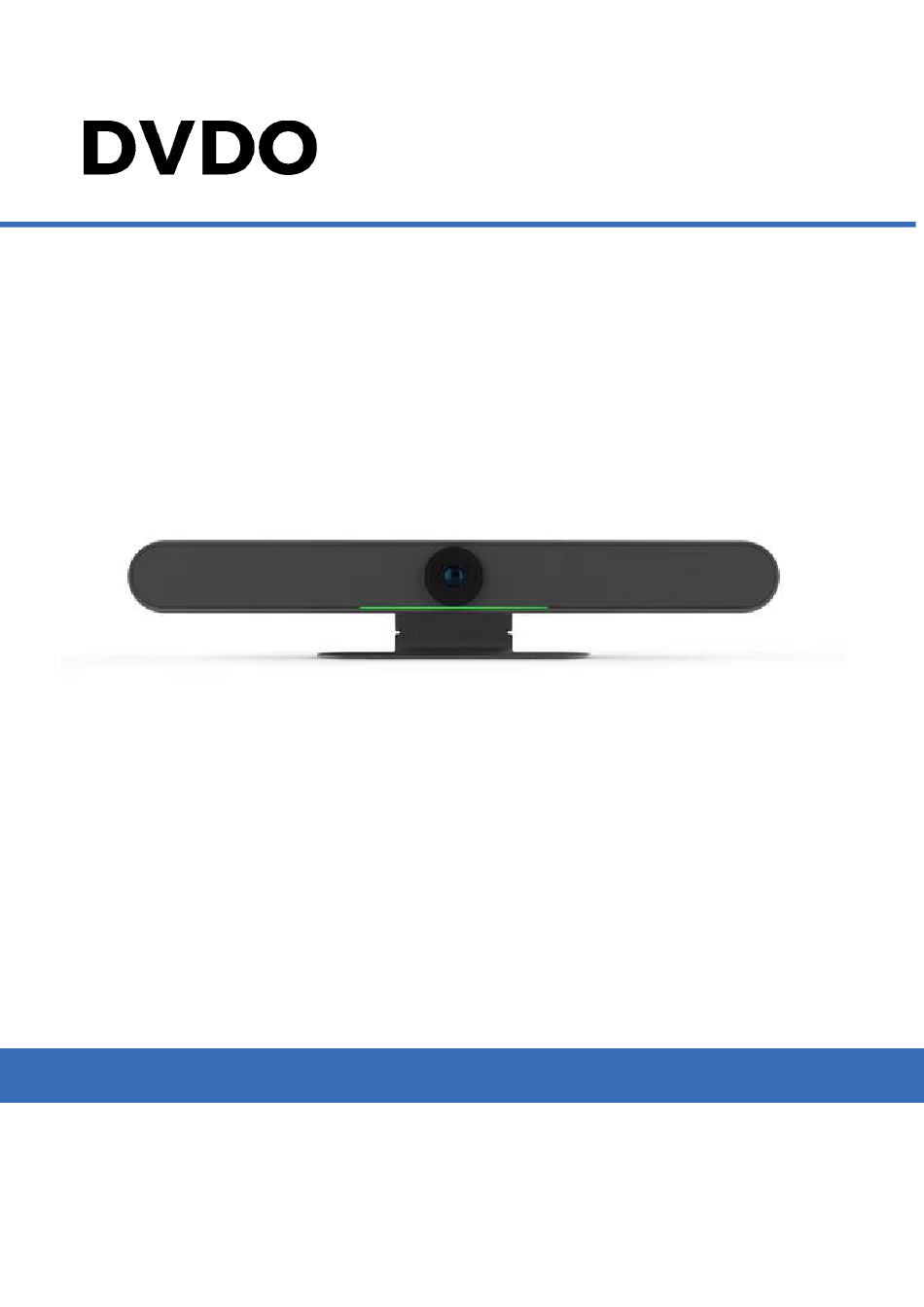

- Page 1 DVDO-C6-1 Intelligent 4K All-in-One Video Bar User Manual Version: V1.0.0...
- Page 3 Attention This manual introduces functions, installations and operations for this product in details. Please read this manual carefully before installation and use. Precautions: This product can only be used in the specified conditions in order to avoid any damage to the camera: 1）...
-
Page 4: Table Of Contents
Contents Quick Start ........................4 1.1 Interfaces ......................4 1.2 Device Startup ..................... 4 1.2.1 Power on ..................... 4 1.2.2 Statue Indicator Light .................. 4 1.3 Video Output ....................... 5 1.4 Audio Input ......................5 1.5 Audio Output ....................... 5 Product Overview ....................... -
Page 6: Video Output
1.3 Video Output 1. USB：Connect device to Pcs through USB cable, and open the video software to select device to output. 2. HDMI：Connect device to monitor through HDMI cable, and then select the correct input source on the monitor to output. 1.4 Audio Input 1. -
Page 8: Product Features
2.2 Product Features With all-in-one design, this device has 4K UHD camera, microphone array, high fidelity speaker and electric privacy cover. Boasting powerful functions like face recognition, voice localization, voice tracking, and intelligent noise reduction, this product could automatically adjust the image size according to the number of participants to present the optimal frame. -
Page 9: Technical Specification
2.3 Technical Specification 120° （ D ） /106° （ H ） / 72° （ V ） Iris F2.0 Lens Focal 1.89mm Length Digital Zoom Sensor High quality CMOS sensor, effective pixel 8 million, 16:9 Minimum 0.5Lux Illumination 2D ﹠ 3D Focus Auto/Manual Camera... -
Page 10: Remote Control
Pickup 6 meters Distance Frequency 120 Hz–16 kHz Response Speaker Built in dual speaker Voltage 2*10W Output Speaker Voice 80±3 dB 1.0M/1.0W Pressure Frequency 100 Hz-20 KHz Response AEC, AGC, ANS Audio Processing Automatically adjust the screen size according to the number of Group Framing participants to present the best framing AI Function... - Page 11 While displaying the working status, it can also be lit where the Bar-shaped Indicator speaker's voice comes from. Indicator Can be connected to a mobile phone or other device via Bluetooth Bluetooth 5.0 Bluetooth as a Bluetooth microphone and speaker Compatibility Available System Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android...
-
Page 13: Menu Setting
Reject the incoming call Volume up/down Set/call out preset #1 (Long press 3 sec to set preset, short press to call out preset) Set/call out preset #2 (Long press 3 sec to set preset, short press to call out preset) Zoom in/out 3.2 Menu Setting 3.2.1 Main Menu... - Page 14 1) Language Move arrow to (Language), and press【← →】to change the option 2) Setting Move arrow to (Setting), and press【HOME】to enter the exposure interface. Setup ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Image Style Default Auto Framing Close Auto Framing Sen Medium Voice Location Close Locatiom Sen Medium Max Framing Locate Mode...
- Page 15 Voice Tracking: on/off Voice Tracking Sen: high/medium/low Locate Mode: Smart mode/pan mode/movie mode/discussion mode Prompt Info: On/off Menu Mirror: On/off Transfers Mode: Bulk/synchronization 3) Exposure Move arrow to (exposure), press【HOME】to enter exposure interface. EXPOSURE ＝＝＝＝＝＝＝＝＝＝＝＝＝ Mode Auto Flicker 50Hz G.Limit [↑↓]Select [←...
- Page 16 BLC: On/off ( only available in auto mode) Anti-Flicker: 50Hz, 60Hz, off (only available in auto, iris priority, bright priority mode) Gain Limit: 0 – 15(only available in auto, iris priority, bright priority mode) Dynamic Range: 1 – 8, off Shutter Priority: 1/30, 1/50, 1/60, 1/90, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/1000, 1/2000, 1/3000, 1/4000, 1/6000, 1/10000(only available in manual, and shutter priority mode)
- Page 17 AWB Sensitivity：High/medium/low(only Hue：0～8 available in auto mode) 5) Image Move arrow to (image), and press【HOME】to enter image page. IMAGE ＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Brightness Contrast Sharpness Flip-H Flip-V B&W-Mode Color Gamma Default Low-Light Mode Close [↑↓]Select [← →]Change Value Brightness：0～14 Contrast：0～14 Sharpness：0～15 Flip-H：On/off Flip-V：On/off B&W-Mode：Color/B&W Gamma：Default, 0.34,...
- Page 18 NOISE REDUCTION ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ NR-2D NR-3D [↑↓]Select [← →]Change Value 2D NR：Auto, manual 1～7 3DNR：Off, 1～8 7) Version Move arrow to (version) VERSION ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Camcra Version 1.0.0 2020-12-16 Audio Version 1.0.0 2022-5-19 alue 8) Restore Default Move arrow to (restore default), and press【HOME】to enter RESTORE DEFAULT page.
-
Page 19: Maintenance And Troubleshooting
RESTORE DEFAULT ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Restore Default? Restore default: Yes/no (color style and video format cannot be restored) 4. Maintenance and Troubleshooting 4.1 Maintenance 1）If the camera will not be used for a long time, please turn off the power switch. 2）Use a soft cloth or lotion-free tissue to clean the camera body. 3）Use a soft dry lint-free cloth to clean the lens. - Page 20 Copyright Notice The entire contents of this manual, whose copyright belongs to our company may not be cloned, copied or translated in any way without the explicit permission of the company. Product specifications and information referred to in this document are for reference only and as such are subject to updating at any time without prior notice...
