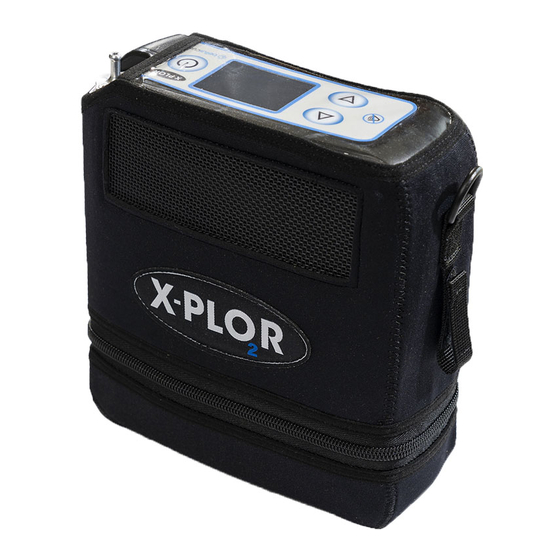

Belluscura X-PLOR RES50051 Instructions

Backpack Instructions
1
Disconnect the cannula and remove
the X-PLOR from the
small carrying bag, if applicable.
3
Pull on ring to open the front pocket, so
you can place the X-PLOR inside.
(Be sure that the LCD screen is facing up, the
cannula connector is located on the right side, and
the intake vent aligns with the mesh panel.)
5
Continue threading the cannula down
through the backpack, toward the X-PLOR.
(Pull the cannula out through the grommet so it can
connect to the X-PLOR.)
Turn sheet over to continue to step 2.
PART 1
Placing X-PLOR
2
Place backpack on a flat
surface with the front pocket
and ring facing up.
4
Insert and thread the cannula
through the opening at the top
of the right shoulder strap.
6
Connect the cannula
By:
in Backpack.
®
to the X-PLOR.
XPLORoxygen.com
