Summary of Contents for Finevideo FV-DVP-704S

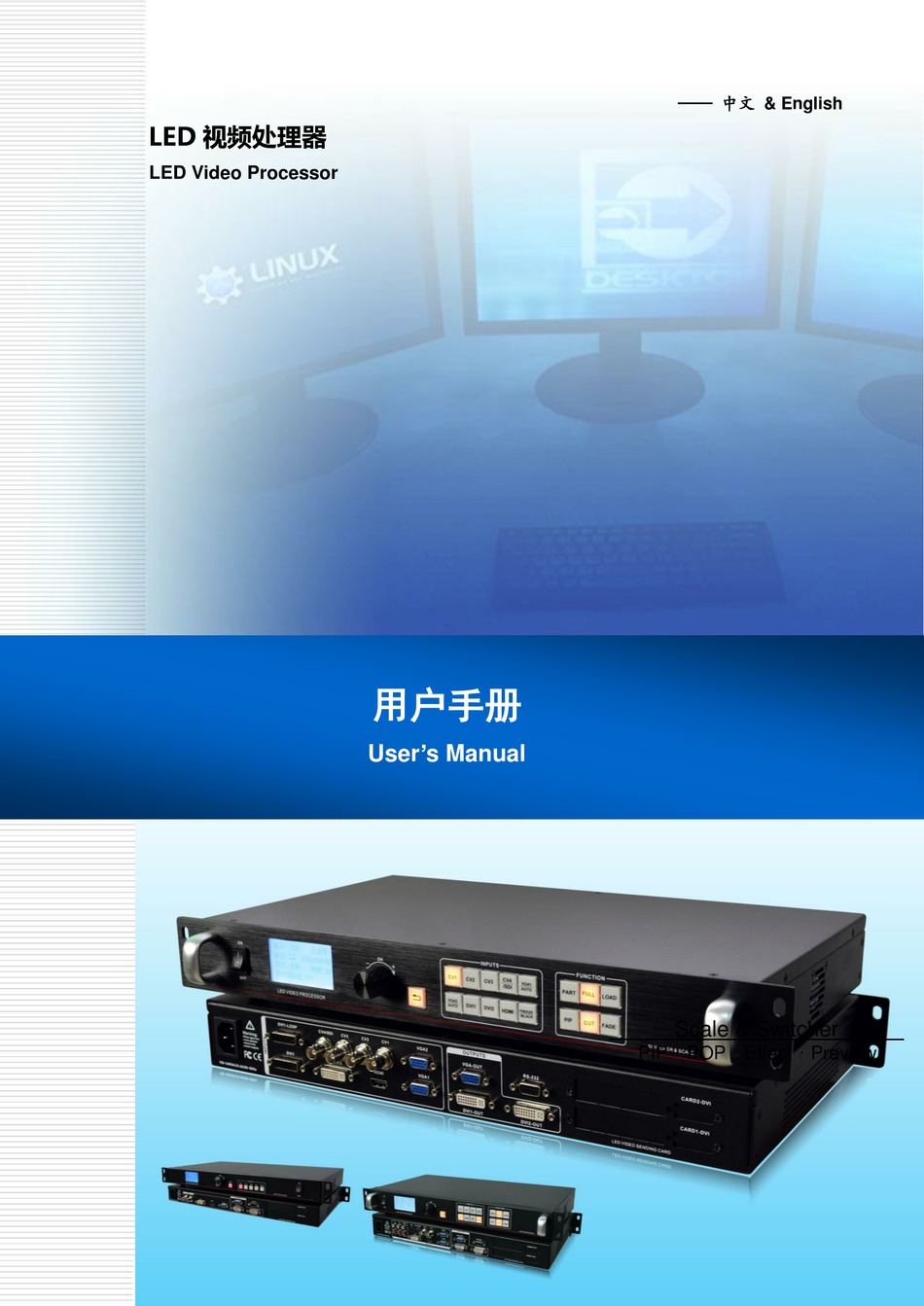

- Page 1 —— 中文 & English LED 视频处理器 LED Video Processor 用户手册 User’s Manual Scale & Switcher PIP POP Effect Preview...
- Page 2 Introduction This manual contains information about how to use, install and configure the LED video processor, in addition, also relates to knowledge LED video processor and LED video systems. Users are LED video processor, please read this manual in detail. About LED Video Processor LED video processor is a mid-market seamless handover effects video processor, it supports high definition digital input, analog HD input, analog SD input, audio input.
- Page 3 Support PIP - PIP technology unaltered state in the original image, the other input of the same or different overlay images. LED Video Processor PIP function, not only can be adjusted overlay size, location, borders, etc. You can also use this feature to achieve Picture outside Picture (POP), dual-screen display.
- Page 4 Panel Rear Panel Figure 1-Video processor rear panel ① AC power input - using IEC standard power cable video processor, the input power is 100-240 VAC, 50-60Hz. ② video input - processor can receive digital video signals, the analog video signal, a CVBS video signal, the following criteria for each input interface.
-
Page 5: Front Panel
Front Panel Figure 4-Front Panel ① LCD display - Display menu and current information. ② Menu operation buttons - Menu operation keypad with "Return key" ,Knob "confirm and adjust." The following are included on each key. ● button, Exit key, or return to the previous menu. ●... - Page 6 Figure 6—Function ● PART button: Part of the screen display mode, the user settings menu, good splicing interception parameters section of the screen, press this button part of the screen to display the results. In the following sections a detailed description of the operation. ●...
-
Page 7: Menu System
Menu System Menu Structure Default menu Main menu Function Description Set the output resolution, precise adjustment of the OUTPUT output resolution Adjustment splice, equal splice or unequal or parts of SPLICE the image display Set PIP size, position, the input source IMAGE Adjust image color, brightness, contrast, etc. -
Page 8: Setting And Operation
Default menu The default menu after the device starts, LCD screen interface, shown above, the input source, the input source connected state, the input source is connected, the output resolution, mosaic mode, brightness and output audio channels and other information, shows the processing the main parameters menu system. -
Page 9: Output Resolution
Output Resolution Using different resolution display or LED screen, to achieve point-to-point output, it is necessary to set the output resolution and the resolution of precise adjustment. 1. select a larger than screen resolution Default Menu → Main Menu →OUTPUT → Output resolution→ confirmed 2. - Page 10 achieve frame synchronization. There introduce it’s equal splicing and unequal Equal Splicing For example the following parameters of the LED screen wall Device Name Specification Parameter Other LED unit P3.9 Resolution 128x128 LED screen 20x16 unit Resolution 2560x2048 Support resolution LED sending card 1280x1024 LED Video...
- Page 11 PANEL1 PANEL2 PANEL3 PANEL4 CAT5 CAT5 CAT5 CAT5 DVI-OUT DVI-OUT DVI-OUT DVI-OUT DVI-INPUT Figure 13-Equal Splicing Steps: 1. Refer to Figure 13 for all connected devices. 2. LED screen software will adjust PANEL1 ~ PANEL4 respectively into four separate display area. (For details, please refer to the relevant suppliers of LED system operation) 3.
- Page 12 Processor P3：Splice position Default Menu → Main Menu →SPLICE→Parameters→Position→3 Processor P4：Splice position Default Menu → Main Menu →SPLICE→Parameters→Position→4 NOTE: splicing synchronization open, cut and fade function is disable. Unequal Splicing For example the following parameters of the LED screen wall Device Name Specification Parameter...
- Page 13 PANEL1 PANEL2 PANEL3 PANEL4 CAT5 CAT5 CAT5 CAT5 DVI-OUT DVI-OUT DVI -INPUT Figure 14-Unequal Splicing Steps: 1.Refer to Figure 14 Connect all devices. 2.Sending card S1 and S2 cascade, S3 and S4 cascade. Respectively adjustment LED screen software PANEL1 and PANEL3 into a complete display area, PANEL2 and PANEL4 set another full display area. (For details, please refer to the relevant suppliers of LED system operation) 3.Are provided P1 ~ P2 video processor parameters.
- Page 14 Processor P2： 1.Setting resolution Default Menu → Main Menu → OUTPUT →Resolution→1280x720 60Hz Default Menu → Main Menu → OUTPUT→Width→1280 Default Menu → Main Menu → OUTPUT→Height→896 2. Setting splice Default Menu → Main Menu →SPLICE→ MODE →V-Wall Default Menu → Main Menu →SPLICE→ Pattern →Unequal Default Menu →...
- Page 15 PIP is the use of digital technology to display two programs on the same screen. That is the normal viewing of the main screen, while the insertion of one or more sub-picture compressed in order to appreciate the main screen while monitoring other channels. When operating in PIP mode mode, the user must provide at least two of the input signal, and the PIP menu settings accordingly.
- Page 16 Figure 16A-PIP Chanel 16B-Main Chanel 16C-Output Setting step： Default Menu → Main Menu → PIP → PIP mode→Keying Default Menu → Main Menu → PIP→Keying Setup→ Input→ DVI Default Menu → Main Menu → PIP→Keying Setup→ Chroma Key→ Black Preset Preset is to facilitate users to use quickly recall commonly used in a variety of scenarios, reducing the user when the operation is repeated complicated settings, improve work efficiency.
-
Page 17: Brightness And Contrast
quickly, prompting the user to press the flashing CUT or FADE button switch. NOTE: The same type of signal can not be pre-selected, otherwise it will prompt "invalid channel!" Conflict pre-selected signal PIP input signal and the same conflict, a detailed check list of the PIP conflict. Brightness and Contrast Processor technology unique brightness, contrast adjustment, adjust color reproduction and high brightness after the picture level without loss. -
Page 18: Specifications
Video processor provides eight channels of video and 4 audio, there are three-way external audio input and 1 channel audio input HDMI audio. So switching to a set of audio output. Follows Set the current corresponding audio and video channels. In the default menu, use the ↑ and ↓ buttons to toggle IN1 ~ IN3, HDMI, a total of 5 off the total state. - Page 19 Quantity Connector Signal Standard Analog audio DVI/VGA Outputs Quantity 2 DVI、1VGA Connector DVI-I、DB15 Signal Standard DVI：DVI1.0 VGA：VESA 1024×768@60Hz 1920×1080@60Hz 2304×1152@60Hz 1280×720@60Hz 1920×1200@60Hz 2560×816@60Hz 1280×1024@60Hz 1024×1280@60Hz Resolutions 1280×720@50Hz 1440×900@60Hz 1536×1536@60Hz 1920×1080@50Hz 1600×1200@60Hz 2048×640@60Hz 1024×1920@60Hz 1680×1050@60Hz 2048×1152@60Hz Whole machine 3.0kg Case size：（LWH）253×440×56 Size（mm）...
- Page 20 DVI 视频输入...
