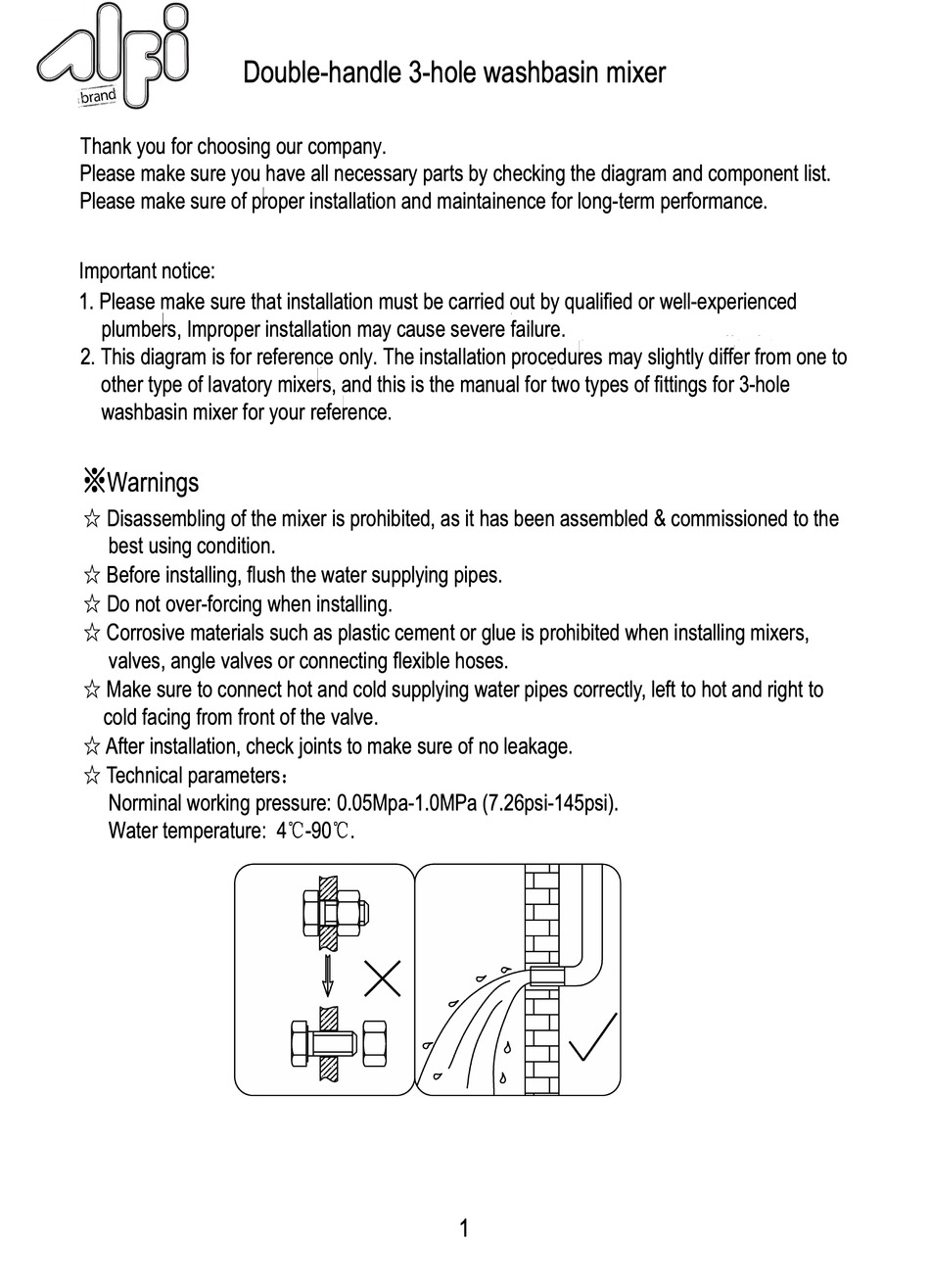

alfi AB1782-BN Manual

Thank you for choosing our company.
Please make sure you have all necessary parts by checking the diagram and component list.
Please make sure of proper installation and maintainence for long-term performance.

Important notice:

1. Please make sure that installation must be carried out by qualified or well-experienced
plumbers, Improper installation may cause severe failure.
2. This diagram is for reference only. The installation procedures may slightly differ from one to
other type of lavatory mixers, and this is the manual for two types of fittings for 3-hole
washbasin mixer for your reference.

*Warnings

*
Disassembling of the mixer is prohibited, as it has been assembled & commissioned to the
best using condition.
*
Before installing, flush the water supplying pipes.
*
Do not over-forcing when installing.
*
Corrosive materials such as plastic cement or glue is prohibited when installing mixers,
valves, angle valves or connecting flexible hoses.
*
Make sure to connect hot and cold supplying water pipes correctly, left to hot and right to
cold facing from front of the valve.
*
After installation, check joints to make sure of no leakage.
*

Technical parameters:

Norminal working pressure: 0.05Mpa-1.0MPa (7.26psi-145psi).
Water temperature: 4
Double-handle 3-hole washbasin mixer
° °
C-90 C.
1
