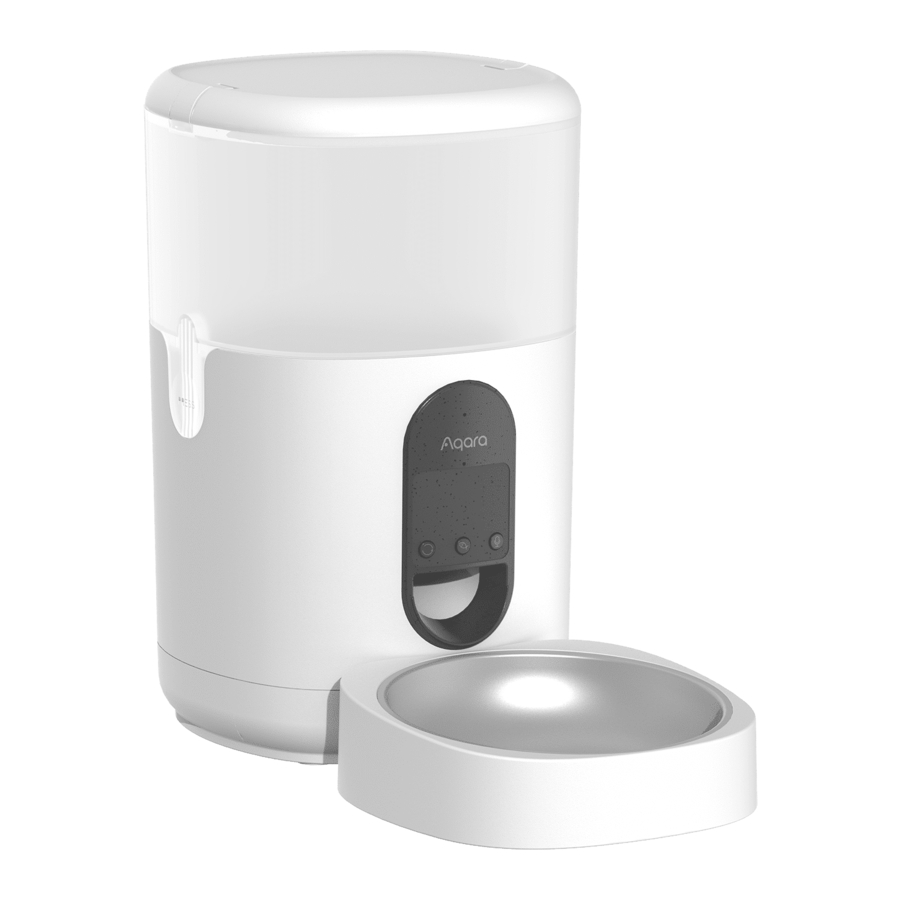

Aqara Smart Pet Feeder C1 - Automatic Feeder for Cats and Dogs Manual

Product Description

With the Aqara Smart Pet Feeder C1 equipped with Zigbee wireless communication protocol, you can feed your pet at scheduled times and portions by our app no matter where you are.

* An Aqara Zigbee 3.0 hub is required. Some functions require support of specific hubs. For more details, please see: www.aqara.com/support.

What's in the Box

• Smart Pet Feeder C1 × 1
• USB Cable × 1
• Stainless Steel Bowl × 1
• Plastic Bowl × 1
• Desiccant × 1

Preparation Before Use

1. A smart phone or a tablet (with iOS or Android system) that can be connected to Wi-Fi or cellular network.
2. An Aqara hub that supports Zigbee 3.0.
3. 5V1A USB-A power supply such as a wall outlet or charging adapter.
4. Scan the QR code to download the Aqara Home app.

5. Take the desiccant out of the plastic bag and put it into the desiccator slot in the lid.
6. Pour the dry pet food into the food bucket.

*Note:

1. Particle diameter of dry pet food should be limited within 2-12mm.
2. This product is designed for pet cats and small and medium-sized dogs aged three months and older.
3. The smart pet feeder can only store dry food. It cannot store wet food or mixing wet and dry food.
4. It is recommended to place the feeder against the wall and away from tables, chairs and other furniture to reduce the risk of the feeder being knocked over by the pet.

Device Binding & Initialization

1. This product requires an Aqara Zigbee 3.0 hub. Please add the hub to the app according to the corresponding manual.
2. Click "+" in the upper right corner of the home page in the app to enter the "Add Accessory" page. Select "Smart Pet Feeder C1" and the hub to be connected, and follow the instructions on the app. Hold the reset button for 5 seconds, and then the hub will be connected.

Device Setting

Click the "..." in the upper right corner in the home page of the device to adjust the settings of the feeding plan, child lock, etc.

Power Supply

1. Please use the adapter to supply power to the feeder under normal circumstances.
2. The Smart Pet Feeder C1 can also work with dry batteries. Please open the battery cover at the bottom and put in batteries. In case of any power failure, the batteries can ensure the power supply.
3. Dry batteries need to be purchased separately. Three D batteries (LR20 alkaline batteries) are required.
4. When the device is powered by dry batteries, the indicator light will stay off to save energy, but other functions still work as usual.

*Note:

1. Different types of batteries or new and used batteries are not to be mixed.
2. Insert batteries in the correct polarity as indicated in the battery compartment.
3. Non-rechargeable batteries are not to be recharged.
4. Waste batteries should be recycled in line with the local laws and regulations. Do not dispose of them at will to avoid pollution.
5. If the appliance is to be stored unused for a long period, the batteries should be removed.
6. The supply terminals are not to be short-circuited.
7. Exhausted batteries are to be removed from the appliance and safely disposed of.

Food Bucket Cleaning

Press the clips on both sides of the food bucket, and you can take it out to clean.

Note: please do not rinse the lower part of the device to avoid any device failure.

Button Operations

Product Specifications

Aqara Smart Pet Feeder C1
Color	White
Model Number	PETC1-M01 (PET – Products for pets, C-Care series, M01 – First motorized product)
Dimensions	193×193×312 mm
Rated Current	1A
Rated Voltage	5V
Operating Temperature	-10~45℃ (14°F ~ 113°F)
Operating Humidity	0-95% RH, without condensation
IC	22635- PETC1M01
Wireless Protocol	Zigbee IEEE 802.15.4 (acts as a router/repeater)
FCC ID	2AKIT-PETC1M01

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Zigbee Warnings

• Zigbee Operation Frequency: 2405-2480 MHz
• Zigbee Maximum Output Power ≤ 13 dBm

Under normal use of condition, this equipment should be kept a separation distance of at least 20cm between the antenna and the body of the user.

SAFETY INFORMATION

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children without supervision.
4. It must only be supplied at safety extra low voltage corresponding to the marking on the appliance.

Online Customer Service: www.aqara.com/support
Customer Support Email: support@aqara.com
Website: www.aqara.com
Manufacturer: Lumi United Technology Co., Ltd.
Address: Room 801-804, Building 1, Chongwen Park, Nanshan iPark, No. 3370, Liuxian Avenue, Fuguang Community, Taoyuan Residential
District, Nanshan District, Shenzhen, China
Made in China
