Heat pump mode
Fast heating mode (hybrid heating mode)
Electric heater mode
Defrost mode
Fan running indication
Lock indication
Timer on/Timer off icon
Clock
The setting value of water temperature
The current value of water temperature

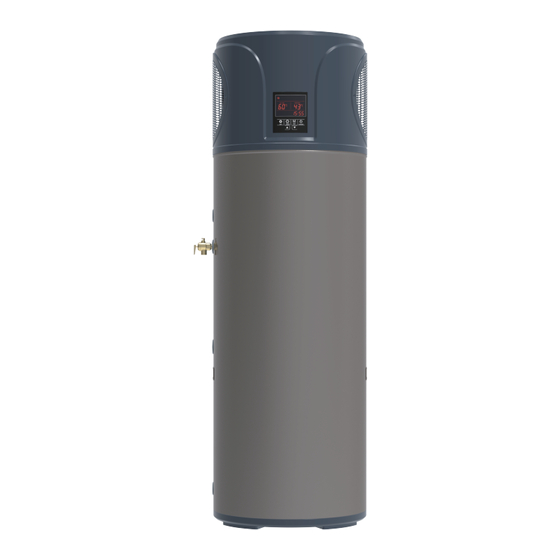

Full Package
PTR valve
Tempering valve
Tube joint
1
PTR valve
2
Water outlet
3
E-heater
4
Temp. sensor
Condensate Drainage
5
Overflow
6
7
Water inlet
Manual
Manual
Condensate
tube
1
2
3
4
5
6
7
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Smart Lifestyle SLA-R18-190D/N3A4
Summary of Contents for Smart Lifestyle SLA-R18-190D/N3A4

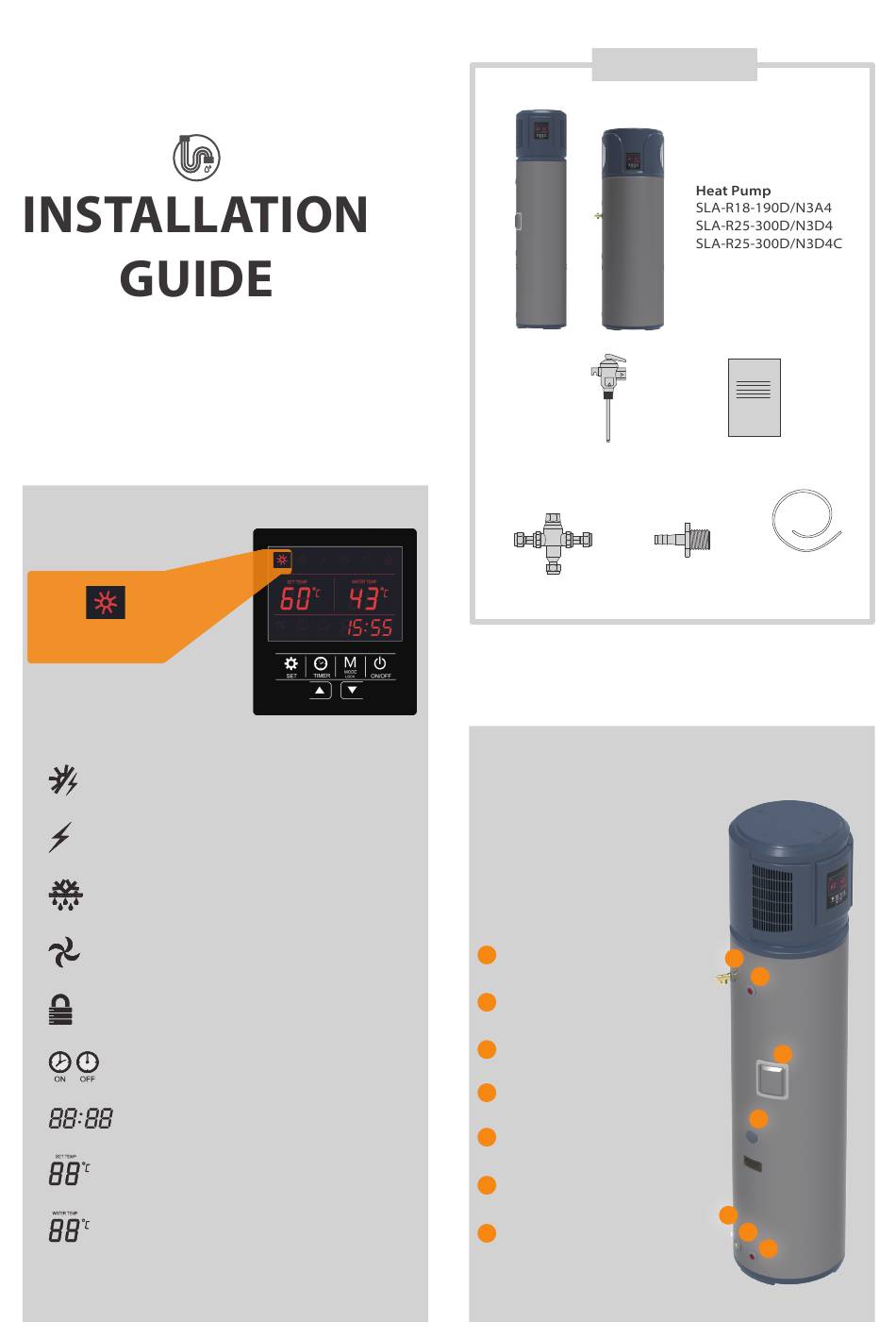

- Page 1 Full Package Manual PTR valve Manual Condensate Tempering valve Tube joint tube Heat pump mode Fast heating mode (hybrid heating mode) Electric heater mode Defrost mode Fan running indication PTR valve Water outlet Lock indication E-heater Timer on/Timer off icon Temp.
- Page 2 Position the heat pump on a flat sturdy surface. Fix the tube joint and fit the condensation tube to the overflow port. Finally, run it to suitable location. Connect cold water inlet. Connect hot water outlet and PTR valve. Joint connect cold water pipe, hot water pip and temper- ing valve.
- Page 3 Position the heat pump on a flat sturdy surface. Fix the tube joint and fit the condensation tube to the overflow port. Finally, run it to suitable location. Connect cold water inlet. Connect hot water outlet and PTR valve. Joint connect cold water pipe, hot water pip and temper- ing valve.
- Page 4 Top clearance is primarily a maintenance rather than operational requirement. If top clearance is reduced future mainte- nance (if required) cost may increase due to need to move and then return unit to original position. Enclosed room installation SLA-R18-190D/N3A4: the minimum area = 25m SLA-R25-300D/N3D4, SLA-R25-300D/N3D4C: the minimum area = 32.5m Unit dimension...
