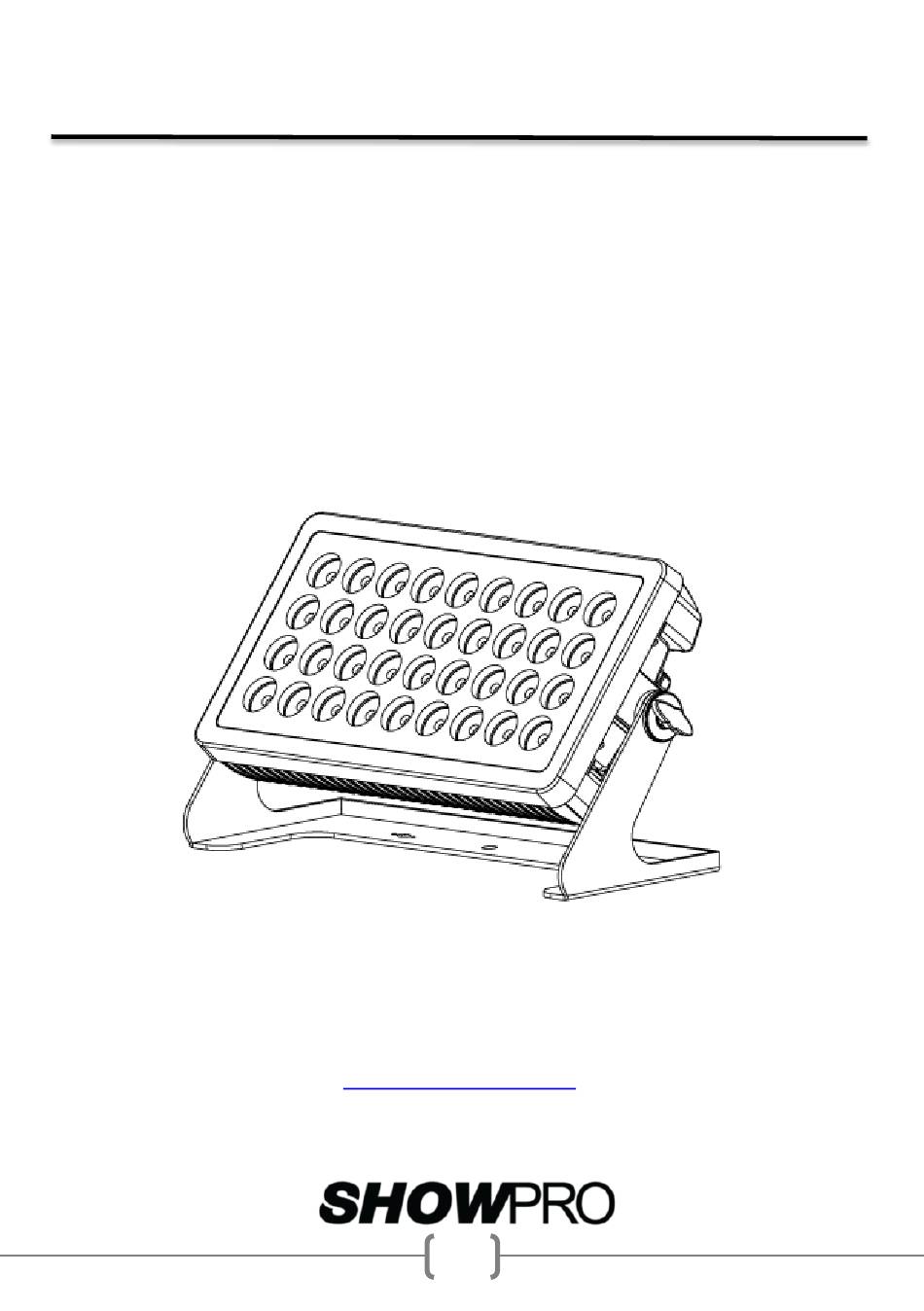

- Page 1 HEX36 User Manual www.showtech.com.au...
-
Page 2: Table Of Contents
HEX36 Table of Contents 1. Safety instructions…………………………………………………………3 1.1 Power Connection ………………………………….……………….4 1.2 Overhead Rigging …………………………………………………...4 1.3 DMX Connection ……………………………………………………..6 1.4 Cleaning and Maintenance ………………………………………6 2. Menu Navigation .…………………………………………………………7 3. DMX Allocation….………………………………………………………….9 4. Technical Specifications ……………………….……………………….12... -
Page 3: Safety Instructions
NO USER SERVICABLE PARTS INSIDE. If unit is out of service, please contact your point of purchase. If any troubles arise, remove the power plug and contact your ShowPro representative for repair. Do not open the machine by yourself, it might result a danger of electric shock. -
Page 4: Power Connection
HEX36 1.1 Power Connection AC Power This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC AC Plug Connection Wire AC Live Brown AC Neutral Blue AC Ground Green/Yellow 1.2 Overhead Rigging This item must be built in a way that it can hold 10 times more of its weight for 1 hour without causing any damage. - Page 5 HEX36 CAUTION: Overhead Items may cause serious injuries when not installed correctly!! If there is concern about the safety DO NOT INSTALL the device. DANGER OF FIRE! When installing the device, make sure there is no highly-flammable material (decoration articles, etc.) within a distance of min. 0.5m.
-
Page 6: Dmx Connection
HEX36 1.3 DMX Connection DMX Linking the HEX36 will work with a DMX controller using a 5-pin DMX serial connection. DMX Connection the HEX36 uses IP Rated 5-pin DMX data connections for its DMX personalities: 6 Ch, 8 Ch, 12Ch. See the User Manual for information about connecting and configuring the product for DMX operation. -
Page 7: Menu Navigation
HEX36 2.0 Menu Navigation Menu （Default 12CH，d 1） 6 - Channel d512 8 - Channel d512 12 - Channel d512 Default：C63 C -- **** **** （Default：P1） P -- （Default：S100） S -- S--1 S100 0 （Default：RGBAWP=255） U --... - Page 8 HEX36 GREEN BLUE AMBER WHITE Dimmer speed OFF: （Default：OFF） Dimmer DIM1 Dimmer speed Mode1(Fast) DIM2 Dimmer speed Mode1(Middle) DIM3 Dimmer speed Mode1(Slow) Temperature （Default：ON） 10 Password If setting pass word to “On”，need to press “UP，DOWN，UP，DOWN，ENTER” to release; if press wrong, pls press enter to input again.
-
Page 9: Dmx Allocation
HEX36 3.0 DMX Allocation 6-CH Function Value Setting 000-255 0~100% Green 000-255 0~100% Blue 000-255 0~100% Amber 000-255 0~100% White 000-255 0~100% 000-255 0~100% 8-CH Function Value Setting Dimmer 000-255 0~100% 000-255 0~100% Green 000-255 0~100% Blue 000-255 0~100% Amber... - Page 10 HEX36 011-255 Strobe slow to fast 000-010 No Function 011-030 R 100%, G 0~100%, B 0% 031-050 R 100%~0%, G 100%, B 0% 051-070 R 0%, G 100%, B 0~100% 071-090 R 0% G 100%~0% B 100% 091-110 R 0%~100% G 0%...
- Page 11 HEX36 Function Value Setting Auto Speed 000-255 Speed Slow to Fast Function Value Setting Dim Mode 000-051 Preset dimmer speed from display menu 052-101 Dimmer speed mode off 102-152 Dimmer speed mode1 (fast speed) 153-203 Dimmer speed mode2 (middle speed)
-
Page 12: Technical Specifications
HEX36 4.0 Technical Specifications OPTICS LED Specification 12W RGBWAUV 6 in 1 LEDs LED quantity Field Angle 22° Beam Angle 35 ° Output 1699 lux @ 5 meters Control Control method WDMX Compatibility DMX Channels 6,8 and 12 Dimming Curves... - Page 13 HEX36 Physical Weight 14.3Kg Size 593x303x212 Cooling System Fan-free convection cooled IP Rating IP64...
