Washing Machine
Fully Automatic
Read This Manual
Use all instructions and explanations of the
installation before use. Follow the instructions
carefully. Keep the operation instructions
handy for later use. If the application is sold or
passed on then ensure that the new owner
always receives those operation instructions.
USER MANUAL
MODEL:
MAE180-2404TPS/01FM
Advertisement
Table of Contents
Related Manuals for Midea MAE180-2404TPS/01FM
Summary of Contents for Midea MAE180-2404TPS/01FM
- Page 1 Use all instructions and explanations of the installation before use. Follow the instructions carefully. Keep the operation instructions handy for later use. If the application is sold or passed on then ensure that the new owner always receives those operation instructions. MODEL: MAE180-2404TPS/01FM...
- Page 2 The usage of detergent and washing powder.....
-
Page 3: Safety Instructions
− farm houses; − by clients in hotels, motels and other residential type environments; − bed and breakfast type environments; − areas for communal use in blocks of flats or in launderettes. Washing Capacity Standard Water Pressure Model 18.0kg MAE180-2404TPS/01FM 0.03MPa~0.8MPa... - Page 4 SAFETY INSTRUCTIONS Explanation of the symbols: Warning! This combination of symbol and signal word indicates a potentially dangerous situation which may result in death or serious injuries unless it’s avoided. Caution! This combination of symbol and signal word indicates a potentially dangerous situation which may result in slight or minor injuries or damage to property and the environment.
- Page 5 SAFETY INSTRUCTIONS Warning! The electric shock! • This appliance is for indoor use only. • Do not put washing machine at humid place. • Hands shall not be inserted into running spin-dry tub . • If the spin-dry tub does not stop within 15 seconds after opening the cover , please stop using the machine and have it repaired.
- Page 6 SAFETY INSTRUCTIONS • Remove all packages before using the appliance. Otherwise, serious damage may result. • The washing machine with single inlet valve only can be connected to the cold water supply. The product with double inlet valves should be correctly connected to the hot water and cold water supply.
- Page 7 SAFETY INSTRUCTIONS 1.Transport bolts shall be reinstalled to the machine by a specialized person. 2.The accumulated water shall be drained out of the machine. 3.Handle the machine carefully. Never hold each protruded part on the machine while lifting. Machine door can not be used as the handle during the conveyance.
-
Page 8: Installation
INSTALLATION Product description Water inlet valve Top lid Frame Power case and plug Control panel Handle Cabinet Adjustable foot knob Drain hose Note! • The product line chart is for reference only, please refer to real product as standard. Accessories Inlet hose ass Cabinet baseboard Manual... -
Page 9: Unpacking The Washing Machine
INSTALLATION Packing the washing machine Unpacking the washing machine ！ Warning! • Packaging material (e.g. Films, Styrofoam) can be dangerous for children. • There is a risk of suffocation ! Keep all packaging well away from children. 1. Remove the cardboard box and styrofoam packing. 2. -
Page 10: Levelling The Washing Machine
INSTALLATION The installation of drain hose Clamping spring Drain hose inserted into the drain Warning! Warning! • Do not kink or protract the drain hose. • Position drain hose properly ,otherwise damage might result of water leakage. • If drain hose is too long, do not force it into washing machine as it will cause abnormal noises. -
Page 11: Selection Of Tap
INSTALLATION Selection of tap Please select appropriate tap. Ordinary faucet Screw tap Special washing machine tap Connection of inlet hose, tap and washing machine 1:Connection between ordinary tap and inlet hose. Wall Clamp nut 1.Loosen clamp nut to 2.Loosen four bolts 3.Set connecting base 4.Tighten clamp nut on tap and tighten... -
Page 12: Preparation Before Washing
OPERATIONS Preparation before washing Caution! • Before washing, please make sure it’s installed properly. • Before washing it at first time, the washing machine shall be operated in one round of the whole procedures without clothes in as follows. Open tap Plug in Add detergent Load and close door... -
Page 13: Washing Matters Needing Attention
OPERATIONS Washing matters needing attention • The working condition of the washer should be(0-40)℃.If used under 0℃,the inlet valve and draining system may be damaged. If the machine is placed under condition of 0℃or less, then it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose are not frozen before use. -
Page 14: Control Panel
OPERATIONS Control panel Note! • The chart is for reference only, Please refer to real product as standard. On/Off Start/Pause Product is switched on or off. Press the button to start or pause the washing cycle. Program Option Available according to the laundry type. This allows you to select an additional function and will light when selected. - Page 15 OPERATIONS Option Only for washers having these function Water level Select water level according to clothing categories, degree of soiling and washing habits of customers. Wash /Rinse /Spin Washing time, rinsing times, spinning time and other settings can be selectable. Function Combination of soaking, washing, rinsing and spinning light is available.
-
Page 16: Personalized Setting Of Washing Program
OPERATIONS Personalized setting of washing program Customers can select washing program according to actual demand, and set rinsing times water volume and appointment time Program Function Rinse Temp. Start Water Level Delay Operations of washing process Customers can set single process or combinations of washing,rinsing and spinning freely according to demand. -
Page 17: Washing Program Table
OPERATIONS Washing program table Program are available according to the laundry type. XXXX XXXX Only for washers having these function. XXXX XXXX XXXX XXXX Program XXXX XXXX Suitable to wash Jeans stained/wearable clothes. Jeans Suitable to wash light stained clothes and clothes in summer. Quick 15' The tempo is soft, slow washing and spinning speed, to make the lightest Soft... -
Page 18: Maintenance
MAINTENANCE Cleaning and care Warning! • Before your maintenance starts, please unplug the machine and close the tap. Cleaning the cabinet Proper maintenance on the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. If there is any water overflow, use the wet cloth to wipe it off immediately. -
Page 19: Cleaning Drain Pump Filter
MAINTENANCE Cleaning drain pump filter Only for washers having these function Warning! • Be careful of the hot water! • Allow detergent solution to cool down. • Unplug the machine to avoid electrical shock before washing. • Drain pump filter can filter the yarns and small foreign matters from the washing. -
Page 20: Troubleshooting
MAINTENANCE Trouble shooting The start of the appliance does not work or it stops during operation. First try to find a solution to the problem, If not, contact the service centre. Inspection Items Description If the power is off or the fuse is burned out. If the power supply voltage is too low. -
Page 21: Technical Information
MAINTENANCE Technical information Power Washing Dimension Rated Model Capacity Weight Supply (W*D*Hmm) Power 53kg 220-230V~,50Hz 18.0kg 640x684x1024 600W MAE160-2404TPS/01FM-PA 24 10... - Page 22 物料编码...
Need help?
Do you have a question about the MAE180-2404TPS/01FM and is the answer not in the manual?
Questions and answers

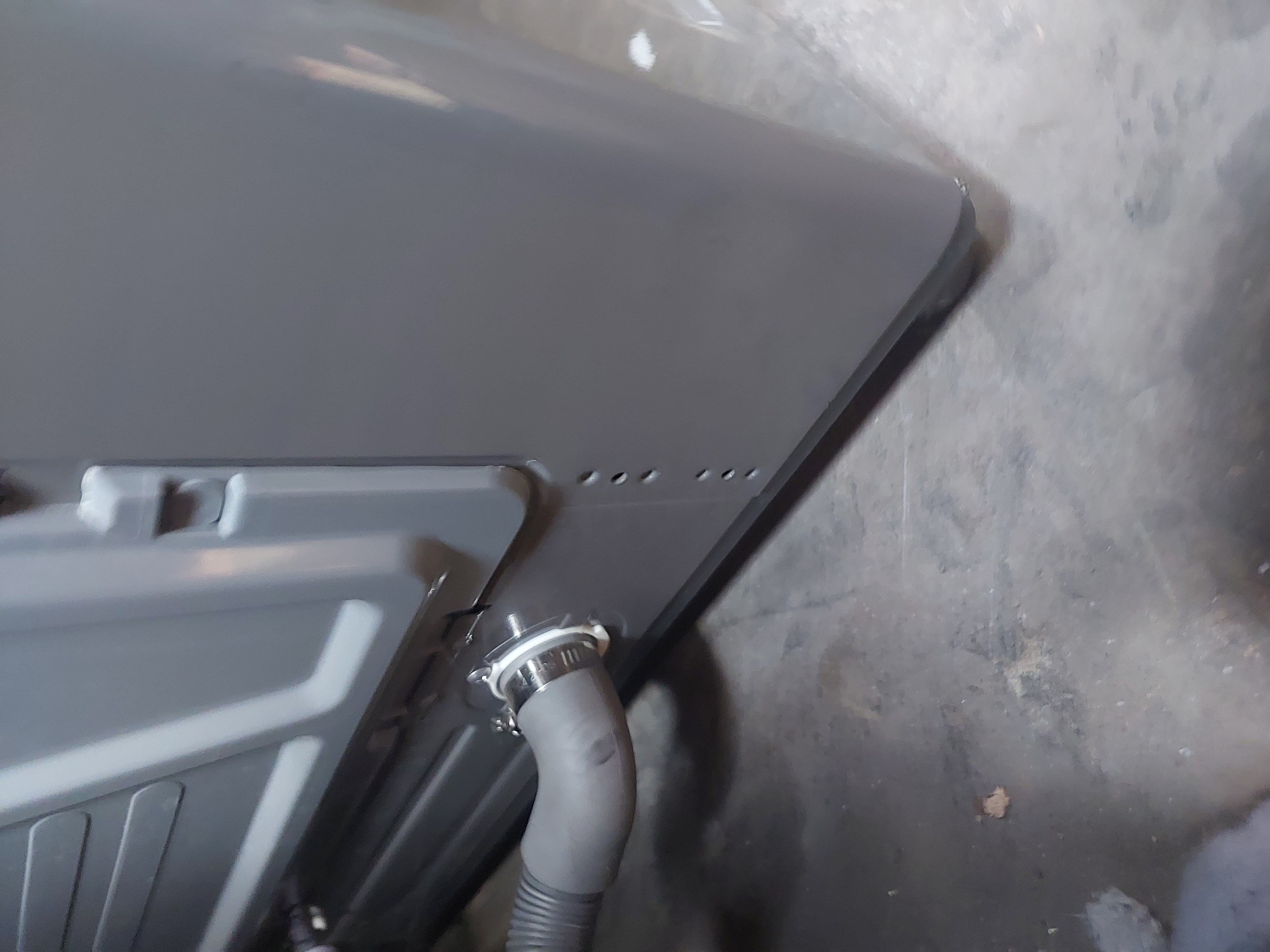

The drain pump is not where it shows on manual, where can I find the drain pump?
