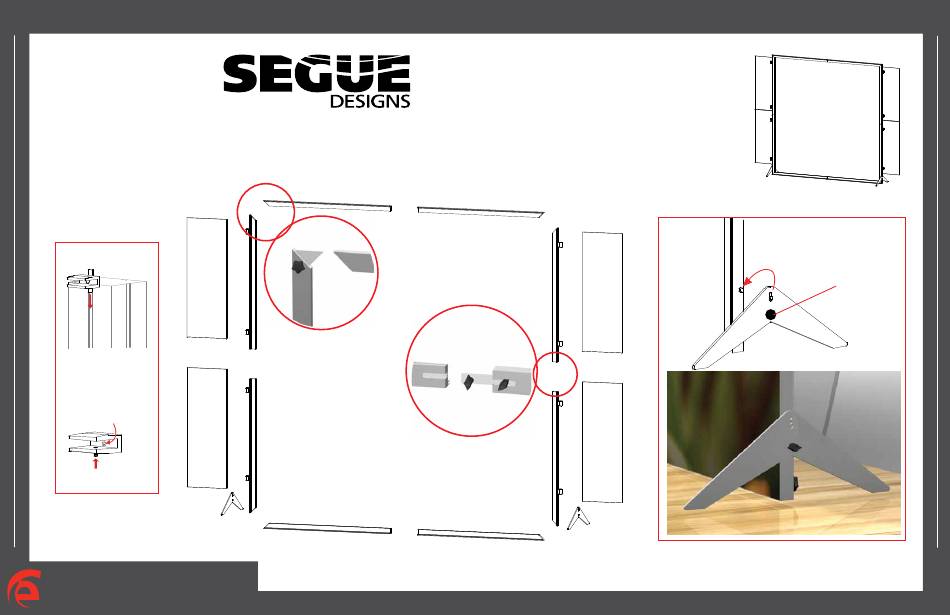

Order #XXXXX VK-1906 - Graphic Frame Assembly
Item
Description
1
45" SEG Extrusion
2
45" SEG Extrusion
3
45" SEG Extrusion
4
45" SEG Extrusion
5
45" SEG Extrusion
6
45" SEG Extrusion
7
45" SEG Extrusion
8
45" SEG Extrusion
A10 Clamp Attachment
Slide connector on back
of A10 clamp into groove
of extrusion.
When desired location
is found, tighten
set screw to secure.
Tighten knob to
secure shelf in place.
w w w . c l a s s i c e x h i b i t s . c o m
7
Corner
2
Tighten knob
to secure
1
5
WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL
SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING
Setups:
1) Assembled SEG extrusions together on floor.
2) Apply SEG graphic to assembled frame.
3) Attach feet to both sides of assembled frame
where indicated.
4) Attach wing panels to A10 clips as shown.
**** See attached SEG graphic
installation for graphic attachment
8
4
Center
Slide connecting
bar between
verticals/horizontals
and tighten knob
to secure
3
6
Step 1
866.652.2100
Foot Attachment
Hook keyhole cut
out up bolt
Tighten Knob to secure
© 2012
