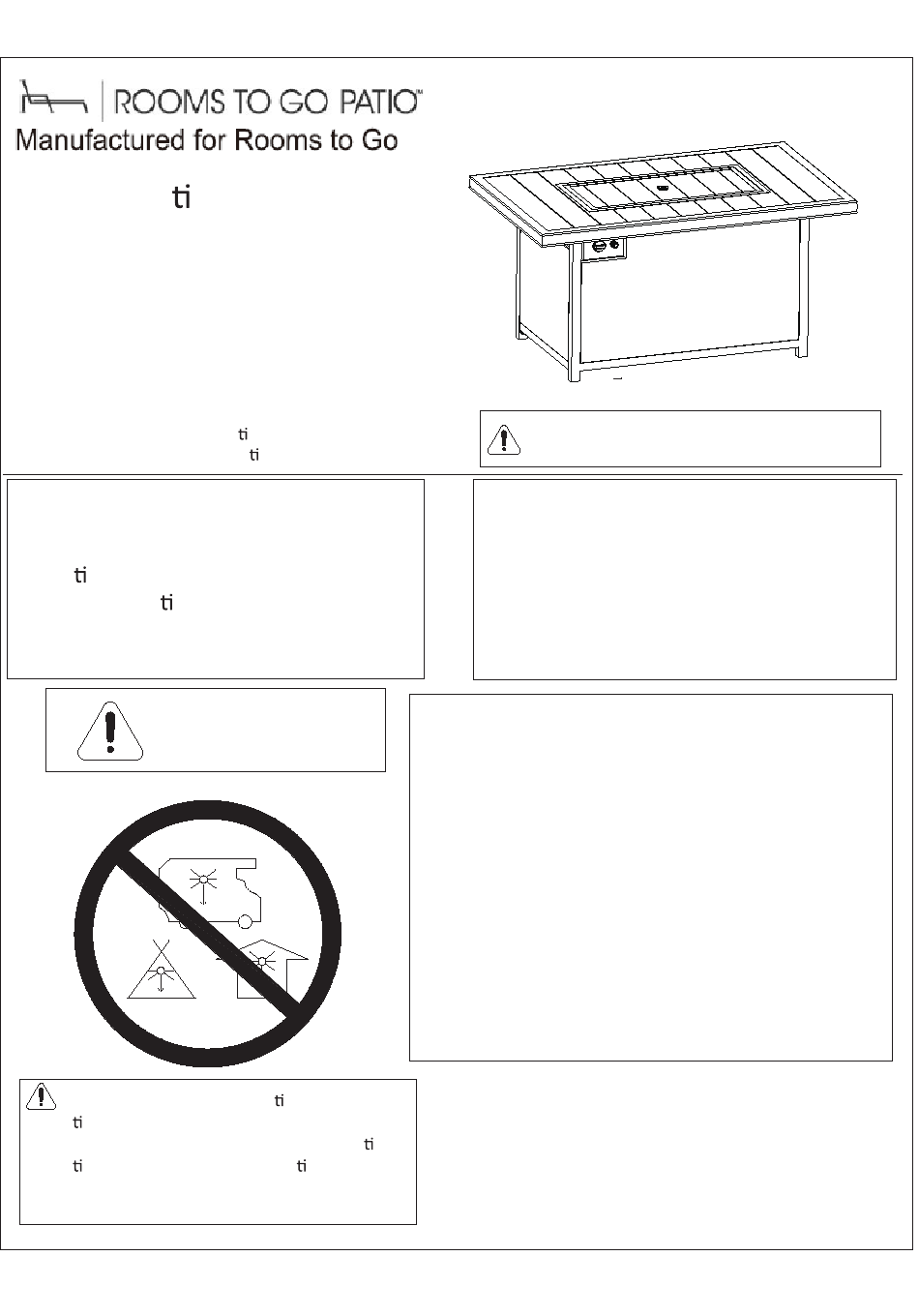

Mon cello
SKU#79861538
GL2AF- 6
JWUA
Installer: Leave these instruc on with consumer.
Consumer: Keep these instruc on for further reference.
DANGER
If you smell gas:
1.Shut off gas to appliance .
2.Ex nguish any open flame.
3.If odor con nues, keep away from
the appliance and immediately call
your gas supplier or fire department.
WARNING
WARNING: Improper installa on, adjustment,
altera on, service or maintenance can cause
injury or property damage. Read the installa on,
opera ng, and maintenance instruc ons
thoroughly before installing or servicing this
equipment.
pit
Fire
-488
30507
CARBON MONOXIDE HAZARD
This appliance can produce carbon
monoxide which has no odor .
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed
space such as a camper, tent, car or
home.
WARNING: For Outdoor Use Only
WARNING
Do not store or use gasoline, or other
flammable vapors and liquids, in the
vicinity of this or any other appliance.
An LP-cylinder not connected for use
shall not be stored in the vicinity of this
or any other appliance.
1
