Summary of Contents for Connect CSH-FLCAM-1

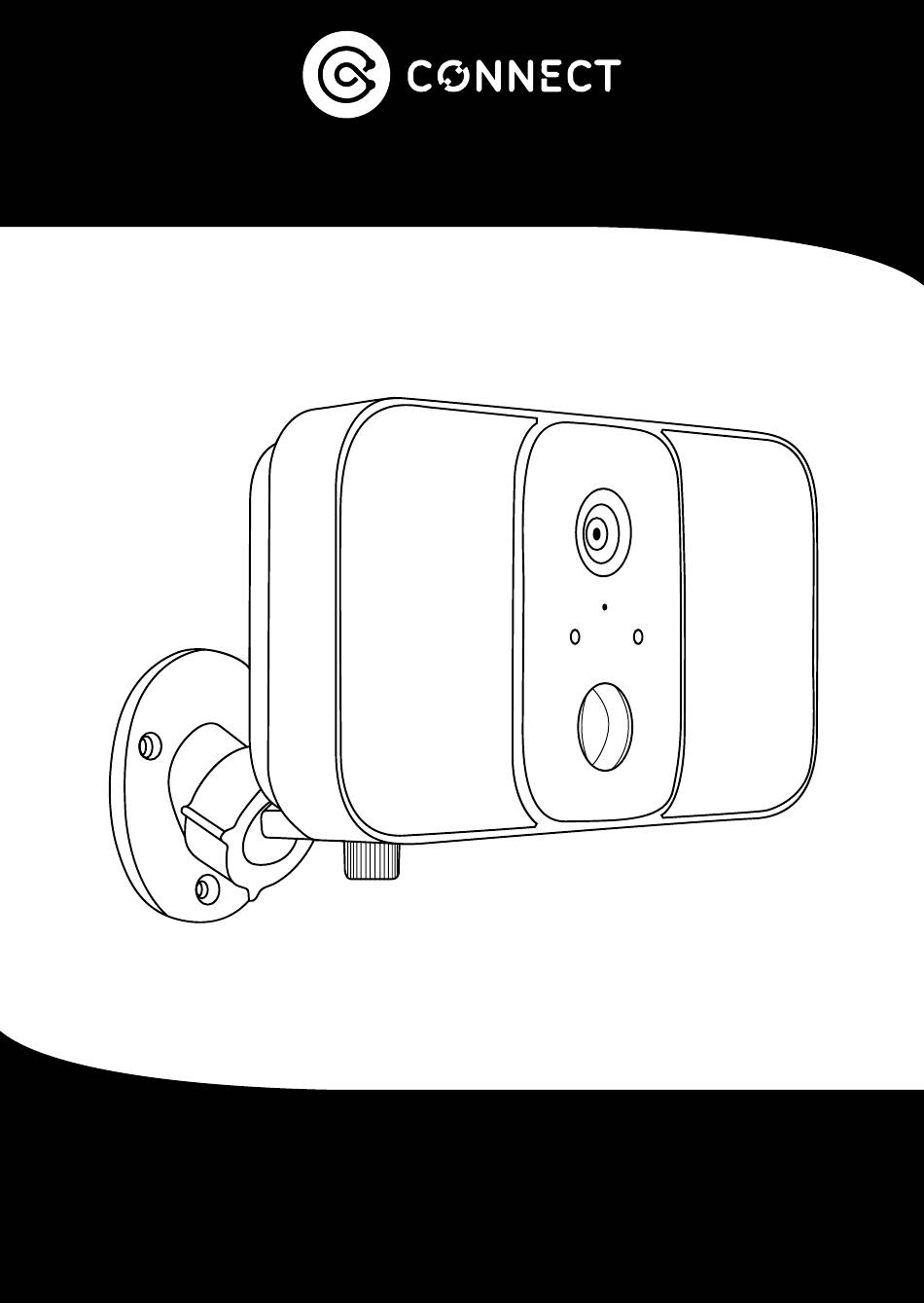

- Page 1 User Manual Floodlight Camera CSH-FLCAM-1...
-
Page 2: What's In The Box
WHAT’S IN THE BOX • Floodlight Camera • Mounting Bracket • USB Cable • Wall Mount Screw Set • User Manual... -
Page 3: Specifications
SPECIFICATIONS 1/3” Color CMOS Image Sensor: 1920x1080p @ 15 frames per second Display Resolution: 2.8mm Focal Length: Viewing Angle: 6pcs 850nm LED, IR distance up to 8m LED: 400 LUX Spotlight: H.264 Image Compression: DNR: 3D Digital noise reduction WDR: Digital wide dynamic range Built-in Microphone &... -
Page 4: Product Diagram
PRODUCT DIAGRAM Light Sensor Lens Indicator Light PIR Sensor Microphone ON/OFF Button SD Card Slot USB Charging Port Reset Mounting Hole... - Page 5 Reset Button Controls • Press and hold for 10 seconds to reset the camera. • A LED indicator light will start flashing. There are 2 flashing states: • Fast Flashing = QR and EZ pairing mode. • Slow Flashing = AP pairing mode. Note: In this manual we cover the QR pairing mode instructions.
-
Page 6: Getting Started With The App
Getting Started with the App 1. Install the Connect SmartHome App for your Smartphone from the iOS App Store or Google. 2. Log in with an existing Connect SmartHome account or create a new account. -
Page 7: Connecting To The App
Connecting to the App 1. Press and hold the “RESET” button on the Floodlight Camera till you get a fast-flashing light. 2. Open the Connect SmartHome App and tap the “+” icon to add a device. - Page 8 Connecting to the App continued... 3. Select the “Camera & Lock” category on the left, then select “Smart Camera (Wi-Fi)”. 4. Enter your Wi-Fi details.
- Page 9 Connecting to the App continued... 5. On the next screen tap the option in the top right and select “QR Code”. 6. Select the checkbox, then tap Next.
- Page 10 Connecting to the App continued... 7. On the next screen you will need to hold the QR Code on the App towards the camera lens on the Floodlight Camera. A tone will be heard when done correctly. Tap “I Heard a Prompt” to continue. Tip: Move the QR code on the phone away, then towards the camera lens a few times so that it...
- Page 11 Connecting to the App continued... 9. When finished pairing tap “Done”, then the device will appear on the Connect SmartHome App home screen. NOTE: If you are unable to pair successfully with the Floodlight Camera, please check your Wi-Fi password and make sure you are only using a 2.4GHz...
-
Page 12: Camera Controls
Camera Controls Camera Switch Settings Between HD & SD Zoom Resolution Camera Audio Battery Charging Status Microphone Fullscreen More Mode Options Record Take Photo Video... - Page 13 Camera Controls continued... Playback Recorded Switch Media on Between Connected Light & Dark Smartphone Theme Playback Recorded Turn Night from Micro Vision SD Card ON/OFF Switch Between Turn 50 & 60Hz Floodlight Modes ON/OFF Turn Check Notifications Alarm Siren such as Motion ON/OFF Detection Alerts etc.
- Page 14 Micro SD Card & Motion Detection • A Micro SD Card installed in the camera will allow your camera to automatically take a video when motion is detected (PIR Motion Detection must be turned on). • Without a Micro SD Card, your camera will only take photos when motion is detected (PIR Motion Detection must be turned on).
- Page 15 Adding Connect SmartHome to the Google Home App • Open the Google Home App. • In the “Google Home” main screen, select the “+” icon to set up device.
- Page 16 Adding Connect SmartHome to the Google Home App continued... • Select “Set up device” to add new device, then select “Works with Google”.
- Page 17 Adding Connect SmartHome to the Google Home App continued... • A list will appear showing actions and a search function to access more apps: from here, search for the Connect SmartHome App.
- Page 18 Adding Connect SmartHome to the Google Home App continued... • Log into your Connect SmartHome account with your email address. • Once linked, it will show the devices linked to your account: you can assign them to rooms. You will be prompted to authorize apps to sync.
- Page 19 Tips for Safe Charging Many devices these days come with built-in batteries or can use rechargeable batteries to help reduce waste. Here are some handy tips which will help prolong your batteries and provide a safe environment when charging. Avoid overcharging •...
- Page 20 Tips for Safe Charging continued... Charge only on non-flammable surfaces • Devices and chargers can get warm or sometimes even hot during charging. Make sure to always place the device and charger on a non-flammable surface when charging. Do not place on beds, pillows, paper, or near any fabric such as curtains or clothing under any circumstances.
-
Page 21: Troubleshooting
TROUBLESHOOTING The Floodlight Camera video feed is not loading. • Make sure your smartphone and the Floodlight Camera are connected to the same Wi-Fi connection. • Check the distance between the Floodlight Camera and your Wi-Fi router. Any obstructions such as walls and ceilings will reduce the range of your Wi-Fi signal. - Page 22 • Check the Wi-Fi password you are using is correct. If unsure, try connecting another device to the same Wi-Fi network using that password. If that device fails to connect also then you may be using an incorrect password. • When scanning the QR code move the QR code on the phone away, then towards the camera lens a few times so that it can detect it properly.
- Page 23 TROUBLESHOOTING continued... Can I use Connect SmartHome on my computer? • The Connect SmartHome App is only designed to work on Smartphones and Tablets that use the Apple App store and the Google Play Store.
- Page 24 Visit our website www.connectsmarthome.com.au Check us out at...
