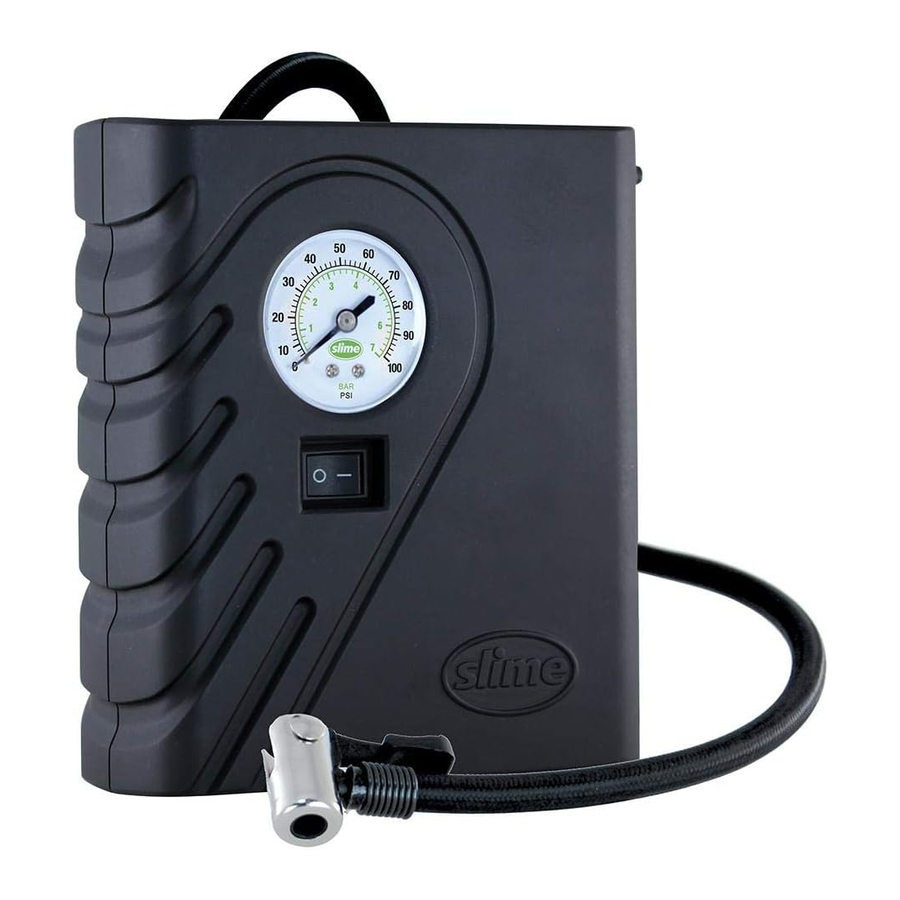

Slime 40060 - Compact Tire Inflator Portable Car Air Compressor Manual

OVERVIEW

LIGHT

• Bright LED
• For night-time emergencies

STORAGE ON BACK

• Inflatables adapters snap-in-place for easy access

DIAL GAUGE

• Measures PSI/BAR

POWER SOURCE

• Plugs into 12V power outlet

TECH SPECS

* (0-35 PSI, Standard Tire: P195/65 R15)
** (@ 0 PSI/BAR)

INFLATE TIRES

1. Place connector on air valve stem and push down.

2. Close thumb latch connector to secure to valve.

3. Plug power cord into power outlet receptacle.

4. Turn on inflator and when proper pressure is reached, turn off inflator, unplug power cord and remove connector.

   *NOTE: Correct tire pressure can be found in vehicle owner's manual or on driver's side door jamb.

USING THE ADAPTERS

To unlock the hammerhead valve, pull handle upward, then place in adapter and push down to lock in adapter.

TROUBLESHOOTING

1. Check the power plug and push it firmly into the receptacle, twist back and forth.
2. Check receptacle and plug terminals for dirt, or debris. (Use a non-conductive probe, not fingers or metal).
3. Check vehicle power outlet fuse. It should be 15 amps minimum.
4. C heck the fuse. It may have blown: 12V fuse is located in the plug adaptor: unscrew the tip, remove fuse, and inspect. If necessary, replace fuse with 15A 250V (5mm x 20mm).


Inflator runs but does not inflate:

1. Be sure the air hose valve connector is fully secured on the tire valve.
2. Check tire for leaks, and check hose for breaks and leaks at fittings.
3. Check valve core for damage.

Inflator runs slowly:

1. The inflator may be overheated from excessive use. Shut if off and allow to cool for 25 minutes.
2. Voltage too low. Check condition of vehicle battery.

NOTE: If tire is totally deflated, it is possible that the tire could separate from the rim allowing air to leak out when trying to inflate. In the event this occurs, you will have to jack up the tire prior to inflation.

Dispose of this product at an e-waste recycling collection point or facility.
Do not place in the trash or standard recycling receptacle.

SAFETY

FAILURE TO FOLLOW INSTRUCTIONS CAN RESULT IN FIRE, PERSONAL INJURY OR PROPERTY DAMAGE.

• DO NOT OVERINFLATE!
• HOT
• DO NOT HOLD IN HAND WHILE OPERATING
• PLACE INFLATOR ON A HARD, CLEAN SURFACE.

1. DO NOT run vehicle while inflator is operating. You may need to be in "accessory" or "on" position. Please make sure emergency brake is set and car is in park.
2. Keep inflator out of reach of children.
3. DO NOT use inflator continuously for more than 10 minutes. Allow unit to cool approximately 25 minutes between uses. Do not leave inflator unattended.
4. Soft inflatables (i.e. rafts, balls, etc.) may not have recommended pressure markings. Be careful not to inflate items beyond their capacity.
5. While operating, never block the inflator input or output.
6. For use with 12 volt DC power outlets rated 15 amps or higher. Do not use with older 8 amp cigarette lighter receptacles.
