Powerness U1500 - Portable Power Station Manual

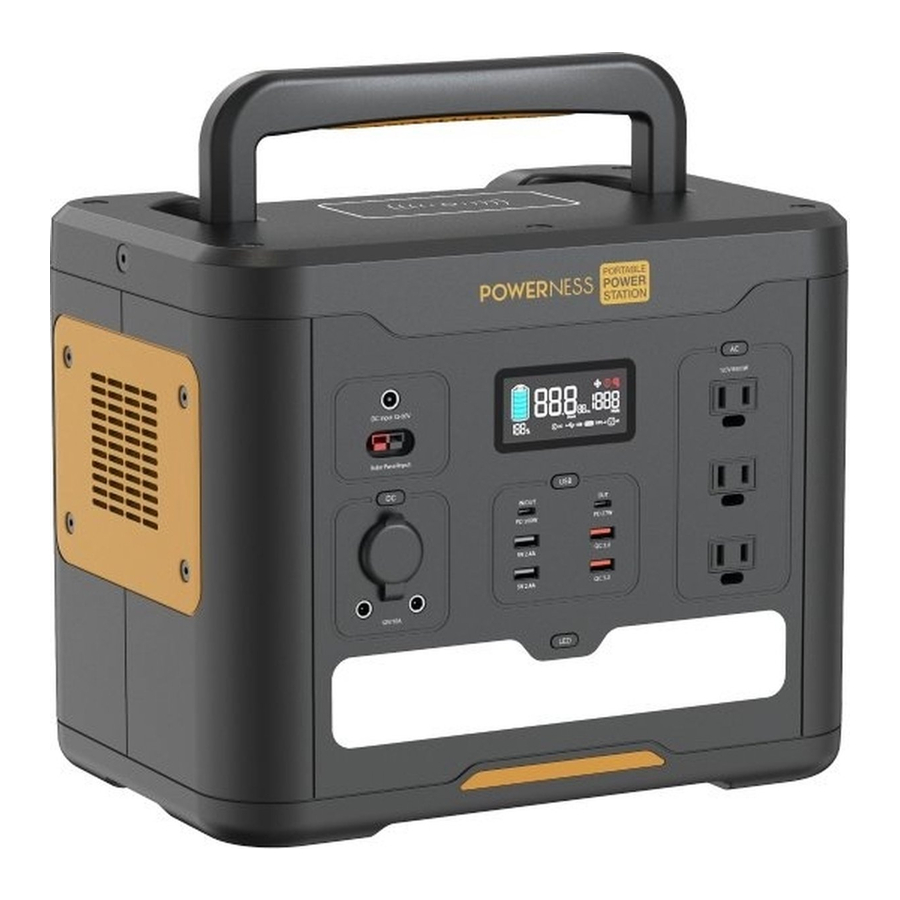

Overview

Overview
All pictures shown are for illustration purpose only. Actual product may vary due to domestic electrical outlet plugs and voltage standard.

LCD Screen

The I-CO Screen shows input status, output status, and the remaining power.

The remaining power, expressed as a percentage (%).
Remaining discharge time.
Total output power.
Press the DC button, the icon will appear, then the DC ports start function.
Press the USB button, the icon will appear, then the USE ports start function
Press the USB button and plug in the Type-C cable, the icon will appear, then the Type-C ports start function.
Press the button, the icon will appear, then the AC ports start function.
The built-in fan starts rotating, when the temperature exceeds 45C.
Overload warning
Temperature warning of Inverter. Temperature range 90°~ 95°C.
First time to turn on the LED flashlight; second click to brighten the light; third click for the strongest light; fourth click to turn off the LED flashlight.

DC Input

  • Support AC adapter charging.
  • Support car adapter charging.

USB-C Input

  • Support USB-C PD 100W input.

Anderson Input

Support solar panel charging (12-30V).
Button: Press the button to turn on, press again to turn off. (except USB-C PD in/gut)

SPECIFICATIONS

SPECIFICATIONS

WHAT'S IN THE BOX

Devices supported

USB outputs: smartphones, tablets, smart watches, digital cameras, e-readers, etc.
12V car charger port: car refrigerators, car vacuums, etc.
DC outputs: drones, routers, car refrigerators, other 12V appliances.
AC outputs: laptops, displays, home appliances, etc.
Devices supported

Charging method

Before using a new product or store a product, it is better to full charge it with the adapter included in the package. When the LCD screen shows it means it's full charged.
Type-C PD100W charging time 17 hours. Adapter+PD100W together charging time 6.5 hours.

Car Charger About 20-22 Hours Wall Charger About 8,5 Hours
Wall Charger & Type-C together About 6.5 Hours
200W Solar Panel (Sold independently)
About 11-17 Hours (Depending on the Weather)
Solar Panel Connector size: DC6/.*3.0MM

Instruction

  1. Press the button of the port you are going to use.
  2. Once the corresponding icon appears on the LCD screen, the port is ready to work.
  3. The continuous AC output power is 1500W (peak output power is 3000W). Once the limit of power is exceeded, the product will automatically shut down.
  4. The AC ports will be turned off automatically if the output power is less than 2W for more than 30-45 minutes.
  5. The DC ports or car charger port will be turned off automatically i f the output power is less than 2W for more than 8 hours,
  6. If the product is not used for a long time, recharge it every 2-3 months, keep the battery at 60-80%, and keep it in a cool and dry environment.

Note
Turn off the AC output When not in use to save power.

Contact Us for Support
Email: service@powemess.com (Response within 24Hrs)

Important Safety Notice

To reduce the risk of FIRE, ELECTRIC SHOCK, EXPLOSION, and other unpredictable damages, carefully read and follow the safety precautions described therein as follows:

  • ALWAYS supervise children closely when a portable power station is nearby.
  • DO NOT use accessories so d by non-professional manufacturers.
  • ALWAYS check to ensure that the product is unplugged when not in use.
  • DO NOT disassemble the product.
  • DO NOT use the product with damaged wires, plugs or output cables.
  • ALWAYS use the product in a well-ventilated environment, and DO NOT restrict the ventilation of the product in any way.
  • ALWAYS keep the product in a ventilated and dry place and avoid it from getting wet.
  • DO NOT expose the product to fire or temperature above 130 "C.

www.powerness.com
