Summary of Contents for Superior SU-01

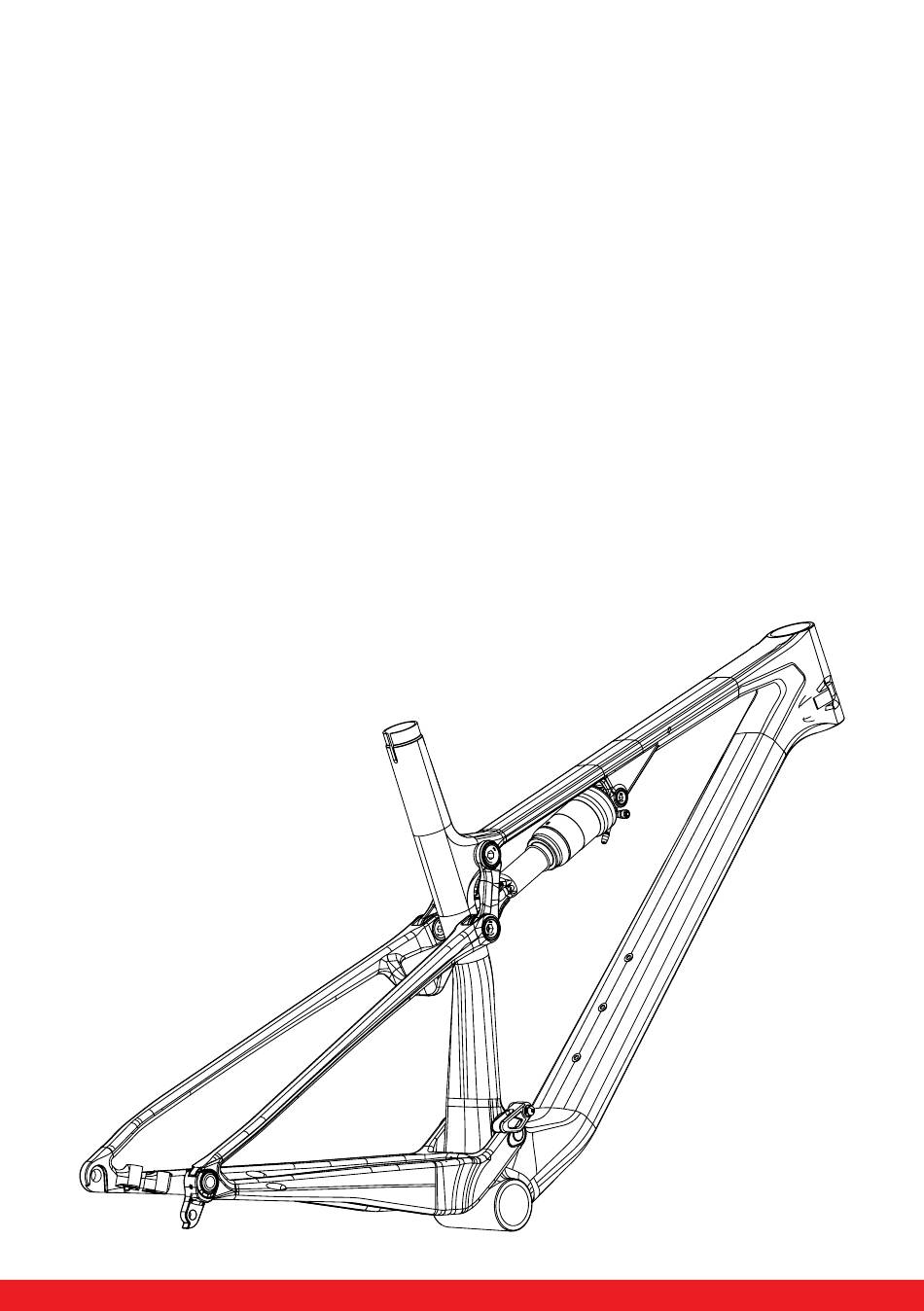

- Page 1 SERVICE MANUAL SUPERIOR SU-01...
- Page 2 Mountain bikes are equipped with a rear suspension with short travel and are constructed for “standard,” “racing”, “cross-country” or “singletrack-trail” rides, assuming adherence to type-3 operating conditions: Superior would like to congratulate you on the purchase of your new bicycle. We place great emphasis on the choice Type-3 operating conditions...
- Page 3 SERVICE INTERVALS SETTING THE FORK AND REAR SHOCK Large-scale service – At an authorized service centre, at least 1× per year or after 200 hours of riding. • Check the tightening of moving parts before and after each ride. The prescribed torques of individual joints •...
- Page 4 SERVICE NOTE The plastic bushing must be positioned with the recess facing downward. REPLACING THE SHIFTING CABLES AND HOSES 1.6 Insert the cable in the rear swingarm through the A2 hole on the right-hand side. Ducts are made using guiding tunnels inside of the bicycle frame. The ducts allow easy and quick replacement of cables and hoses within their full length without need to break them.
- Page 5 SERVICE 2.7 Tilt the rear swingarm (2) back in the original position. 2.8 Insert the washers (1) between bearings and rear structure. 2.9 Insert the main pivot (3) and tighten it with torque of 10 Nm. 2 REPLACEMENT OF THE HYDRAULIC HOSE OF THE REAR BRAKE 2.1 Slide the old hose out from the guide in the frame.
- Page 6 SERVICE 3.6 Slide the cable through the cable tube out. 3 REPLACEMENT OF THE TELESCOPIC SEATPOST CABLE 3.1 Slide the old cable out from the guide in the frame. 3.2 Slide a new cable in the frame through hole C. 3.3 Slide the cable out through the hole in the central coupling (adapter).
- Page 7 SERVICE COMPATIBILITY Front Ø 160 -180 mm Brake Rotors Rear Ø 140 -180 mm 4 REPLACEMENT OF THE REAR SHOCK REMOTE LOCKOUT CABLE Tyre max. 29 x 2.35” 4.1 Slide the old cable out from the guide in the frame. 4.2 Slide a new cable in the frame through hole D1.
- Page 8 ORIGINAL ACCESSORIES ITEM BFI PRODUCT CODE ART. NO. DERAILLEUR HANGER 598.1303.00010 BEARING SET 598.1303.00011 BEARING SET 598.1303.00015 BEARING SET 598.1303.00016 SEAT STAY PIVOT 598.1303.00014 MAIN PIVOT 598.1303.00013 LINK 013.0003.00104-372 SCREW 013.0003.00102-372 PIVOT 013.0003.00107-372 LINK 013.0003.00103-372 SCREW 013.0003.00101-372 E-THRU AXLE 598.1303.00019 SHOCK 006.0000.00233-290 SHOCK HARDWARE...
- Page 9 #BEFASTER Superior is a registered trade mark of BIKE FUN International Areál Tatry 1445/2 742 21 Kopřivnice www.superiorbikes.eu...
