Summary of Contents for Brunson ROCK STEADY RS Series

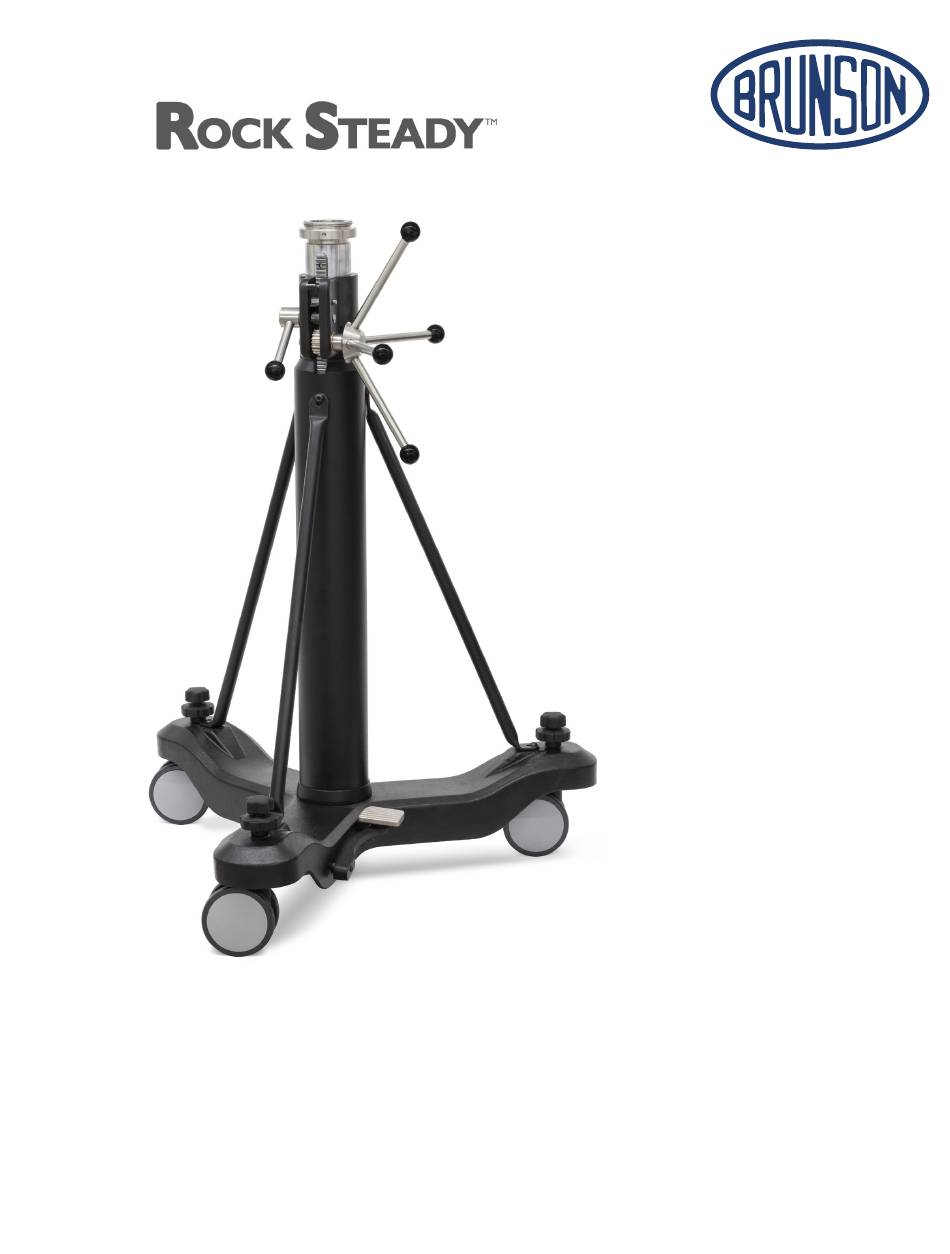

- Page 1 Heavy Duty Mobile Metrology Stands Manual for Models RS Series and 232 Part No. 19399 Rev A...
- Page 2 Heavy Duty Mobile Metrology Stands Manual for Models RS Series and 232 Brunson Instrument Company 8000 E 23rd Street Kansas City, MO 64129 www.brunson.us info@brunson.us Tel 816-483-3187 Fax 816-241-1945 © Copyright 2023 Brunson Instrument Company...
- Page 3 12 Parts List and Diagram pg. 13 Declaration of Conformity (CE Mark) Thank you for purchasing a Brunson Rock Steady or 232 Heavy-Duty Stand. Remember that our customer support does not stop after shipment of a product—we are here to help you with any measurement challenges that you may have.
- Page 4 Rock Steady Adjustable Stands RS-231-MOD Extra Short RS-231 Rock Steady Short RS-233 Rock Steady Medium RS-230 Rock Steady Tall...
- Page 5 Rock Steady Fixed-Height Stands RS-F-24 RS-F-6 RS-F-36 RS-F-48...
- Page 6 The 232 Series Heavy Duty Mobile Stand 232 Series Heavy Duty Mobile Stands...
- Page 7 Figure 1 Intermediate Tube (retractable) Raise/Lower Control Handles Ratchet Pawl Jam Nut Collar Locking Handle Serial Number Location Main Tube Brace Trivet Caster Tribrach Foot Pedal* *232 Series models have a handwheel instead of a foot pedal.
- Page 8 General Information Congratulations and thank you for purchasing a Brunson Rock Steady metrology stand. At Brunson, we recognize the importance of a stable, rugged and durable metrology platform, and the Rock Steady stand line reflects our passion for supporting accurate, tight-tolerance measurement.
- Page 9 Table 1 It is the responsibility of Model Stand Weight Max Load Capacity the end user to RS-230 205 lbs (93 kg) 150 lbs (68 kg) ensure that any RS-231 174 lbs (79 kg) 150 lbs (68 kg) instrumentation/ 232 Series 587 lbs (267 kg) 150 lbs (68 kg) equipment attached...
- Page 10 TIPPING HAZARD! Move the stand over smooth, level surfaces only, with the intermediate tube in its lowest position and no instrumentation / equipment attached. Move the stand by manually pushing or pulling (no faster than a walking pace). Do not tow or push the stand with a powered vehicle.
- Page 11 To lower the intermediate tube, release pressure from the ratchet pawl by slightly raising the intermediate tube, and then retracting and holding the ratchet pawl away from the rack. Rotate the control handle clockwise to lower the intermediate tube. When the desired height has been reached, lock the intermediate tube in place by rotating the collar locking handle down as tightly as you are able by hand.
- Page 12 Parts List and Diagram Table 2 Models RS-230, RS-231, RS-233 Model 232 Item Description Part Number Part Number Retaining Ring 12938 12938 Ratchet Shaft 3646 3646 Ratchet Pawl 3625 3625 Pawl Spring 3655 3655 Pinion 3610 3610 Clamping Spoke 3608 3608 Hub Screw (not shown) 3611...
- Page 13 We hereby certify that the machinery described above conforms with the essential health and safety requirements of Council Directive 2006/42/EC on the approximation of the laws of the Member States relating to the safety of machinery. OU:,i,tol( E. Signed: Bl"«/(8'0I( Signatory: Deighton E. Brunson, CEO...
- Page 14 Any goods manufactured by Brunson Instrument Company, and found by Brunson Instrument Company, to be defective in material or workmanship will be repaired, or at Brunson Instrument Company’s option, replaced, for the original purchaser only, provided the goods are returned with authorization to and by Brunson Instrument Company, transportation prepaid, within one year of the original shipment from Brunson Instrument Company.
- Page 15 Brunson Instrument Company 8000 E 23rd Street Kansas City, MO 64129 www.brunson.us info@brunson.us Tel 816-483-3187 Fax 816-241-1945 1.19.23...
