SEFRAM 4410B Quick Start Manual

Sefram
Sefram
Quality, performance, economy-

Capabilities

• 10 MHz Frequency Range
• Integrated Frequency counter
• AM and FM Modulation

• Sweep Capabilities

• Variable Symmetry
• Panoramic backlighted LCD display

Choice of Capabilities

The 4410B model is a 10MHz generator, which
combines sine, triangle, square and DC capabi-
lities in one small unit. All these waveforms are
available over a very broad frequency and
amplitude range with a choice of sweep and
modulation modes. Variable symmetry from
10 % to 90 % offers the possibility to generate
ramps and pulse waveforms.
The LCD displays (backlighted) 2 parameters at
the same time.

SEFRAM Generators series

The SEFRAM generators series are your solution for studying low-and hight frequency electrical and electronic phenomena and general physical
parameters. Please find in the following selection guide their specifications and choose the model that meets your needs
Type de générateur
Max Fréquency .
Sine, triangle, square
Arbitrary (max. point rate)
Vertical Resolution
Horizontal Resolution
Freq. Counter (max.F.)
Max Amplitude into (50Ω)
Separate offset
Trigger, Gate
Counted, Burst
Sweep capabilities

Modulation

Variable Symmetry
Synthesiseur
Stored set ups
GPIB Programming
*not applicable* per channel
Pour obtenir des informations complémentaires, contactez nous au

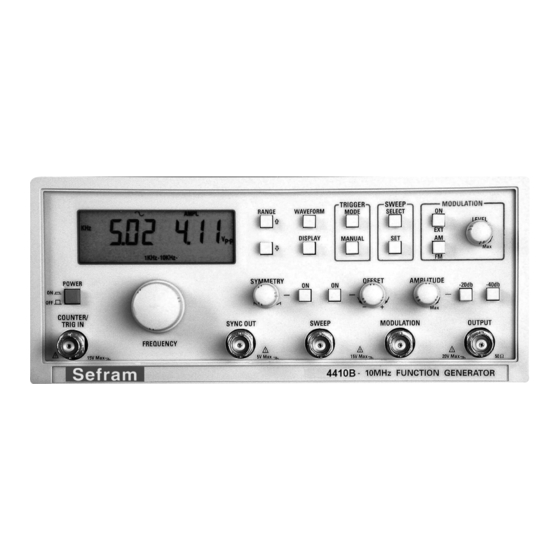

SEFRAM 4410B
10 MHz function generator.
standard with SEFRAM...

Variable Amplitude and Offset

The 4410 B generator separate amplitude
and offset controls allow you to super-
impose a DC component on the AC output
waveform. The output level can be conti-
nuously adjusted over a 20 dB range and
attenuated by 20 dB or 40 dB fixed atte-
nuator.
Sweep Capabilities
The sweep mode can be internally or exter-
nally controlled. Sweep start and stop fre-
quencies are independently adjustable.
Linear or log. sweep capabilities.
4405 4410 B
functions
5 MHz 10 MHz
yes yes
- -
- -
- -
- 75 MHZ
10 V 10 V
p-p p-p
yes yes
- -
- -
ext. int./ext.
- AM,FM
yes yes
- -
- -
- -
The output waveform can be amplitude or
frequency modulated by an internal (1KHz)or
external signal. The modulation level is ajdus-
table 0 to 100%.
4420 4440
synthesized
20 MHz 20 MHz
yes yes
- -
- -
- -
50 MHZ -
10 V 15 V
p-p p-p
yes yes
yes yes
- yes
int./ext. ext.
AM,FM AM,FM
yes yes
- yes
- up to 99
- yes
(33).04.77.59.36.81
http://www.sefram.fr
Modulation

Frequency Counter

A built-in digital counter that display the instru-
ment frequency allows precise settings. An
additional converter enables the reading of very
low frequencies with high resolution. This 6
digits autoranging counter can be used to mea-
sure external signals.
4450 4464
pulse arbitrary
50 MHz 100 MHz
pulse yes pré-définied
- 25 MS/s
- 12 bits
- 128 Kwords
- -
10 V 10 V
p-p p-p
yes yes
yes yes
yes yes
n.a.* -
- AM
n.a.* n.a.*
- yes
up to 99 up to 99
yes yes
Visit our
Web site
4465
arbitrary
n.a.*
pré-définied
500 MS/s**
12 bits
256 Kwords
-
15 V
p-p
yes
yes
yes
-
AM
n.a.*
n.a.*
up to 99
yes
