Summary of Contents for 3xLogic S1

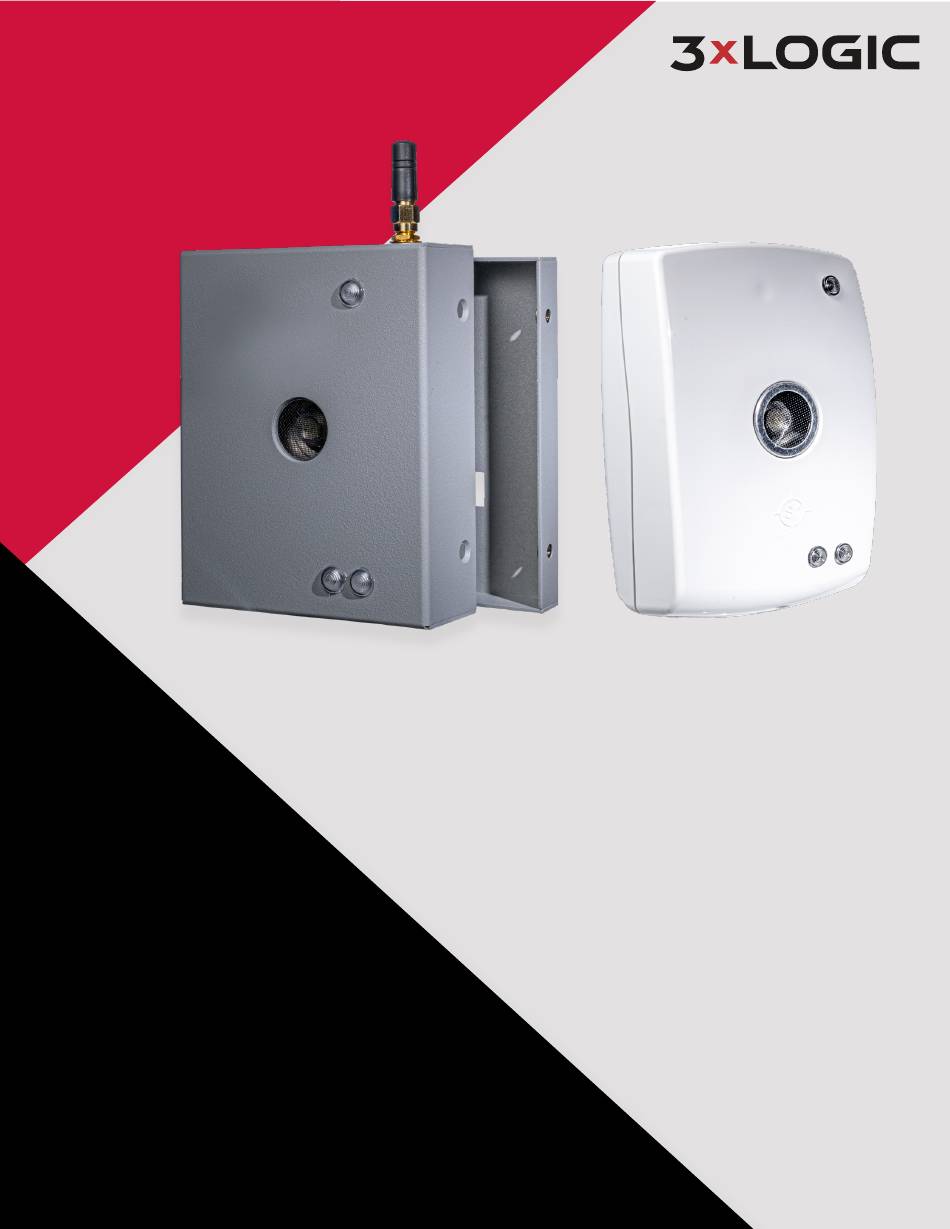

- Page 1 Gunshot Detection S1 Single Sensor Quick Start Guide Rev 1.0 Simple. Scalable. Secure.
- Page 2 No other equipment is necessary for the sensor to identify a gunshot. It is a self-contained device that can complement any security system. 3xLOGIC Gunshot Detection can be used as a single device or is scalable in design and deployments can include an unlimited number of sensors.
- Page 3 This antenna must be installed on the top of the unit. 3 Connection Connect the S1 Unit to Power and the Alarm Panel . The power cable and relay contacts are connected to the 8 Pin Quick Connector on the board in the back of the unit pictured below.
- Page 4 Quick Start Guide Figure 1-1: S1 Aluminum Indoor/Outdoor Unit As annotated above, polarity and connections are denoted on the internal board, with a configuration of: (NO C NC) (NO C NC) 12- 12+ Optional: Connect the Trouble Relay to supervise the power of the unit by connecting to the Trouble NC or NO and C connection denoted on the board.
- Page 5 5 Testing The S1 can be put into test mode 2 ways: Utilizing a magnet placed under the sensor hole on the front of the unit. Utilizing the TSTU device (Part # STU01, sold separately).
- Page 6 3 times then a green light only after the unit resets. 6 Reference Information 6.1 Catalog These components are available from 3xLOGIC. PART # DESCRIPTION SentCMBW Gunshot Detection with Ceiling Mount (White)
