Description
The Model 2600B-PM-1 200 V Protection Module with 1 A Clamp is a stand-alone module that protects certain
lower-voltage source-measure units (SMUs) that are part of a testing configuration from damage by voltage
sources that are greater than 220 V.
The maximum DC current is 100 mA, and the clamp prevents < 100 µs transient current spikes up to 1 A.
The protection module is designed for use with the following lower-voltage SMUs:
• Model 2611B Single-Channel System SourceMeter
• Model 2612B Dual-Channel System SourceMeter Instrument
• Model 2635B Single-Channel System SourceMeter Instrument
• Model 2636B Dual-Channel System SourceMeter Instrument
• Model 4200-SCS Semiconductor Characterization System SMUs:
a. Model 4200-SMU Medium Power Source-Measure Unit (with or without the Model 4200-PA Remote
PreAmp Option)
b. Model 4210-SMU High Power Source-Measure Unit (with or without the Model 4200-PA Remote
PreAmp Option)
071322000 / October 2014
200 V Protection Module with 1 A Clamp

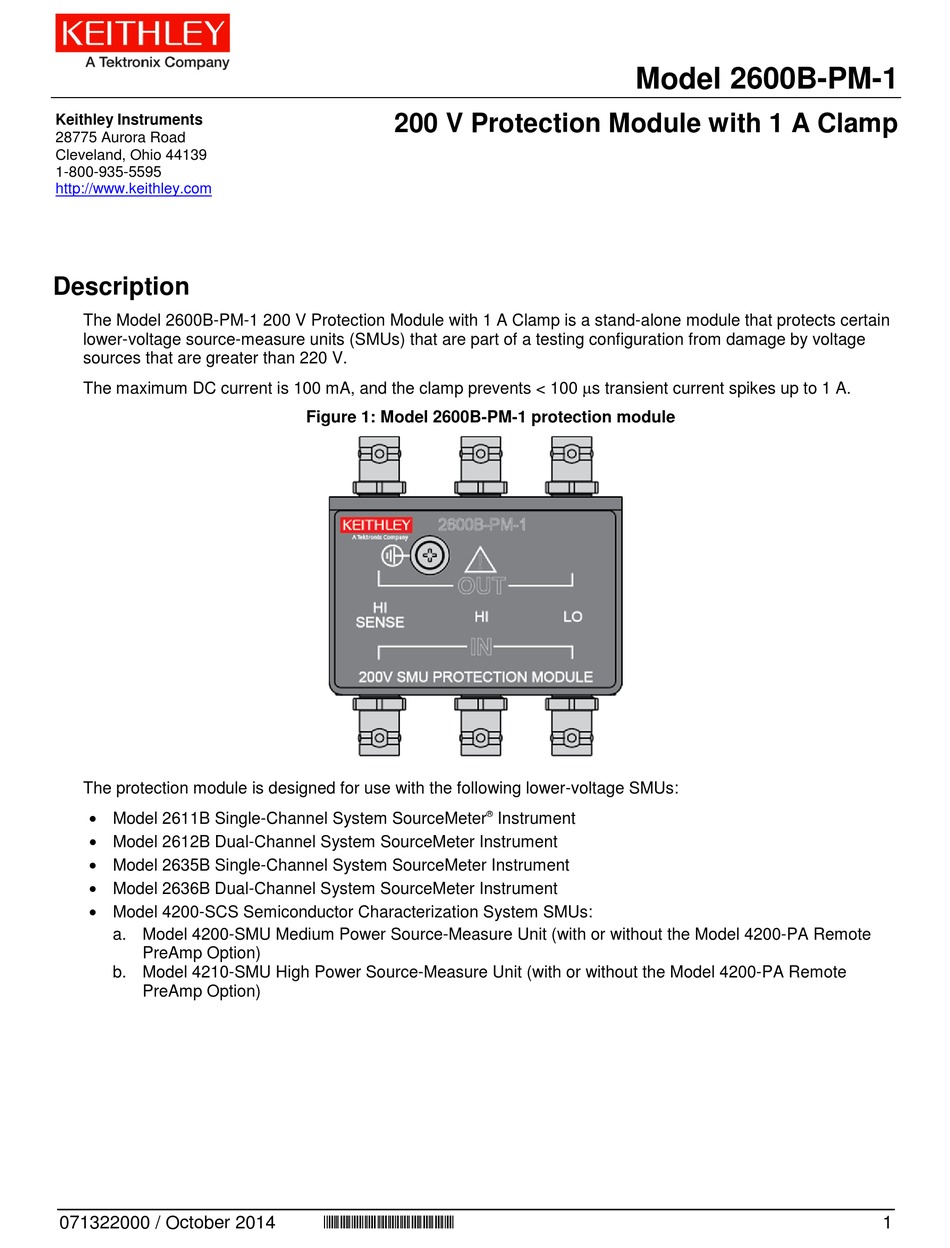

Figure 1: Model 2600B-PM-1 protection module
*071322000*
Model 2600B-PM-1
®
Instrument
1
Advertisement
Related Manuals for Tektronix Keithley 2600B-PM-1
Summary of Contents for Tektronix Keithley 2600B-PM-1
- Page 1 Model 2600B-PM-1 200 V Protection Module with 1 A Clamp Keithley Instruments 28775 Aurora Road Cleveland, Ohio 44139 1-800-935-5595 http://www.keithley.com Description The Model 2600B-PM-1 200 V Protection Module with 1 A Clamp is a stand-alone module that protects certain lower-voltage source-measure units (SMUs) that are part of a testing configuration from damage by voltage sources that are greater than 220 V.
- Page 2 Model 2600B-PM-1 The protection module prevents damage due to transient overcurrent conditions. It is intended for use in applications where a device breakdown or other potential failure could connect the high voltage output of the 1000 V power supply or SMU instrument, such as the Keithley Instruments Model 2410 or 237. The Model 2600B-PM-1 does not protect the Model 2601B Single-Channel System SourceMeter Instrument or the Model 2602B Dual-Channel System SourceMeter Instrument.
-
Page 3: Mechanical Dimensions
Model 2600B-PM-1 Mechanical dimensions Figure 3: Model 2600B-PM-1 200 V protection module Connections using a Model 2611B or 2612B SMU Required accessories: • One Model 2600-TRIAX adapter per channel • Six standard triaxial cables (either Model 7078-TRX or 4200-TRX) per source-measure unit (SMU) channel 071322000 / October 2014... -
Page 4: Connection Summary
Model 2600B-PM-1 Connection summary Refer to the next figure on how to connect a Model 4200-PA preamp and the GNDU (ground unit) to the Model 2600B-PM-1. Make sure to use the IN connectors of the Model 2600B-PM-1 for connection to the Model 4200-SCS and use the OUT connector for connection to the DUT. - Page 5 Model 2600B-PM-1 Connections using a Model 2635B or 2636B SMU Six standard triaxial cables (either Model 7078-TRX or 4200-TRX) are required per SMU channel. Connection summary Refer to the next figure on how to connect source-measure unit (SMU) channels of the Model 2635B or 2636B to the Model 2600B-PM-1.
- Page 6 Model 2600B-PM-1 Connections using a Model 4200-SCS SMU (with Model 4200-PA) If ordered, a Model 4200-PA remote preamplifier for a SMU is installed at the factory when the Model 4200-SCS is ordered. Six Model 4200-TRX cables are required for this connection to connect one Model 4200-SMU or 4210-SMU (with the Model 4200-PA): •...
- Page 7 Model 2600B-PM-1 Connections using a Model 4200-SCS SMU Required accessories to connect one Model 4200-SMU or 4210-SMU (without the Model 4200-PA Remote Preamplifier): • One Model 4200-TRX cable • One Model 4200-MTRX cables • Configurations with more than one Model 4200-SCS SMU may require a triaxial tee Connection summary Refer to the next figure on how to connect a Model 4200-SMU or 4210-SMU and the GNDU (ground unit) to the Model 2600B-PM-1.
-
Page 8: Safety Precautions
Safety precautions The following safety precautions should be observed before using this product and any associated instrumentation. Although some instruments and accessories would normally be used with nonhazardous voltages, there are situations where hazardous conditions may be present. This product is intended for use by qualified personnel who recognize shock hazards and are familiar with the safety precautions required to avoid possible injury. - Page 9 For safety, instruments and accessories must be used in accordance with the operating instructions. If the instruments or accessories are used in a manner not specified in the operating instructions, the protection provided by the equipment may be impaired. Do not exceed the maximum signal levels of the instruments and accessories, as defined in the specifications and operating information, and as shown on the instrument or test fixture panels, or switching card.
