Summary of Contents for Piranha SeaWaterPro

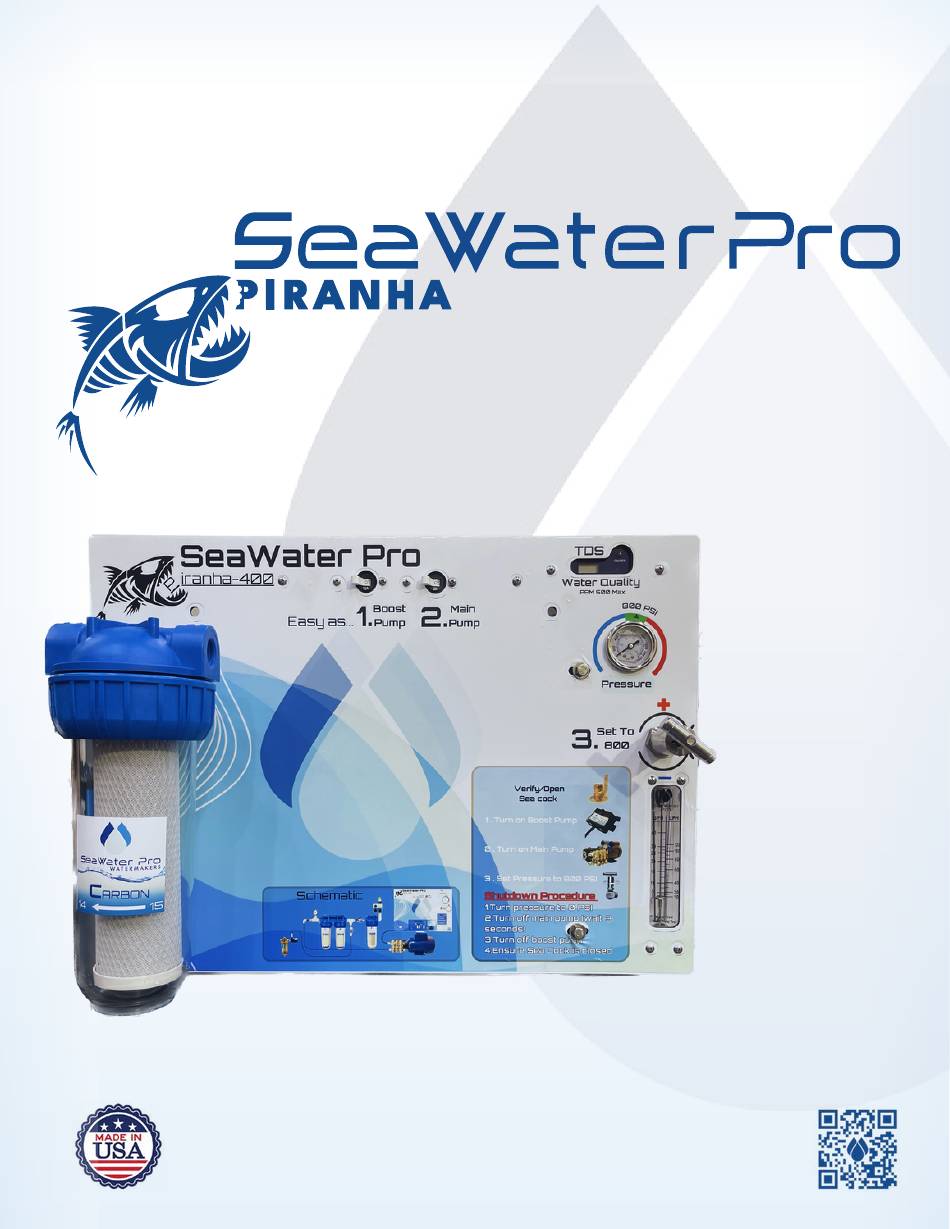

- Page 1 Compact Desalination Unit Assembly Manual 3233 SW 2nd Ave. Ste #200 Fort Lauderdale FL. 33315 954.800.8800 • seawaterprollc@gmail.com • www.seawaterpro.com...
-
Page 2: Table Of Contents
Table of Contents Plug & Play Piranha ™ Dimensions Boost Pump Connection Pre-Filter Unit Assembly Piranha Assembly Maintenance Winterization Liquid Pickling Warranty Resources & Videos Webpages... -
Page 3: Plug & Play Piranha
Plug & Play Piranha ™ SeaWater Pro's NEW Plug and Play Piranha compact modular system comes fully assembled, pre-wired, and ready to go in 5-minutes. The smallest and most efficient water desalination system of its type. Transform seawater into clean, drinkable water using your inverter or Honda EU 2000™... -
Page 4: Dimensions
Just plug and play! Water in an instant with this compact, pre-assembled system in hand. Making water has never been easier! 22" 16" 4" Spare or replacement parts can be purchased at: www.Seawaterpro.com For questions about general system use, call us at 954-800-8800. -
Page 5: Boost Pump Connection
STEP Boost Pump Connection This is the ideal way to connect the Boost Pump to a Sea Strainer. (Sea Strainer NOT included.) WARNNING: WARNNING: Do NOT operate boost Do NOT operate boost Salt water in pump dry. pump dry. ^ OUT Boost pump must be below Boost pump must be below waterline. -
Page 6: Pre-Filter Unit Assembly
STEP Pre-Filter Unit Assembly STEP 1 STEP 2 Water Input STEP 3 WARNING: WARNING: Do NOT overtighten plastic fittings. Do NOT overtighten plastic fittings. Hand tight is recommended. Hand tight is recommended. Do NOT use pliers. Do NOT use pliers. - Page 7 STEP Pre-Filter Unit Assembly STEP 4 STEP 5 Fresh Water Rinse ASSEMBLED UNIT SHOWN Input BELOW STEP 6 Low-Pressure Gauge WARNING: WARNING: Do NOT overtighten plastic fittings. Do NOT overtighten plastic fittings. Hand tight is recommended. Hand tight is recommended. Inlet from Boost Do NOT use pliers.
-
Page 8: Piranha Assembly
2. Connect ½” hose from boost pump to pre-filter inlet. 3. Run ½” hose to high-pressure pump from pre-filter. 4. Connect the high-pressure hose to Piranha “inlet”. 5. Install a ¼” hose to “product out” or freshwater outlet into the tank. -
Page 9: Maintenance
Maintenance USING YOUR RINSE TIMER Each unit comes with a rinse timer. The purpose of rinsing is to flush out seawater that may contain microscopic sea life and may cause a foul odor if left in the membrane over time. Rinsing is recommended for the system when it is not in regular use. AUTOMATIC RINSE To rinse your system, connect pressurized water from your house pump to the input (1/2"... - Page 10 Pressure Gauge For further questions regarding how to maintain your system, reach out to us at 954-800-8800 or email seawaterprollc@gmail.com You can purchase filters directly from www.SeaWaterPro.com.
- Page 11 Maintenance REPLACING PUMP OIL 1. To drain the oil, remove the drain plug at the bottom of the pump. 2. The first oil change is due after 50 hours of use. After that, it is recommended ..to replace the oil once a year or every 300 hours. 3.
-
Page 12: Winterization
Winterization WINTERIZATION PROCESS: Seawater Pro, LLC. is a company that specializes in the production of high-quality watermakers. In order to ensure that our products maintain their optimal performance and longevity, the company recommends implementing freeze protection for the preservation of their watermakers during the winter months. Freeze protection involves the use of special additives, such as 100% food-grade propylene glycol and water [1 propylene glycol:2 water gallon ratio], to help prevent water from freezing inside the watermaker's components and causing damage. - Page 13 Winterization 100% Food-Grade Propylene Glycol Propylene glycol is an odorless chemical compound that is used as an anti-freeze solution in various industries. Unlike its cousin, ethylene glycol, propylene glycol is non-toxic and safe for human consumption. It has a low freezing point of -60°C, which makes it an ideal coolant for extreme cold temperatures.
-
Page 14: Liquid Pickling
Liquid Pickling Procedure Freeze Protection for Watermakers: Winterization Tips from Seawater Pro, LLC One of the biggest risks to a watermaker during the winter months is freeze damage. Water left inside of the system can freeze, expand, and cause irreversible damage to delicate components. To ensure your watermaker stays in good condition throughout the winter, it’s important to take steps to protect it from freezing temperatures. - Page 15 Liquid Pickling Procedure After Winterizing: Tips from Seawater Pro, LLC After successfully winterizing your watermaker using Seawater Pro, LLC products, there are a few important steps you should take to ensure that your system is ready to return to operation. 1.
-
Page 16: Warranty
SeaWater Pro, LLC 3233 NW 2nd Avenue Fort Lauderdale, FL 33315 Phone 954-800-8800 info@seawaterpro.com WARRANTY COVERAGE I. This warranty extends exclusively to SeaWater Pro water makers that were purchased directly from the manufacturer’s factory; this warranty does not cover third-party sales by dealers or pre-existing water maker systems owned by the consumer. - Page 17 SeaWater Pro, LLC 3233 NW 2nd Avenue Fort Lauderdale, FL 33315 USA Phone 954-800-8800 info@seawaterpro.com If the buyer sends the product by U.S. mail, we recommend that the buyer insure it and send it return receipt requested. We accept no liability for products lost or misplaced in shipment.
-
Page 18: Resources & Videos
Resources & Videos Congratulations on purchasing your new SeaWater Pro WaterMaker! SeaWater Pro is committed to not only providing our customers with the best product available at the highest quality but also providing exceptional customer service. Below are some helpful links to our how-to videos. You can scan the QR codes with your smart phone to see the videos and download a digital copy of this manual. -
Page 19: Webpages
Connect With Us! Website SeaWaterPro.com Facebook Facebook.com/SWPFTL Instagram @SeaWaterPro YouTube @SeaWaterProLLC Email Info@SeaWaterPro.com Phone Number 954-800-8800 3233 SW 2nd Ave. Suite #200 Address Fort Lauderdale, FL 33315... - Page 20 3233 SW 2nd Ave. Ste # 200 Fort Lauderdale FL. 33315 954.800.8800 • seawaterprollc@gmail.com • www.seawaterpro.com...
