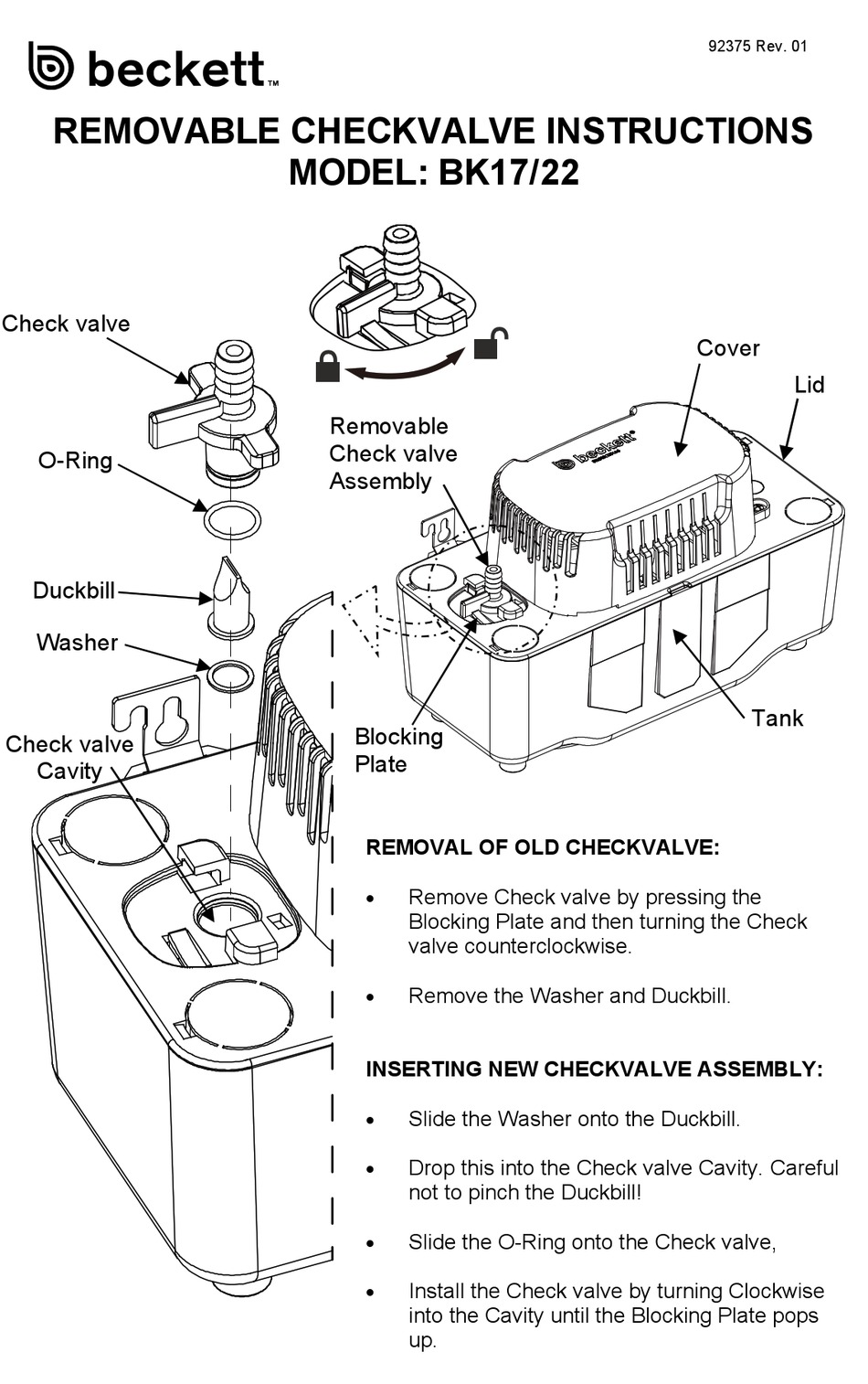

REMOVABLE CHECKVALVE INSTRUCTIONS
Check valve
O-Ring
Duckbill
Washer
Check valve
Cavity
MODEL: BK17/22
Removable
Check valve
Assembly
Blocking
Plate
REMOVAL OF OLD CHECKVALVE:
Remove Check valve by pressing the
Blocking Plate and then turning the Check
valve counterclockwise.
Remove the Washer and Duckbill.
INSERTING NEW CHECKVALVE ASSEMBLY:
Slide the Washer onto the Duckbill.
Drop this into the Check valve Cavity. Careful
not to pinch the Duckbill!
Slide the O-Ring onto the Check valve,
Install the Check valve by turning Clockwise
into the Cavity until the Blocking Plate pops
up.
92375 Rev. 01
Cover
Lid
Tank
