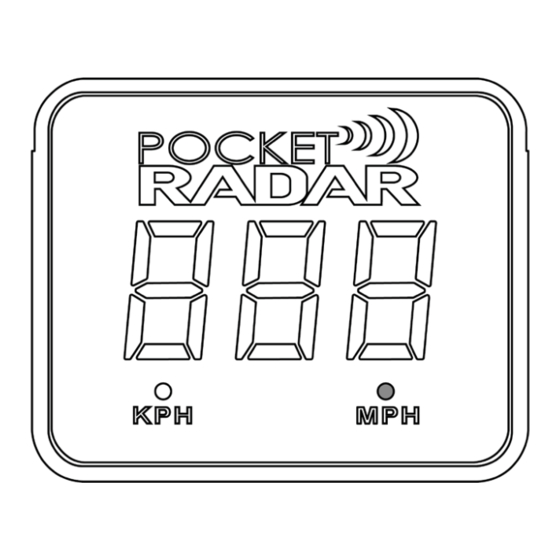

- Page 1 Smart Display SD2000 USER MANUAL & GUIDE For use with Pro Radar Module (model RM1500) or with Smart Coach Radar (model SR1100) www.PocketRadar.com...
- Page 2 Revision 1.0 Pocket Radar, Inc. 3535 Industrial Dr. Suite A4 Santa Rosa, CA 95403 Toll Free: 888-381-2672 Support: Info@PocketRadar.com Website: www.PocketRadar.com...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction...................1 What’s Included (Display).............2 Product Tour.................3 Smart Display..........(3) Accessories................4 - 5 Included...........(4) Not Included..........(5) Mounting Options................6 Select Your Radar.................7 Pro Radar Module........(7) Smart Coach Radar........(7) Pro Radar Module..........(Pages 8 - 29) Getting Started................8 - 9 Set Up Instructions........(8) Set Up Illustrations........(9) Aiming.................10 - 13 Must Aim Radar at Release Point.....(10) - Page 4 TABLE OF CONTENTS Clear Memory ..........(18) USB / Battery Level........(19) Advanced Menu..............20 - 26 Measurement Units (vnt)......(21) Sensitivity / Range (sen)......(22) Auto-Off / Timer (tof).......(23) Auto-On (aon)...........(24) Brightness (br).........(25) Display Version (Uer).......(26) Sensitivity Settings..............27 Factory Default Settings.............28 Specifications................29 Smart Coach Radar..........(Pages 30 - 46) Getting Started..............30 - 31 Set Up Instructions........(30) Set Up Illustrations........(31)
- Page 5 TABLE OF CONTENTS Advanced Menu..............39 - 44 Measurement Units (vnt)......(40) Auto-Off / Timer (tof).......(41) Auto-On (aon)...........(42) Brightness (br).........(43) Display Version (Uer).......(44) Factory Default Settings.............45 Specifications................46 Troubleshooting..............47 - 50 Interference..........(47) Ghost Readings........(48) Tips to Eliminate Interference....(48) Angles.............(49) Cosine Error..........(50) Error Codes................51 FCC Class B Statement..............52 Product Label..........(52) User Manual..........(52)
-
Page 6: Introduction
You are now the owner of the most flexible, pro performance speed display on the market. Innovative technology places the Pocket Radar’s Smart product line at the forefront of the sports and analytics revolution by providing accurate and instant feedback. -
Page 7: What's Included (Display)
WHAT’S INCLUDED (DISPLAY) The parts included with your Smart Display package are listed below. See page 7 for Radar selection. If you are missing any components, please contact Pocket Radar, Inc. at 1-888-381-2672 or email Info@PocketRadar.com Smart Display SD2000 1. Two 6 ft (2 meter) USB cables Type A to Micro B 2. -
Page 8: Product Tour
PRODUCT TOUR Smart Display Front Back Side Bottom 1. KPH units indicator or brightness sensor 10. Indicator light for USB power 2. MPH units indicator or brightness sensor 11. USB out to radar 3. 3 Digit 7 segment speed display 12. -
Page 9: Accessories
ACCESSORIES Included Two 6 ft (2 meter) USB cables Type A to Micro B The cables are used to connect your radar device to the Smart Display, as well as provide USB power. Two carabiners One 2 amp AC power supply (USB charger) The carabiners are used to The AC power supply is used hang the Smart Display onto... -
Page 10: Not Included
If you plan to set up the Smart Display more than 6 feet apart from your radar, this Extender Kit is available through the Pocket Radar online store. Camera Tripod Alkaline C-Size Batteries A Deluxe Tripod may be purchased through the Pocket Radar online store. -
Page 11: Mounting Options
MOUNTING OPTIONS The Smart Display has many different mounting/location options. The Smart Display can be mounted to a metal fence using carabiners (included), to a camera tripod using the tripod mount located on the bottom, to the legs of a tripod with the carabiners, sitting on a chair or table, hung on a wall using the handle or even standing on the ground using the handle as a kickstand. -
Page 12: Select Your Radar
SELECT YOUR RADAR Pro Radar Module (pages 8-29) Front Bottom 1. Micro B USB connector 2. Slots for tripod alignment pins 3. Tripod mounting nut 4. Strain relief for USB cable (pass USB cable under this strap) Smart Coach Radar (pages 30-46) 1. -
Page 13: Getting Started
PRO RADAR MODULE ™ GETTING STARTED GETTING STARTED Pro Radar Module Set Up Instructions 1. Insert the small end of one of the 6 ft (2 meter) Type A to Micro B cables into the Smart Display and the other end into the 2 amp AC power supply (USB charger). -
Page 14: Pro Radar Module
PRO RADAR MODULE ™ GETTING STARTED GETTING STARTED Set Up Illustrations... -
Page 15: Aiming
PRO RADAR MODULE ™ AIMING AIMING Must Aim Radar at Release Point The Pro Radar Module captures a speed reading by sending out a focused beam of very low power radio waves and looking for them to bounce off a moving object, such as a ball. These radio waves are focused in a small cone shaped like a flashlight beam which comes out the front end, where the arrow is pointing, on the Pro Radar Module. -
Page 16: Aiming Illustrations
PRO RADAR MODULE ™ AIMING AIMING Aiming Illustrations Recommended Distance: • Set up the Pro Radar Module either in front or behind the path of the moving object. • If throwing or hitting into a net, set up the Pro Radar Module at least 15 feet behind the net or the player. -
Page 17: Beam Size: Close Up
PRO RADAR MODULE ™ AIMING AIMING Beam Size: Close Up... -
Page 18: Beam Size: Long Range
PRO RADAR MODULE ™ AIMING AIMING Beam Size: Long Range... -
Page 19: Separate Accessories
PRO RADAR MODULE ™ SEPARATE ACCESSORIES OPTIONAL ACCESSORIES Using Smart Display with Pro Radar Module USB Power Packs USB Power Packs are available in several sizes and power ratings. Small ones should provide over 5 hours of use from a fresh charge. -
Page 20: Mounting Options
PRO RADAR MODULE ™ MOUNTING OPTIONS MOUNTING OPTIONS Mounting to a Tripod Detach the tripod shoe that screws into the bottom of the Pro Radar Module. Using fingers or a coin, Attach the tripod shoe Insert the tripod shoe into the screw the tripod shoe into and Pro Radar Module Pro Radar Module screw area... -
Page 21: Power Options
PRO RADAR MODULE ™ POWER OPTIONS POWER OPTIONS The Smart Display and Pro Radar Module combo can be powered either using USB connection or Alkaline C-size batteries. This makes it extremely portable and flexible for indoor and outdoor use. Power On - Self Test If powered via USB or batteries, the Smart Display will flash “888”... -
Page 22: Standard Menu
PRO RADAR MODULE ™ STANDARD MENU STANDARD MENU Recall Memory The Smart Display stores the previous 25 speeds in the memory. Each time a speed is collected, the most recent speed is stored, and the oldest of the 25 speeds is discarded. To access the Recall memory, “TAP”... -
Page 23: Clear Memory
PRO RADAR MODULE ™ STANDARD MENU STANDARD MENU Clear Memory Sometimes it’s better to start fresh when beginning a new session. To eliminate the previous speeds that are stored in the Smart Display, all you need to do is “Press and Hold” the Mode (black) button down for 2 seconds until the word "CLr”... -
Page 24: Usb / Battery Level
PRO RADAR MODULE ™ STANDARD MENU STANDARD MENU USB / Battery Power Level The Smart Display offers unique flexibility with either USB or battery powered options. To view battery life or USB, simply “Press and Hold” the Mode (black) button down for 3.5 seconds. Once you see the word “bat”, release the button. -
Page 25: Advanced Menu
PRO RADAR MODULE ™ ADVANCED MENU ADVANCED MENU Holding down the Power (red) and Mode (black) buttons at the same time for more than 2 seconds will bring the user into the advanced menu listed below. Release both buttons when desired menu is shown. (vnt): 1. -
Page 26: Measurement Units (Vnt)
PRO RADAR MODULE ™ ADVANCED MENU ADVANCED MENU Measurement Units The first menu feature is the option to alternate between miles per hour (MPH) and kilometers per hour (KPH). Hold down the Power (red) and Mode (black) buttons for 2 seconds and "vnt” will appear. •... -
Page 27: Sensitivity / Range (Sen)
PRO RADAR MODULE ™ ADVANCED MENU ADVANCED MENU Sensitivity / Range The second menu feature is the option to control the sensitivity and measurement modes of the Pro Radar Module. Hold down the Power (red) and Mode (black) buttons for 3.5 seconds and “Sen” will appear. •... -
Page 28: Auto-Off / Timer (Tof)
PRO RADAR MODULE ™ ADVANCED MENU ADVANCED MENU Auto - Off / Power - Off Timer The third menu feature is the option to specify how long the Display should remain on before it automatically turns off after no readings. Hold down the Power (red) and Mode (black) buttons for 5 seconds and "tof”... -
Page 29: Auto-On (Aon)
PRO RADAR MODULE ™ ADVANCED MENU ADVANCED MENU Auto - On The fourth menu feature is the option to automatically turn on the Display when plugged in using a USB power source. Hold down the Power (red) and Mode (black) buttons for 6.5 seconds and "aon” will appear. •... -
Page 30: Brightness (Br)
PRO RADAR MODULE ™ ADVANCED MENU ADVANCED MENU Brightness The fifth menu feature is the option to adjust the visibility of the Display in 3 different levels: Auto, Low and High. Hold down the Power (red) and Mode (black) buttons for 8 seconds and "br” will appear. •... -
Page 31: Display Version (Uer)
- Pressing the Power (red) button will cycle the user through “Dsp” and version number of the Display, or “rdr” and version number of the Pro Radar Module. - Pressing the Mode (black) button or leaving untouched for 45 seconds will exit the menu. • This information is only necessary if you are contacting Pocket Radar for support. -
Page 32: Sensitivity Settings
PRO RADAR MODULE ™ SENSITIVITY SETTINGS SENSITIVITY SETTINGS Note: Sensitivity Settings are not available with the Smart Coach Radar The Smart Display and Pro Radar Module have adjustable sensitivity and different operating modes to allow users to optimize the operation for different types of measurement setups. -
Page 33: Factory Default Settings
PRO RADAR MODULE ™ FACTORY DEFAULT SETTINGS FACTORY DEFAULT SETTINGS Measurement Units: MPH (miles per hour) • The Smart Display out of the box will be set to miles per hour instead of kilometers per hour because it is the unit preference of most of our users. -
Page 34: Specifications
PRO RADAR MODULE ™ SPECIFICATIONS SPECIFICATIONS Nominal Operating Frequency: K-Band 24.125 GHz Measures from: 25 to 130 MPH (40 to 209 KPH) Accuracy: +/- 1 MPH (+/- 2 KPH) Range under good measurement conditions: Baseball up to 200 feet and Larger Objects up to 300 feet. Smart Display Size: Height (8.75 inches), Width (11 inches), Depth (2.75 inches) -
Page 35: Smart Coach Radar
SMART COACH RADAR ™ GETTING STARTED GETTING STARTED Smart Coach Radar Set Up Instructions 1. Insert the small end of one of the 6 ft (2 meter) Type A to Micro B cables into the Smart Display and the other end into the 2 amp AC power supply (USB charger). -
Page 36: Set Up Illustrations
SMART COACH RADAR ™ GETTING STARTED GETTING STARTED Set Up Illustrations... -
Page 37: Aiming
SMART COACH RADAR ™ AIMING AIMING Must Aim Radar at Release Point The Smart Coach Radar captures a speed reading by sending out a focused beam of very low power radio waves and looking for them to bounce off a moving object, such as a ball. These radio waves are focused in a small cone shaped like a flashlight beam which comes out the back end of the Smart Coach Radar. -
Page 38: Aiming Illustrations
SMART COACH RADAR ™ AIMING AIMING Aiming Illustrations Recommended Distance: • Set up the Smart Coach Radar either in front or behind the path of the moving object. • If throwing or hitting into a net, set up the Smart Coach Radar at least 15 feet behind the net or the player. -
Page 39: Separate Accessories
Radar online store. Right-Angled USB Cable A 6 ft. Right-Angled USB Cable You will also need a Tripod Mount may be purchased through the to attach the Smart Coach Radar to Pocket Radar online store. the tripod (see pg. 35) -
Page 40: Mounting Options
SMART COACH RADAR ™ MOUNTING OPTIONS MOUNTING OPTIONS Mounting to a Tripod Detach the tripod shoe that screws into the bottom of the Tripod Mount. Screw tripod mount into the tripod Incorrect set up Correct Set Up shoe (using a coin helps). Clip tripod mount/tripod shoe back into the tripod. -
Page 41: Power Options
SMART COACH RADAR ™ POWER OPTIONS POWER OPTIONS The Smart Display and Smart Coach Radar combo can be powered either using USB connection or Alkaline C-size batteries. This makes it extremely portable and flexible for indoor and outdoor use. When con- nected to the Smart Display, the Smart Coach Radar will be powered via the Display and not the internal AAA batteries. -
Page 42: Standard Menu
SMART COACH RADAR ™ STANDARD MENU STANDARD MENU USB / Battery Power Level The Smart Display offers unique flexibility with either USB or battery powered options. To view battery life or USB, simply “Press and Hold” the Mode (black) button down for 2 seconds. Once you see the word “bat”, release the button. - Page 43 SMART COACH RADAR ™ STANDARD MENU STANDARD MENU Recall Memory The Smart Display stores the previous 25 speeds in the memory. Each time a speed is collected, the most recent speed is stored, and the oldest of the 25 speeds is discarded. To access the Recall memory, “TAP”...
-
Page 44: Advanced Menu
SMART COACH RADAR ™ ADVANCED MENU ADVANCED MENU Holding down the Power (red) and Mode (black) buttons at the same time for more than 2 seconds will bring the user into the advanced menu listed below. Release both buttons when desired menu is shown. (vnt): 1. -
Page 45: Measurement Units (Vnt)
SMART COACH RADAR ™ ADVANCED MENU ADVANCED MENU Measurement Units The first menu feature is the option to alternate between miles per hour (MPH) and kilometers per hour (KPH). Hold down the Power (red) and Mode (black) buttons for 2 seconds and "vnt” will appear. •... -
Page 46: Auto-Off / Timer (Tof)
SMART COACH RADAR ™ ADVANCED MENU ADVANCED MENU Auto - Off / Power - Off Timer The second menu feature sets how long the Display and Smart Coach Radar stays in Constant-On mode. Hold down the Power (red) and Mode (black) buttons for 3.5 seconds and "tof” will appear. •... -
Page 47: Auto-On (Aon)
SMART COACH RADAR ™ ADVANCED MENU ADVANCED MENU Auto - On The third menu feature is the option to automatically turn on the Display and radar when plugged in using a USB power source. Hold down the Power (red) and Mode (black) buttons for 5 seconds and "aon” will appear. •... -
Page 48: Brightness (Br)
SMART COACH RADAR ™ ADVANCED MENU ADVANCED MENU Brightness The fourth menu feature is the option to adjust the visibility of the Dis- play in 3 different levels: Auto, Low and High. Hold down the Power (red) and Mode (black) buttons for 6.5 seconds and "br” will appear. •... -
Page 49: Display Version (Uer)
- Pressing the Power (red) button will cycle the user through “Dsp” and version number of the Display, or “rdr” and version number of the Smart Coach Radar. - Pressing the Mode (black) button or leaving untouched for 45 seconds will exit the menu. • This information is only necessary if you are contacting Pocket Radar for support. -
Page 50: Factory Default Settings
SMART COACH RADAR ™ FACTORY DEFAULT SETTINGS FACTORY DEFAULT SETTINGS Measurement Units: MPH (miles per hour) • The Smart Display and Smart Coah Radar out of their boxes will be set to miles per hour instead of kilometers per hour because it is the unit preference of most of our users. -
Page 51: Specifications
SMART COACH RADAR ™ SPECIFICATIONS SPECIFICATIONS Nominal Operating Frequency: K-Band 24.125 GHz Measures from: 25 to 130 MPH (40 to 209 KPH) Accuracy: +/- 1 MPH (+/- 2 KPH) Range under good measurement conditions: Baseball up to 120 feet and Larger Objects up to 200 feet. Smart Display Size: Height (8.75 inches), Width (11 inches), Depth (2.75 inches) -
Page 52: Troubleshooting
TROUBLESHOOTING Interference Certain types of interference can cause all radar equipment to some- times display false or so called “ghost readings,” or make it harder to capture the speed of the intended object. Movement: Any objects that rotate, move or vibrate can create a read- ing. -
Page 53: Ghost Readings
TROUBLESHOOTING Ghost Readings Radar devices are very sensitive instruments for measuring moving objects of any kind. There may be times when the speed reading displayed may not make sense, or when there is no apparent moving object present. False readings of this kind are sometimes referred to as “ghost readings”. -
Page 54: Angles
TROUBLESHOOTING Angles A common mistake made with ALL radar equipment is trying to measure the speed of an object at an angle. Due to the nature of how Doppler speed radar works, the radar device will measure most accurate speeds when the object is moving directly towards or away from the radar beam. -
Page 55: Cosine Error
TROUBLESHOOTING Cosine Error This off angle speed measurement error is referred to as the COSINE error, named after the mathematical function that allows you to calculate the exact speed versus angle. The measured speed will always read lower than the actual speed as you move off the centerline of the path of the moving object. -
Page 56: Error Codes
Disconnect / reconnect Configuration value not Flash Memory all power. If not resolved, correctly saved Failure contact support Need help? Please contact Pocket Radar, Inc. You can reach us toll-free at 888-381-2672 or by e-mail at Support@PocketRadar.com... -
Page 57: Fcc Class B Statement
FCC CLASS B STATEMENT FCC Class B Product Label Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 58: Warranty Information
– If the product is found by Pocket Radar, Inc. to be defective, Pocket Radar, Inc’s entire liability and your exclusive remedy for breach of warranty shall be that Pocket Radar, Inc. - Page 59 Inc. had advance notice of the possibility of any such damages, including, but not limited to, loss of use, revenue or profit. In no event shall Pocket Radar, Inc’s total liability for all claims regarding the product exceed the price paid for the product.
