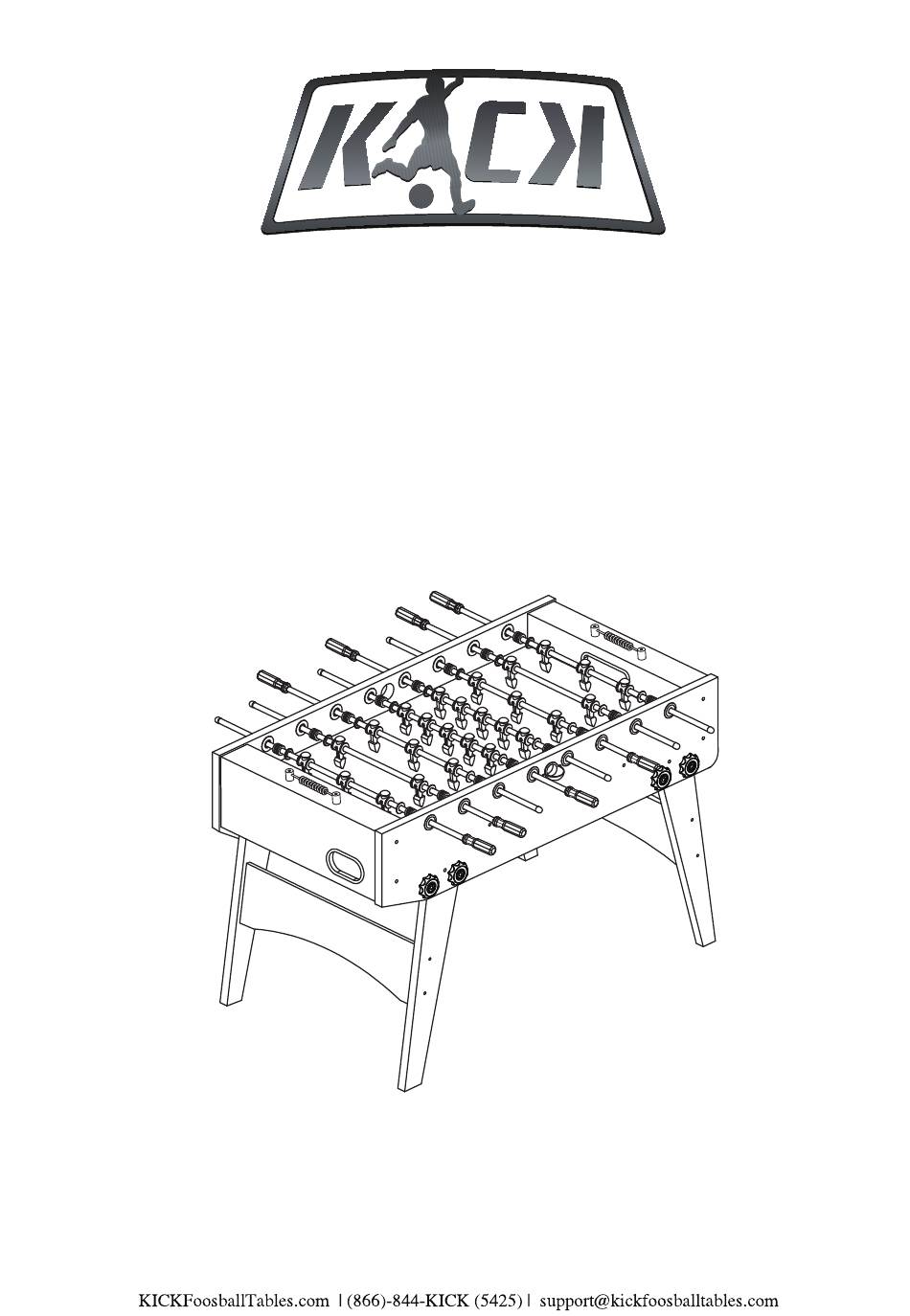

- Page 1 KICK Dreamfyre 55” (Brown/Black) FOOSBALL TABLE ASSEMBLY INSTRUCTIONS FY504...
- Page 2 WARNING: TWO ADULTS ARE NEEDED TO ASSEMBLE THE SOCCER TABLE...
- Page 3 CROSS BAR SIDEP PANEL PLAYFIELD SUPPORT ROD SUPPORT BRACE ENDP PANEL ROD HANDLE ROD END CAP ROD BUMPER ROD WASHER BALL ENTRY CUP PLAYER PLAYER TRIANGLE a PLAYER PLAYER STOP RING 3 PLAYER ROD 2 PLAYER ROD 5 PLAYER ROD 1 SET SCREW COVERS TRIANGLE b...
- Page 4 WARNING: TWO ADULTS ARE NEEDED TO ASSEMBLE THE SOCCER TABLE STEP 1 STEP 2...
- Page 5 WARNING: TWO ADULTS ARE NEEDED TO ASSEMBLE THE SOCCER TABLE STEP 3 STEP 4...
- Page 6 WARNING: TWO ADULTS ARE NEEDED TO ASSEMBLE THE SOCCER TABLE STEP 5A STEP 5B Steps 5A to 5E are optional if you want. Attach the plastic 2a, 2b, 3a, 3b to the playing field with S1. STEP 5C STEP 5D Cover the Screw Hole Cap P13 to the screw hole.
- Page 7 WARNING: TWO ADULTS ARE NEEDED TO ASSEMBLE THE SOCCER TABLE Hole Insert the rod end part way through one side panel, and then place the rest of the parts needed on each rod, in the order shown, before inserting through the other side panel. Hole...
- Page 8 WARNING: TWO ADULTS ARE NEEDED TO ASSEMBLE THE SOCCER TABLE STEP 6A STEP 6B Steps 6A to 6E are optional if you want. Attach the plastic 1a, 1b, 3a, 3b to the playing field with S1. STEP 6C STEP 6D Cover the Screw Hole Cap P13 to the screw hole.
- Page 9 WARNING: TWO ADULTS ARE NEEDED TO ASSEMBLE THE SOCCER TABLE Hole Insert the rod end part way through one side panel, and then place the rest of the parts needed on each rod, in the order shown, before inserting through the other side panel. Hole...
- Page 10 WARNING: TWO ADULTS ARE NEEDED TO ASSEMBLE THE SOCCER TABLE STEP 7 NOTE: Handle (8) attaches to rod end with hole and Rod End Cap (9) goes on opposite end. Each team should face the opposite goal and all be the same color. See diagram above for rod and player positions.
- Page 11 WARNING: TWO ADULTS ARE NEEDED TO ASSEMBLE THE SOCCER TABLE STEP 8 Foldable for storage NOTE: Once table is completely assembled and placed in desired location, use level (not included) to adjust table is level in both directions.
