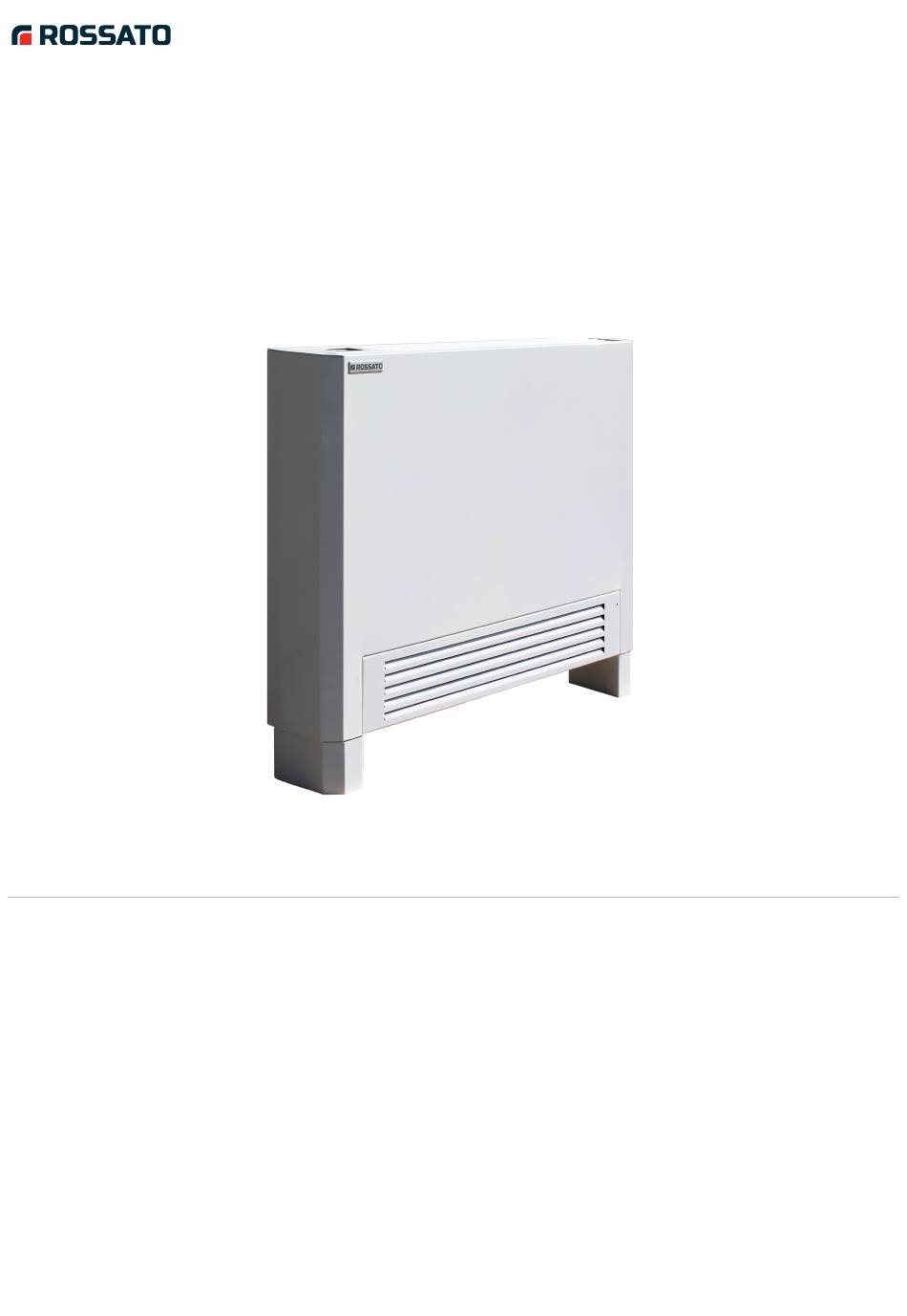

- Page 1 ENGLISH IRIS SLIM / IN Manual of installation and use Rev. 1.1...
- Page 2 Dear customer, thank you for your attention to Rossato products. All rights relating to this document are reserved by the Rossato Group and reproduction, even partial, is only possible with the authorisation of the company. Rossato Group reserves the right to make any changes necessary to improve the product or document at any time, without prior notice.
-
Page 3: Table Of Contents
IRIS SLIM / IN Table of contents 1. Introduction ..............................4 1.1. General information .......................... 4 1.1.1. Description of symbols ......................4 1.1.2. General information......................... 4 2. Unit description ............................. 6 2.1. Destination of use ..........................6 2.2. Unintended use ..........................6 2.3. -
Page 4: Introduction
IRIS SLIM / IN 1. Introduction PRIMA DI EFFETTUARE QUALSIASI OPERAZIONE SULLE MACCHINE GLI OPERATORI ED I TECNICI INCARICATI DEVONO LEGGERE ATTENTAMENTE BEFORE CARRYING OUT ANY OPERATION ON THE MACHINES, THE OPERATORS AND TECHNICIANS IN CHARGE MUST CAREFULLY READ THE INSTRUCTIONS CONTAINED IN THIS MANUAL AND FOLLOW THEM WHILE CARRYING OUT THE WORK. - Page 5 The notification of proposals to update manuals and/or machines are in any case to be considered forms of courtesy. The Customer Service is in any case available to provide, upon request, information on the updates that Rossato Group Srl has made to the devices.
-
Page 6: Unit Description
IRIS SLIM / IN 2. Unit description 2.1. Destination of use Iris Slim units are designed for heating, cooling, dehumidification and filtration of residential and tertiary environments (offices, public premises, or similar). 2.2. Unintended use Following applications are not permitted: •... -
Page 7: Technical Features
IRIS SLIM / IN 2.4. Technical features SIZE 1001 1201 Air flow rate Cooling performance (Ambient air D.B.T. 27°C - D.B.19°C - Water 7 -12°C) Total cooling capacity 0,83 1,61 2,56 3,28 0,66 1,24 1,93 2,48 0,37 0,74 1,14 1,46... -
Page 8: Operating Limits
IRIS SLIM / IN 2.5. Operating limits Tabella 1. Operating limits Power supply 220 - 240 V / 50 Hz Battery inlet water temperature 5 - 70 °C Air intake temperature 10 - 35 °C Air intake relative humidity 10 - 70 % It is advisable to operate the device at the extremes of these operating limits for short periods only, as operation for long periods may reduce the normal life of the components. -
Page 9: Iris Slim - Vertical Built-In
IRIS SLIM / IN 2.6.2. IRIS Slim - vertical built-in Figura 2. IRIS Slim - vertical built-in Figura 3. Outer casing Rossato Group Srl... - Page 10 IRIS SLIM / IN Figura 4. Front panel Tabella 3. Dimensions and weight Size 1001 1201 B (mm) L (mm) 1115 1315 L1 (mm) 1195 1395 Weight (kg) Rossato Group Srl...
-
Page 11: Lifting, Unpacking And Content Checking
IRIS SLIM / IN 3. Lifting, unpacking and content checking 3.1. Lifting and shipping When unloading and positioning the unit, great care must be taken to avoid sudden or violent manoeuvres. Internal transport should be carried out carefully and gently, avoiding using the components of the machine as a point of force. -
Page 12: Installation
IRIS SLIM / IN 4. Installation 4.1. Preparing for installation Remove the cardboard packaging and all external polystyrene side protections before installation. The unit should always be handled by two people and should only be grasped on the adequately resistant points (main metal structure), taking care not to damage the less resistant parts, in particular the filters, grills and control. -
Page 13: Positioning
IRIS SLIM / IN At the end of the installation, it will be necessary to reassemble all the components in the reverse order in which they were disassembled. It is absolutely forbidden (serious risk of personal injury) to use the unit if any components have been correctly reassembled. -
Page 14: Electrical Supply
IRIS SLIM / IN The unit must not be exposed to direct sunlight or heat sources. Provide a position in the room so that the unit can treat the whole room uniformly, without directly hitting the occupants with the air flow. - Page 15 IRIS SLIM / IN Vertical version without valve Horizontal version without valve With valve V23 After completing the hydraulic installation and charging the system, the coil must be vented using the needle valve provided. Repeat the venting operation after starting the circulation pump, until it is certain that all bubbles have been eliminated.
- Page 16 IRIS SLIM / IN Before connecting the condensate drain pipe, check that the main tray is level or slightly sloping towards the drain. In the vertical version, also check that the auxiliary tray is correctly fixed to the side and that the rubber elbow is adherent to the drain of the main tray.
-
Page 17: Electrical Connections
IRIS SLIM / IN 3-way / 4-port valve kit assembly After assembling the kit, remove the protective cap from the valve and secure the actuator by means of the threaded ring nut (the shape of the component may differ from that shown depending on the type). -
Page 18: Supporting Feet Installation (Optional Accessory)
IRIS SLIM / IN The unit has the hydraulic and electrical connections on opposite sides; if the electrical connection has been made on the same side as the hydraulic connections, it is possible to reach the opposite side by running the wires over the backrest;... - Page 19 IRIS SLIM / IN Fix the two feet (right and left, not interchangeable) with six self-tapping screws as shown in the figure using the holes provided. Finally, make sure that they are firmly attached to the structure of the fan-coil.
-
Page 20: Control And Regulation Devices
IRIS SLIM / IN 5. Control and regulation devices 5.1. Controls The unit is supplied with SP3-BLDC power board already mounted on the machine and TOP3 keypad. The unit can be controlled in one of the following ways: • From TOP3 wall keypad •... -
Page 21: Maintenance
IRIS SLIM / IN 6. Maintenance 6.1. Ordinary maintenance Unit maintenance may only be carried out by qualified and authorised personnel. Before carrying out any maintenance work on the device, ensure that the main power is switched off and cannot be switched on accidentally. - Page 22 IRIS SLIM / IN To access the filter (versions without cabinet), it is necessary to remove two screws that secure the sheet metal angle in front of the filters. Carefully remove all filter modules, taking care not to damage them.
-
Page 23: Extraordinary Maintenance
Extraordinary maintenance of the machine may only be carried out by qualified and authorised personnel. Furthermore, if carried out during the warranty period and not authorised by the Rossato Group, the warranty will be voided. Before carrying out any maintenance work on the machine, ensure that the main power supply is switched off and cannot be switched on inadvertently. -
Page 24: Battery
IRIS SLIM / IN Remove two M4 screws that secure the motor bracket to the sidewall; one screw is unscrewed from the inside, the other from the outside of the sidewall. Remove the motor and then the fan; to remove the fan, you must first move it to the right to release the pin that secures it to the bracket on the left. -
Page 25: Troubleshoouting
IRIS SLIM / IN Remove four screws that secure the battery to the sheet metal shoulders. Remove the battery by sliding it to the left first, so as to free the hydraulic connections from the holes in the shoulder. Refit all new components in reverse order, taking care to gently adjust the position of the collectors to the hexagonal holes in the sidewall (if necessary) without damaging them. -
Page 26: Troubleshooting Iris Slim
IRIS SLIM / IN 6.3.1. Troubleshooting IRIS Slim Anomaly Possible malfunctions Solution Front radiant panel does not heat Air in the pipes Remove air from vent valve Ventilation does not respond The valve takes a minute to open Wait 2-3 minutes for water to circulate in the battery. -
Page 27: Disposal
IRIS SLIM / IN 7. Disposal At the end of its service life, the unit must be disposed of in accordance with local waste disposal regulations. The main materials present are: copper, aluminium, steel, polystyrene, plastic. Rossato Group Srl... - Page 28 Rossato Group srl Via del Murillo km 3,500 04013 Sermoneta (LT) - Italy Tel.1 +39 0773 844051 Tel.2 +39 0773 848778 info@rossatogroup.com www.rossatogroup.com...
