Audiocom SS1000 Supplemental Information

SS1000 / SS2000 Supplemental Information

General Instructions

If you ordered SS1000 / SS2000 boxes and faceplates separately, use these instructions to assemble the speaker stations.
Once you have assembled the stations, refer to the User Manual for all installation and operation information.
Step 1: Connecting the Wires from the Box to the Faceplate
SS1000 wire connections for use in Audiocom System
XLR Connector Terminal Strip on
on Box Circuit Board
Pin 1 TB1-1
Pin 2 TB1-3
Pin 3 TB1-4
SS1000 wire connections for use in Clear-com System
XLR Connector Terminal Strip on
on Box Circuit Board
Pin 1 TB1-1
Pin 2 TB1-3
Pin 3 TB1-4
Audiocom
Installing the Box to the Faceplate
Use the appropriate pin connections, below, to connect the wires from the XLR
audio connector on the box to the terminal strip on the circuit board. (Or in the
case of the "U" box, connect wires from the intercom system to the terminal

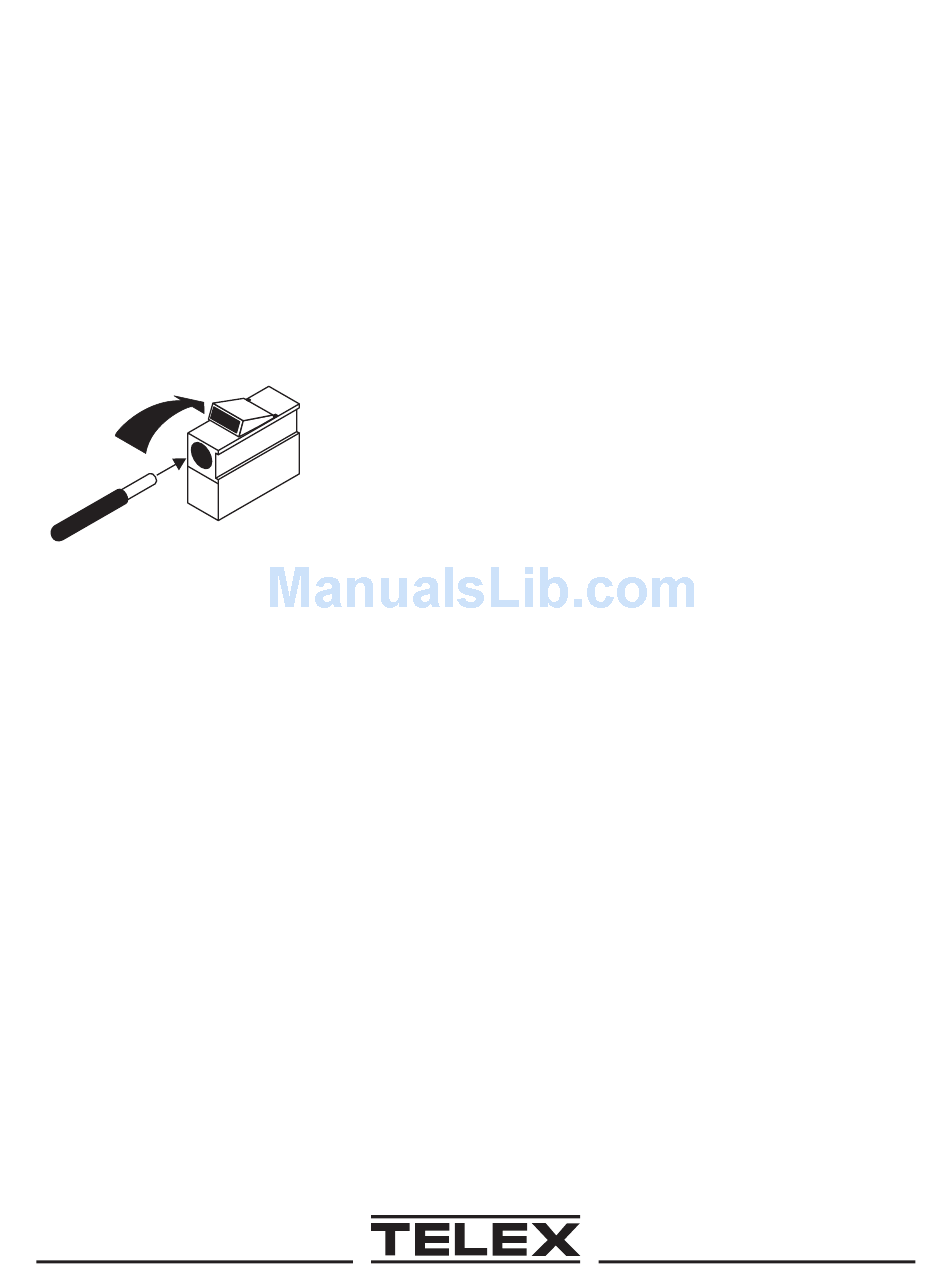

strip.) To insert a wire into the terminal strip, push back the green lever on the
top of the terminal as shown, then insert the wire and release the lever.
Description
DC Common
Audiocom Channel audio low and +24VDC phantom power
Audiocom Channel audio high and +24VDC phantom power
Description
Common
Clear-com power input
Clear-com audio / call signal
®
®
