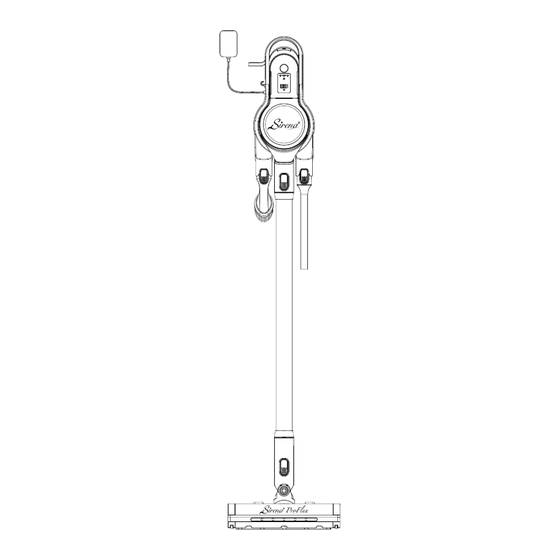

Sirena Proflex Instruction Manual
  1. Manuals
  2. Brands
  3. Sirena Manuals
  4. Vacuum Cleaner
  5. Proflex
  6. Instruction manual

Sirena Proflex Instruction Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

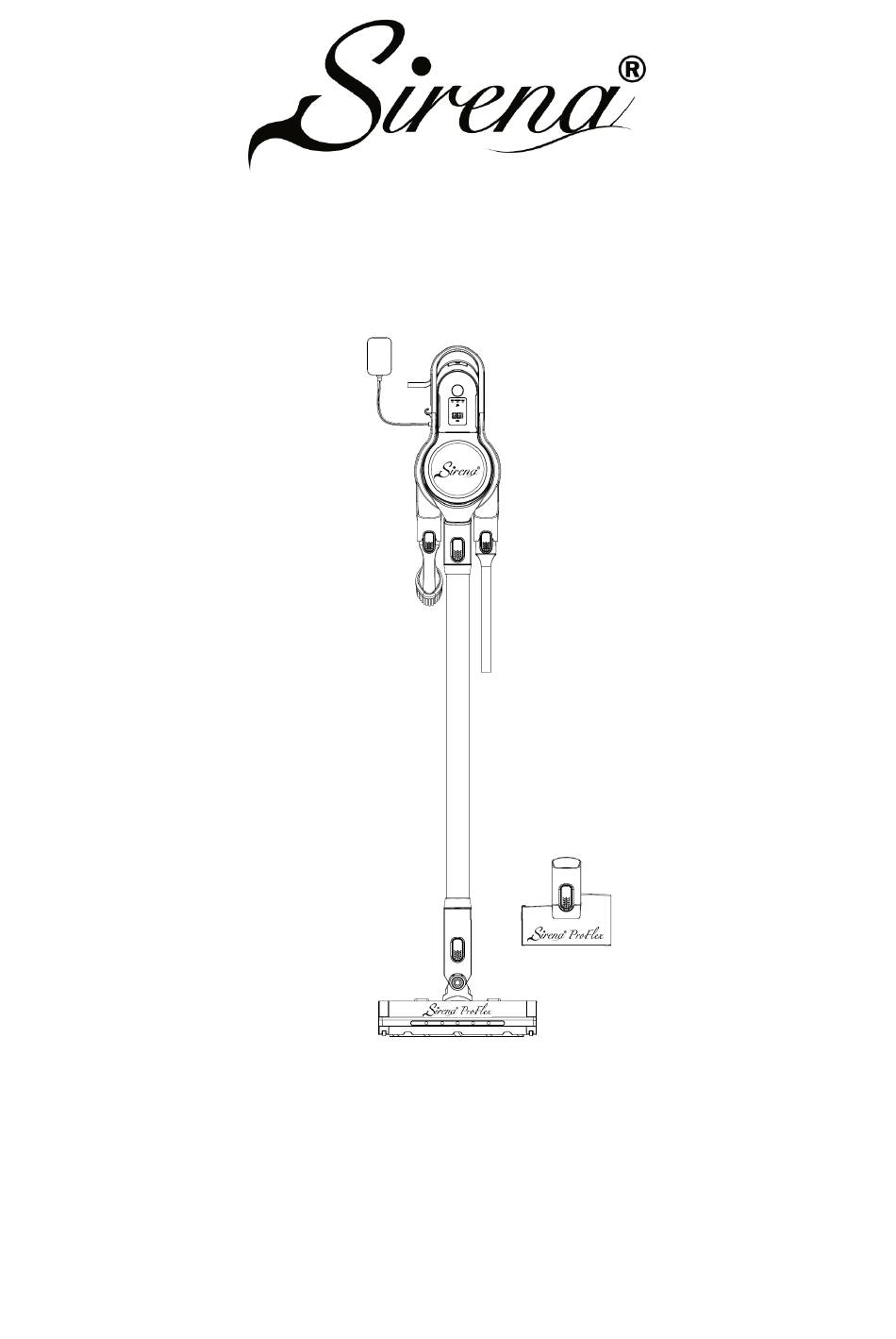

INSTRUCTION MANUAL
Model : Sirena Proflex
Read this manual thoroughly before using and save it for future reference.
Sirena Inc.
11334 Boggy Creek Suite 107 Orlando, Florida 32824
www.sirenasystem.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the Proflex and is the answer not in the manual?

Questions and answers

Related Manuals for Sirena Proflex

Summary of Contents for Sirena Proflex

  • Page 1 INSTRUCTION MANUAL Model : Sirena Proflex Read this manual thoroughly before using and save it for future reference. Sirena Inc. 11334 Boggy Creek Suite 107 Orlando, Florida 32824 www.sirenasystem.com...

  • Page 2: Important Safeguards

    1. Important Safeguards When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL THE INSTRUCTIONS BEFORE USING THIS APPLIANCE. WARNING – To reduce the risk of fire, electric shock, or injury: 1.1 This appliance has been designed for domestic dry vacuum cleaning only.
  • Page 3 accidental electric shock. 1.10 Repairs should be conducted by a service agent in accordance with relevant safety regulations. 1.11 Care should be taken to dispose of the battery pack safely in accordance with local regulations; Never dispose of it in fire or water, as this may increase the risk of explosion or contamination.
  • Page 4 or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces. 1.22 Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord. 1.23 Do not handle plug or appliance with wet hands. 1.24 Do not put any object into the openings.
  • Page 5 Carrying the appliance with your finger on the switch or energizing appliance that has the switch on invites accidents. 1.34 Disconnect the battery pack from the appliance before making any adjustments, changing accessories, or storing appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally.

  • Page 6: For Household Use Only

    temperature. Exposure to fire or temperature above 130 ° C may cause an explosion. The temperature of 130°C can be replaced by the temperature of 265°F. 1.41 Recommended ambient temperature range for battery pack. ·Operating temperature: -10℃~70℃ ·Charging temperature: 10℃~43℃ ·Storage temperature: -20℃~45℃...
  • Page 7 2. Product Display Fig. 2-1 Floor power nozzle Charger Aluminum wand Charger stand 2 in 1 dusting brush Crevice tool Dirt cup Pet brush Filter screen HEPA filter Main Unit (Contains Battery Pack)
  • Page 8 3. Product Assembly Please be advised that users should follow the steps below for assembly before the first use. 3.1 Attach the aluminum wand (No.1) to the floor power nozzle connector (No.2) as shown. Unit release key (No.3) clicks in place properly; see Figures 3-1 and 3-2. Figure 3-1 Figure 3-2 3.2 Aluminum Wand and Main Unit Assembly.
  • Page 9 Place the charger stand (No.2) on the selected wall area. Then mount to the wall with supplied M4*20 taper screws. The below figure 3-6 below shows the status of the charger stand after being mounted to the wall. The dusting brush (No.3) and crevice tool (No.4) can also hang on the wall mount when not in use, see Figure 3-7.
  • Page 10 4. Operating Instructions 4.1 Vacuum Unit Press the power switch (No.1) to start the vacuum, see Figure 4-1. The power nozzle brush roll will run automatically when turned on. Press the speed-control button (No.2) to switch between high and low speeds. The default speed setting is medium when powering on.
  • Page 11 Figure 4-4 Figure 4-6 Figure 4-5 4.3 Battery disassembly operation. Hold on to the main unit with one hand, press the release key (No.1) with your other hand, and pull it up at the same time to release the battery. fig.4-7 Figure 4-7...
  • Page 12 4.4 Attachment Operation The crevice tool (No.1) is for cleaning wall corners or confined gaps such as couch cushions. The dusting brush (No.2) is for removing dust from surfaces. The pet brush (No.3) is great for use on stairs and furniture. All three attachments will attach to the main unit and at the end of the aluminum wand.

  • Page 13: Battery Charging

    Figure 4-12 Figure 4-13 5. Battery Charging 5.1 Charging mode: as shown in Fig. 5-1, hang the hook (No.1) engaged into the square hole (No.2) in the low body of the cleaner, and the charger is plugged into the main unit at the same time. While charging the LED screen will show the level of charge.
  • Page 14 Attention: The vacuum is unable to start while charging. Cleaning & Maintenance 6.1 Push the release button (No.1) back and pull to remove the dirt cup (No.2) from the main unit. Figure 6-1 6.2 Firmly hold the filter handle (No.3) and pull the filter (No.4) out of the filter screen to empty;...
  • Page 15 6.3 Hold the filter screen (No.5) and rotate it counterclockwise and pull it out of the dirt cup. Tap the dirt from the filter screen (No.5) and empty any dirt from the dirt cup. If you rinse with water, let the filter screen and dirt cup dry before reinserting back. Figure 6-4 Figure 6-5 6.4 Slide the filter screen (No.5) back onto the dirt cup and rotate it clockwise to set it,...
  • Page 16 6.5 To remove the power nozzle roller, press the brush roll release button (No.10) and then pull the brush roll (No.11) out from the top side. Reverse the steps to reinstall the brush roll. See Figure 6-7. Figure 6-7 6.6 To remove hair from the brush roll, run a razor blade down the groove to cut the hair then pull it off, then re-insert it back in the power nozzle.
  • Page 17 6.8 The one-touch Easy-open makes emptying the dirt cup quick and easy. See Figure 6-10. Dirt disposal: Hold the vacuum above a garbage bin and pull the Dust Release Key (No.13) with a finger, so that the Dirt Cup Cover pivots down and the dirt inside Make sure not to lose the large the Dirt Cup will fall out into the garbage bin.
  • Page 18 7. Technical Specification Sirena ProFlex Product Model DC 25.2V Working Voltage ≥110W Max. Air Watt (High-Speed Level) HCX1501-3200450E Battery Charger Model 100-240V ~50/60Hz Battery Charger Input 32V 450mA Battery Charger Output Electrical Brush Rated Power 4－5h Charging Period This device complies with Part 15 of the FCC Rules.
  • Page 19 compliance could void the user's authority to operate the equipment. 3. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 20: Environment-Friendly Disposal

    Sirena Proflex Two-Year Warranty The Sirena ProFlex Stick Vacuum comes with a two-year warranty, offering you peace of mind with your purchase. This warranty specifically covers any defects in manufacturing, ensuring that your vacuum will perform optimally as long as the issues pertain to factory faults.
