INTRODUCTION
The MKV Fence Stop Systems mounts in the t-
slot of the rip fence, allowing you to position
a stop for repeat cuts. This can be placed
anywhere along the rip fence. The Fence Stop
System makes setting up and cutting or drill-
ing a repetitive motion. 555807 is the Fence
Stop System for the MKV 510, but can also be
used with Mark V 500 Fence (555646) and the
Bandsaw Fence (555645). 555808 is the Fence
Stop System for the MKV 520.
The stop is a flip stop design, when not re-
quired it can be flipped up, without losing the
stop postition. You can also purchase extra
fence stops, these packages only include the
fence stop:
• 52170801 - MKV 510 Fence Stop
• 52170802 - MKV 520 Fence Stop
TOOLS REQUIRED
5/32" Allen Wrench
#2 Phillips Screwdriver
SAFETY
WARNING
Read, understand,
and follow all instruc-
tions in this manual.
Wear safety equip-
ment, including eye
protection.
Do not back the wood
up when you reach the
stop, turn off the ma-
chine and remove the
stock.
FENCE STOP MKV 510/520
Ref
No.
— 555807
— 555808
1
2
3
4
5
6
7
8
9
10 521716
11 521795

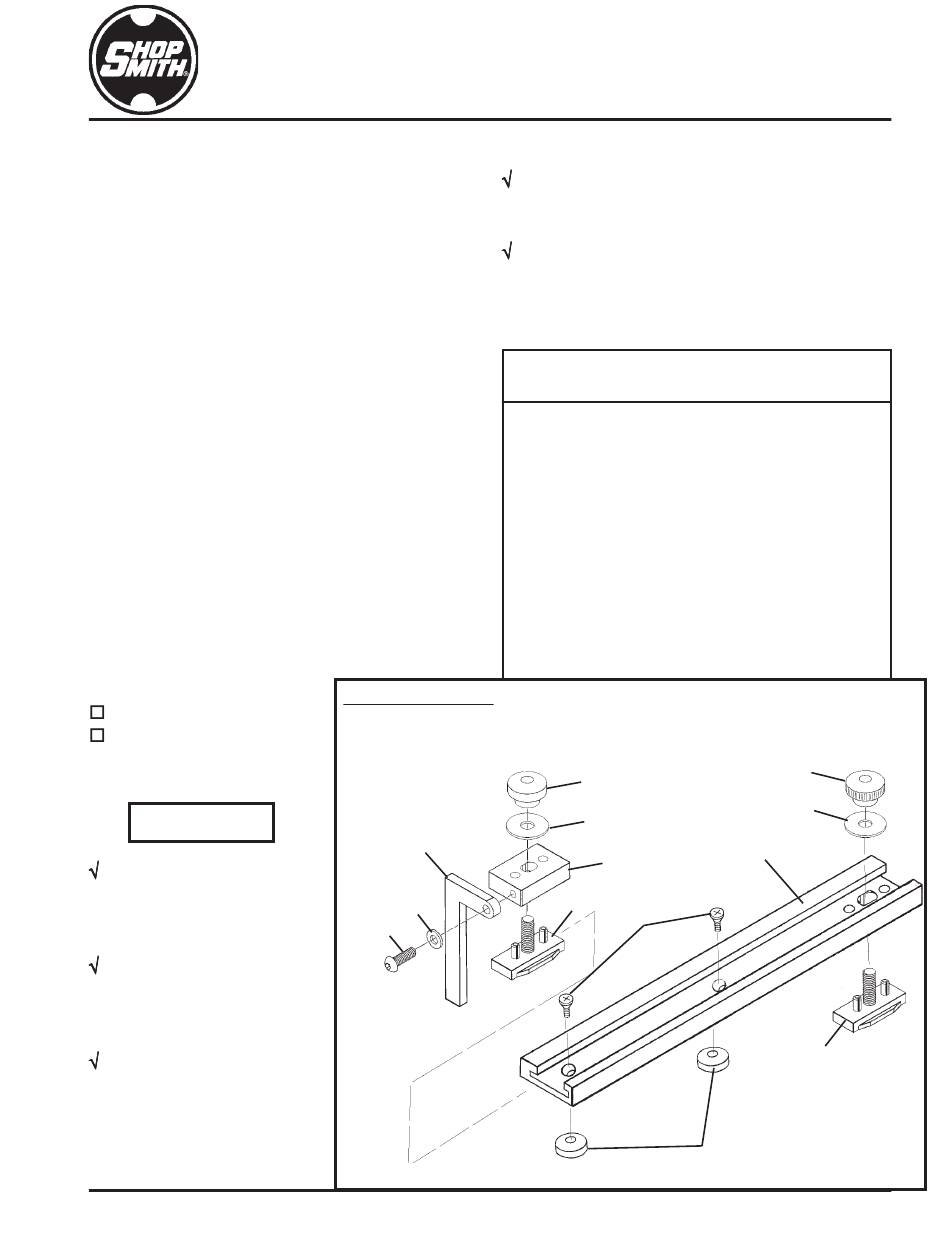

Parts Explosion
4 or 5,
depending on
Model
1
7
555807 MKV 510
555808 MKV 520
Use safety equipment to move the stock
up to the stop.
Always have a t-bolt and washer en-
gaged in the fence.
PARTS LIST
Part Item
No. Description
MKV510 Fence Stop System
(includes 1-4 and 6-11)
MKV520 Fence Stop System
(Includes 1-3 and 5-11)
513865 . Flat Washer ............................... 1
521662 . Knob .......................................... 2
521709 . Stop Block ................................. 1
52171001 . Stop Lever (510) ........................ 1
52171002 . Stop Lever (520) ........................ 1
521711 . Washer ...................................... 2
521712 . Screw ........................................ 1
521715 . T-nut Assembly ......................... 2
521714 . Washer, PM............................... 2
. Extrusion ................................... 1
. Screw 8-32x3/8 ......................... 2
2
6
3
8
11
9
Qty
2
6
10
8
