Hunza WDL/HP Installation Instructions

High Power Wall Mount - Pillar Light, Wall Spot & Wall Down Light
INSTALLATION INSTRUCTIONS
IMPORTANT! TO MEET HUNZA'S BLACK LABEL WARRANTY,* PLEASE READ BEFORE INSTALLING THE FIXTURE.
PLEASE NOTE: THESE INSTRUCTIONS MUST NOT CONTRAVENE YOUR LOCAL ELECTRICAL AUTHORITY REGULATIONS,
WITH WHICH ALL INSTRUCTIONS HEREIN MUST COMPLY. PLEASE KEEP INSTRUCTIONS FOR FUTURE REFERENCE.
WARNING: DO NOT connect the secondary side (output) of a live driver to
the fixture, this will cause a spike in voltage that can damage the LED. When
connecting or disconnecting the fitting always insure the 120/240V power supply
is disconnected.
WARNING: When using a photocell and/or timer we recommend using devices
with relay outputs as opposed to electronic. The high frequency of electronic
devices can lead to failure of the LED driver.
WARNING: If the mounting surface is to be "acid washed" the fixtures must be
removed prior to the process to avoid damage to the fixture and its fittings.

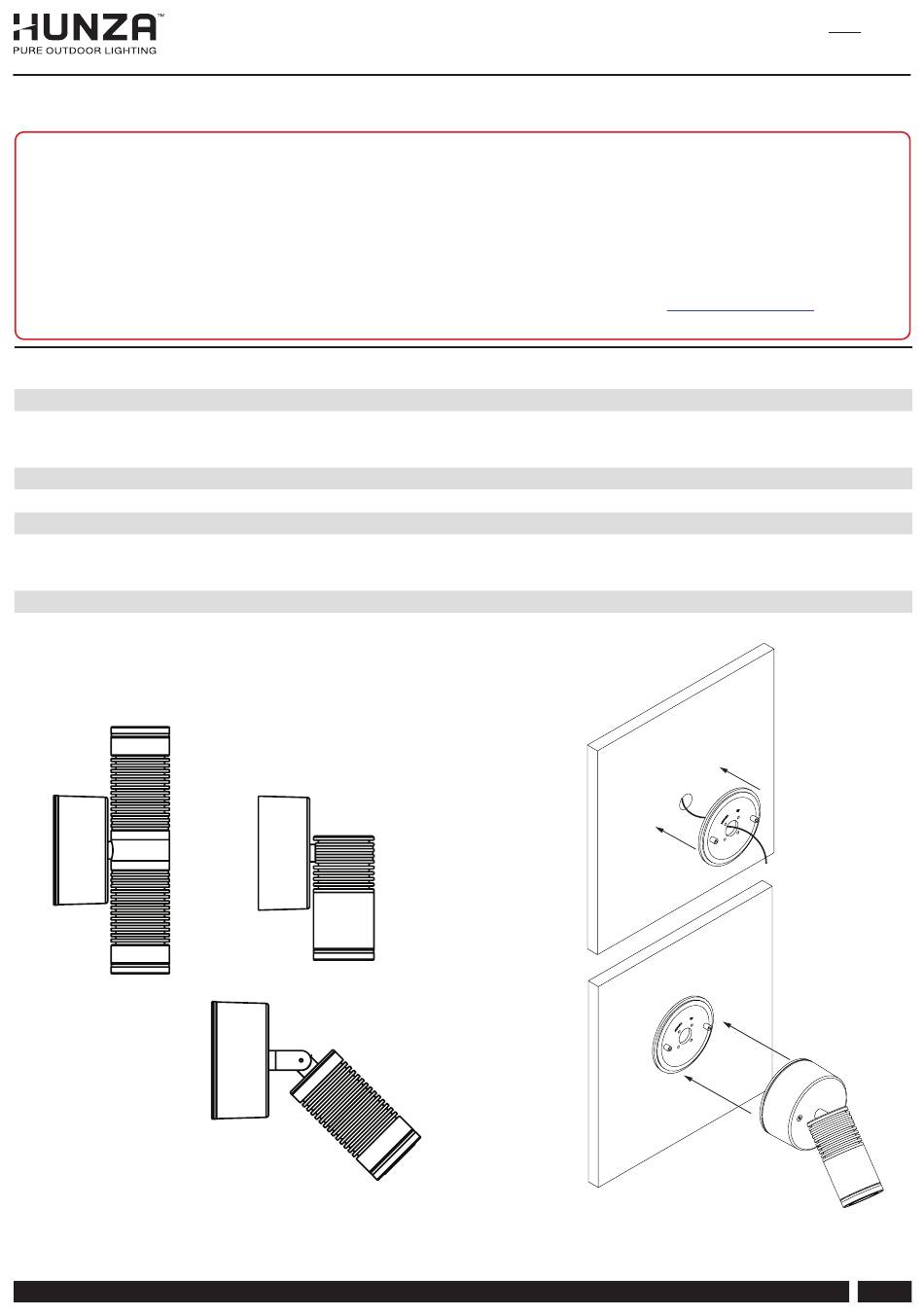

Installation Guide

Step 1: Mount the Back Plate

• Apply sufficient silicone sealant to the groove on the back of the mounting plate, to seal against the wall.
• Fit cables through 25mm hole (If mounted on porous material e.g. mortar or if there is any possibility of water leaking down the cable track, the cable must be sealed
around the 25mm hole in the backplate to stop water building up in the Driver housing). Mount the back plate onto the wall. (See Fig. 1)

Step 2: Make Wire Connections

• Make a waterproof join between the cable tail and the output cable from the power supply. Make waterproof connections, please refer to wiring guide.

Step 3: Replace Fixture Onto Base

• Once connections have been made fix the luminaire onto the mounting plate (check that the backplate gasket is in place) and use screws provided to secure luminaire.
• Make sure to use the washers supplied are fitted under the mounting screws to stop water leaking into the luminaire. If there is any possibility of water leading down
the cable track, the cable entry point must be waterproof sealed. (See Fig. 2)
Step 4:Install Glare Guard/Snoot (Optional)
• Carefully remove lens ring making sure not to drop the glass lens and cause damage to it, keeping gasket in place.
• Hold the body of luminaire tightly and screw Glare Guard/Snoot ring onto luminaire.
• Still holding the body of the luminaire tightly rotate Glare Guard/Snoot to desired position.
©Copyright 2023. This document contains proprietary information of Hunza™. Its receipt or possession does not convey any rights to reproduce or disclose its content.
WDL/HP PIL/HP WS/HP Aug 2023 V2 Hunza-High-Power-Wall-Mount_Installation-Instructions-USA
WATERPROOFING FIXTURES: Ensure the fixture is fixed in place and ensure a
waterproof seal is made between the fixture and surface. Ensure that installation
on exteriors meets local authority regulations.
WATERPROOFING CONNECTIONS:
luminaire, input cables and/or dimming cable. A non waterproof connection will
allow water to ingress into the power supply and/or fixture head which can lead
to failure.
*T&C's apply. See website for details:
Figure 1.
Figure 2.
