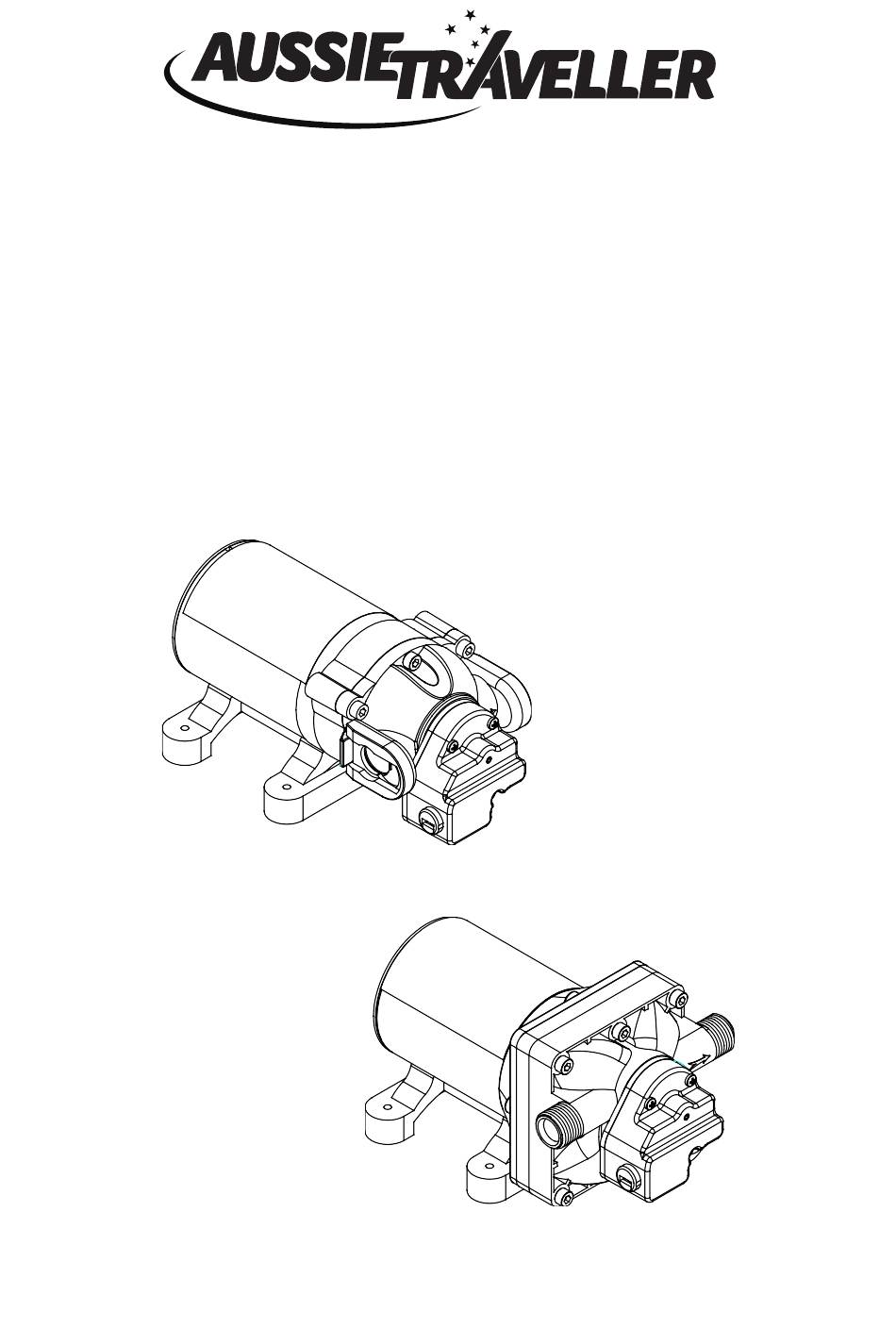

- Page 1 12V RV WATER PUMP OWNER’S MANUAL 7.6LPM 11.4LPM...
- Page 2 Read this installation instruction thoroughly. Incorrect installation or operation may void any warranty. Incorrect use or operation may cause serious injury. INSTRUCTIONS FOR INSTALLATION, TESTING, OPERATION, SERVICING, AND STORAGE 12V RV Pump: For use in RVs to transfer potable water, indoor use only. WARNING READ and UNDERSTAND the Owner’s Manual completely before using this potable water pump.
-
Page 3: Table Of Contents
TABLE OF CONTENTS INTENDED USE ___________________________________________________________________ 3 SUMMARY OF IMPORTANT SAFETY INFORMATION _________________________________ 4 Before Installation During Installation General Safety Operation __________________________________________ Accident Procedures ________________________________________________________________________________ WARNING LABEL LOCATION _______________________________________________________ 5 INSTALLATION ____________________________________________________________________ 7 Step One: Prepare for Installation ___________________________________________________________________ Step Two: Mounting _______________________________________________________________________________ Step Three: Plumbing _____________________________________________________________________________ Step Four: Connect pump to 12V DC power supply ___________________________________________________ Step Five: Check and test the installation of the pump ________________________________________________... -
Page 4: Intended Use
INTENDED USE The pump is intended for use in RVs to transfer potable/drinking water, for indoor use only. The pump is intended for intermittent or continuous duty when the proper operating criteria is met. The technical specifications for your pump are provided in the Specifications section of this manual. Follow all safety precautions presented throughout the manual. -
Page 5: Summary Of Important Safety Information
SUMMARY OF IMPORTANT INFORMATION WARNING: Read and understand this owner’s manual completely before using the pump, particularly the plumbing section. Improper use of the pump could result in serious injury or illness for the operator or nearby persons/animals, or cause damage to the environment. LISTED BELOW is a summary of safety information of particular importance. -
Page 6: Warning Label Location
Always make sure warning labels are in place and in good condition. If a warning label is missing or not legible, order new labels or unsafe operation could result. To order replacement warning labels, please call Aussie Traveller on 1300 663 868. 7.6LPM 11.4LPM... -
Page 7: Installation
To insert quick connect fittings, lubricate O-ring with water and twist fitting while inserting into pump port. MODEL PORTS MINIMUM INLET HOSE SIZE MINIMUM OUTLET HOSE SIZE 7.6LPM 3/4" Quick Connect 1/2" (12mm) Inside diameter 1/2" (12mm) Inside diameter 11.4LPM 1/2”... -
Page 8: Step Four: Connect Pump To 12V Dc Power Supply
Use an approved wire of the size specified below or heavier. MODEL VOLTAGE FUSE AMP WIRE LEADS WIRE SIZE (STRANDED MTW) RED (positive +) 7.6LPM 12V DC #14 AWG (2.5mm ) or heavier BLACK (negative -) RED (positive +) 11.4LPM 12V DC #14 AWG (2.5mm... -
Page 9: Step Five: Check And Test The Installation Of The Pump
Inspect hoses/lines for exposed mesh and holes. Replace all worn or damaged hoses/lines. b. Inspect fittings for cracks and leaks. Replace Aussie Traveller pump if needed. c. Partially fill system with CLEAN potable water and turn on to test for leaks. Repair as needed. -
Page 10: Operation
OPERATION — USING THE PUMP STEP ONE: OPERATE THE PUMP: WARNING ALWAYS wear personal protective equipment when operating or servicing the pump. 1. REVIEW SAFETY INFORMATION Review the Summary of Important Information section provided in this manual. 2. WEAR PERSONAL PROTECTIVE EQUIPMENT Wear personal protective equipment as needed. -
Page 11: Step Two: Clean Pump After Each Use
OPERATION — USING THE PUMP (CONTINUED) STEP TWO: CLEAN PUMP AFTER EACH USE The pump should always be stored indoors. For long term or winter storage, prepare the pump by running RV antifreeze through the system. This will keep internal parts lubricated, protect against corrosion, and keep the unit from freezing. CAUTION ... - Page 12 STORAGE (CONTINUED) 4. SANITISE (CONT.) Sanitise your potable water system. 1. Determine the size of your water system, the potable water holding tank, plus the hot water tank and 15 litres for your water lines, depending on your set up. Refer to your owner’s manual. 2.
-
Page 13: Troubleshooting
TROUBLESHOOTING WARNING Before troubleshooting or attempting to service, read the following safety rules to avoid risk of electric shock. BEFORE ATTEMPTING TO SERVICE THE PUMP: 1. PERSONAL PROTECTIVE EQUIPMENT Wear personal protective equipment while servicing your pump. 2. REVIEW TROUBLE SHOOTING TABLE Review the troubleshooting table below for the type of problem you are experiencing. -
Page 14: Specifications
SPECIFICATIONS (CONTINUED) MODEL 7.6LPM 11.4LPM PART NUMBER 266701001 266701002 ELECTRICAL CONNECTION 12V DC 12V DC AVERAGE OPERATING AMP DRAW 5.5 Amps 5.5 Amps MAXIMUM AMP DRAW 9.5 Amps 9.5 Amps MAXIMUM FLOW 2.0 GPM [7.6 LPM] 3.0 GPM [11.4 LPM] MAXIMUM PRESSURE 60 PSI [4.1 bar]... - Page 15 SPECIFICATIONS (CONTINUED) TECHNICAL DRAWING 266701001 7.6LPM PART NUMBER: 1300 663 868 | enquiries@aussietraveller.com.au | aussietraveller.com.au BRISBANE SHOWROOM: 11-15 Oasis Court, Clontarf QLD 4019 | MELBOURNE SHOWROOM: 235 Barry Road, Campbellfield VIC 3061...
- Page 16 SPECIFICATIONS (CONTINUED) TECHNICAL DRAWING 266701002 11.4LPM PART NUMBER: 1300 663 868 | enquiries@aussietraveller.com.au | aussietraveller.com.au BRISBANE SHOWROOM: 11-15 Oasis Court, Clontarf QLD 4019 | MELBOURNE SHOWROOM: 235 Barry Road, Campbellfield VIC 3061...
-
Page 17: Accessories
05100050004020 05100050001040 05100050004040 PART NUMBER DESCRIPTION INCLUDED WITH MODEL 05100050001010 QC - 1/2” Hose Barb Straight Fit 7.6LPM 05100050001020 QC - 1/2” Hose Barb Elbow Fit 7.6LPM 05100050001040 QC - RV Pump Filter 7.6LPM 05100050004010 NPSM - 1/2” Hose Barb Straight Fit 11.4LPM... - Page 18 EXPLODED VIEW - 7.6LPM REFERENCE NUMBER PART NUMBER DESCRIPTION 801452 Pressure switch assembly A2060R Complete pump head assembly 789952 Motor assembly, 7.6LPM 1300 663 868 | enquiries@aussietraveller.com.au | aussietraveller.com.au BRISBANE SHOWROOM: 11-15 Oasis Court, Clontarf QLD 4019 | MELBOURNE SHOWROOM: 235 Barry Road, Campbellfield VIC 3061...
- Page 19 EXPLODED VIEW - 11.4LPM FIG.06683 REFERENCE NUMBER PART NUMBER DESCRIPTION 801452 Pressure switch assembly A3055R Complete pump head assembly 789888 Motor assembly, 11.4LPM 1300 663 868 | enquiries@aussietraveller.com.au | aussietraveller.com.au BRISBANE SHOWROOM: 11-15 Oasis Court, Clontarf QLD 4019 | MELBOURNE SHOWROOM: 235 Barry Road, Campbellfield VIC 3061...
- Page 20 Product to the wholesale purchaser. 3. If the Product is purchased directly from Aussie Traveller for use by final retail customer and not to be on sold in any way, the Warranty will commence at the time of the original purchase.
- Page 21 Product, the final retail customer must pay Aussie Traveller’s usual costs of service work and testing. The final retail customer must bear the cost of the transport of the Product to and from Aussie Traveller or the authorised repair agent, and all insurance of the Product.
