RTS MDA-100 User Manual

Mixing distribution amplifier
Hide thumbs Also See for MDA-100:

Advertisement

Quick Links

USER MANUAL
MODEL MDA-100
Mixing Distribution Amplifier
9350-71 04-00 Rev
D
6/00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MDA-100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for RTS MDA-100

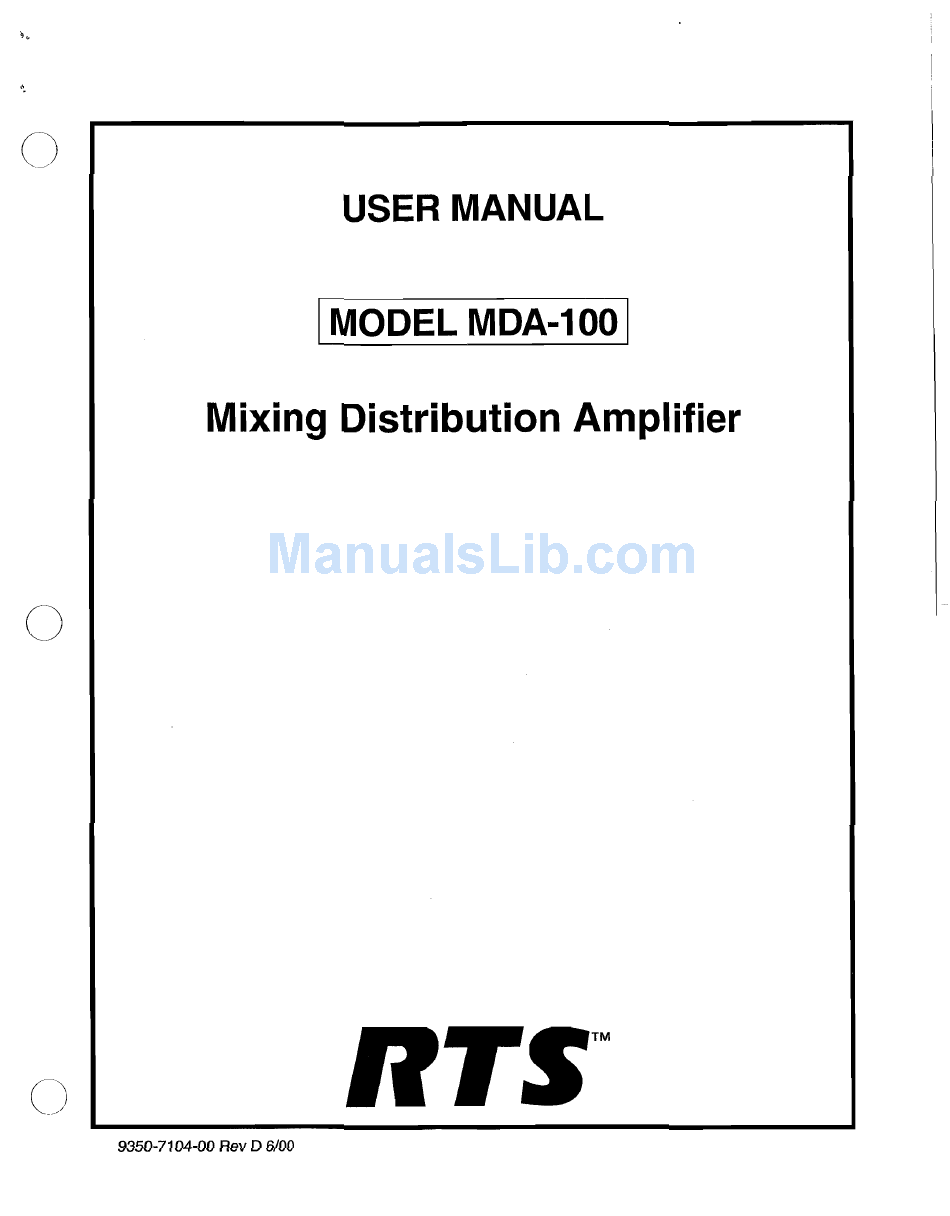

  • Page 1 USER MANUAL MODEL MDA-100 Mixing Distribution Amplifier 9350-71 04-00 Rev 6/00...
  • Page 2 SAFETY SUMMARY POWER SOURCE This equipment is designed to operate from an AC power source as described in the electrical specifications. GROUNDING The chassis of this product is grounded through the grounding pin of the line cord. To avoid electrical shock, with the power off, lug the line cord into a properly wired receptacle before making any input or output connections with ot er devices.
  • Page 3: Section 1 Description And Specifications

    8 x 1 summing amplifier (mixer) and a 1 x 8 distribution amplifier in a case that is 1 rack unit high. The MDA-100 is useful, for example, in camera control (CCU), where multiple camera operators have to talk and listen to one master control location.
  • Page 4: Section 2 Installation

    SECTION 2 INSTALLATION 2.1 UNPACKING Unpack the MDA-100 and verify that you have received the following: (1) MDA-100 Mixing Distribution Amplifier (1) Molex Connector Kit (1) AC Line Cord (1) Instruction Manud It is important that all articles be thoroughly inspected immediately upon receipt.
  • Page 6: Section 3: Parts Lists

    SECTION 3: PARTS LISTS TO OBTAIN PARTS (> Parts may be obtained directly from Telex Communications, Inc.: Telex Communications, Inc. 12000 Portland Avenue South, MN 55337 Burnsville, Telephone: (877) 863-4169 Fax: (800) 323-0498 3.2 FINAL ASSEMBLY Qty. RTS Part No.
  • Page 7 AUDIO...
  • Page 8 I N 5 0 6 0 IN5060 ' l i ' I N 5 2 5 6 3 0 V L A S T USED C 2 6 R 4 9 MDA-100 C R ~ POWER SUPPLY SCHEMATIC REG 2 O A R...
  • Page 9 NOTES : A F T E R ASSEMBLY, ADD JUMPERS.- I 0 4 PIN 7 TO LC3 P I N 7 ( I ) (SOLID TRACE RIGHT BESIDE I C 4 P I N 7 ) ( 2 ) I C 4 P l N Z T O 4 K 9 9 A T 2 2 p f E N D O F 4 K 9 9 CAP.
