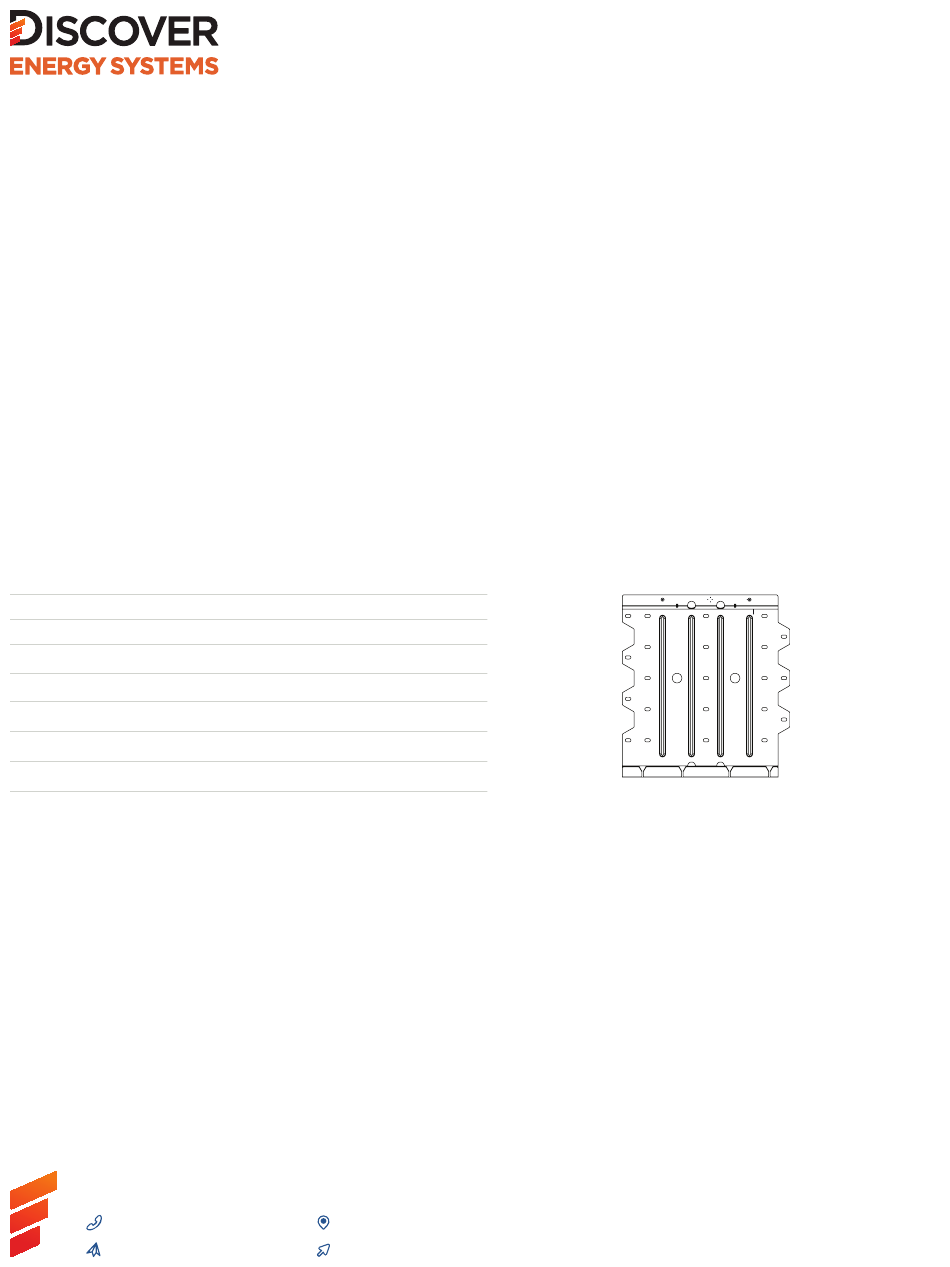

INSTALLATION GUIDE
WALL MOUNT BRACKET
FOR AES BATTERY: 42-48-6650, 44-48-3000
1. Safety
1.1 Warnings, Cautions, Notes and Symbols
2. Installation
2.1 Tools and Hardware
2.2 Wall Mount Overview
2.3 Installing the Bracket
2.4 Mounting the Battery to the Bracket
+ 1.778.776.3288
info@discoverlithium.com
3
3
4
4
4
5
6
#7 -13511 Crestwood Place, Richmond, BC, V6V 2E9, Canada
discoverlithium.com
805-0016 REV C
1
Advertisement
Table of Contents
Related Manuals for DISCOVER 950-0019
Summary of Contents for DISCOVER 950-0019
- Page 1 INSTALLATION GUIDE WALL MOUNT BRACKET FOR AES BATTERY: 42-48-6650, 44-48-3000 1. Safety 1.1 Warnings, Cautions, Notes and Symbols 2. Installation 2.1 Tools and Hardware 2.2 Wall Mount Overview 2.3 Installing the Bracket 2.4 Mounting the Battery to the Bracket 805-0016 REV C + 1.778.776.3288 #7 -13511 Crestwood Place, Richmond, BC, V6V 2E9, Canada info@discoverlithium.com...
- Page 2 Analyzing and reducing hazards involved in performing electrical work • Installing and configuring batteries No responsibility is assumed by Discover Energy Systems for any consequences arising out of the use of this material. Read AES Battery Manual and Safety instructions before installing the battery. + 1.778.776.3288 #7 -13511 Crestwood Place, Richmond, BC, V6V 2E9, Canada info@discoverlithium.com...
- Page 3 1. Safety 1.1 Warnings, Cautions, Notes and Symbols ▲ WARNING Important information regarding possible personal injury. ▲ CAUTION Important information regarding possible equipment damage. ▲ NOTE Additional information concerning important procedures and features of the battery. 2. Installation ▲ WARNING Heavy Equipment Each AES battery weights up to 90 kg (200 lbs).
- Page 4 4.25in 3.19in 4.25in 3.19in 1.77in 17.18 17.18in 950-0019 AES Wall Mount 950-0023 AES Wall Mount Bracket for AES 42-48-6650 Bracket for AES 44-48-3000 ▲ NOTE If the wall does not have 16 inch on-center studs, adequate support for the bracket will have to be provided. For example, a sheet of plywood can be attached to the wall, and the bracket can then be attached to the plywood.
- Page 5 2.3 Installing the Bracket Locate the wall studs. If necessary install a 3/4 inch (minimum) plywood panel or appropriate additional support panel to the wall studs. Use hardware sized to support a minimum of 227 kg (500 lbs) when installing additional support panels to the wall. The additional support must span across at least three wall studs.
- Page 6 Lower the AES Battery flange onto the bracket. Secure the top of the AES Battery to the two PEM studs with M8 nuts (included). Torque nuts to 1.4 - 1.5 N-m (12.4 - 13.3 in-lbs). Discover AES Mounting Plate + 1.778.776.3288 #7 -13511 Crestwood Place, Richmond, BC, V6V 2E9, Canada info@discoverlithium.com...
