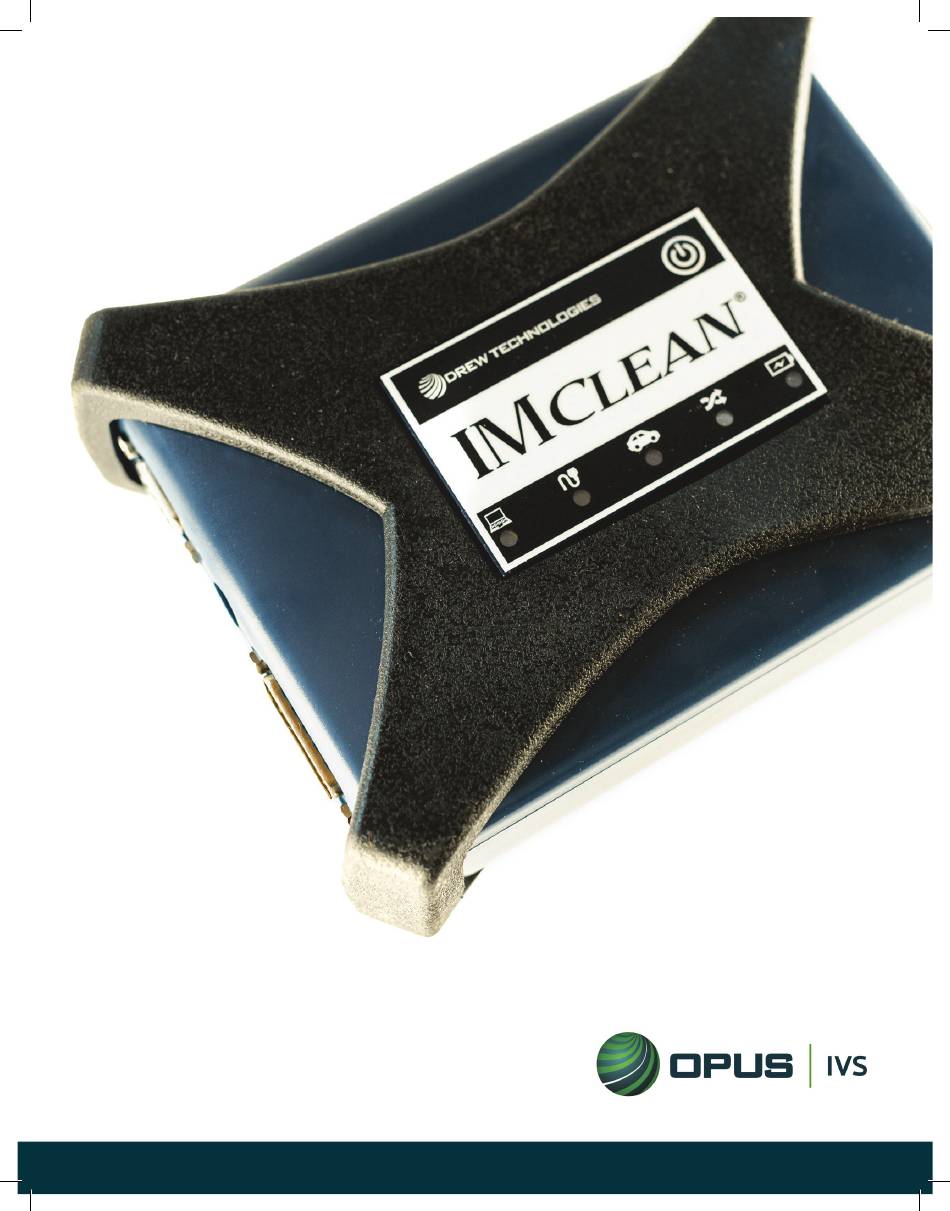

- Page 1 IMclean DAD4 M A N U A L FORMERL Y DREW TECHNOLOGY FORMERL Y DREW TECHNOLOGY...
-
Page 2: Table Of Contents
CONTENTS Contents of Box ................Installing DAD4 Drivers ............... Updating IMclean DAD4 Drivers ..........Connect IMclean DAD4 with Bluetooth ........Performing a Self-Test ..............DAD4 Indicator Lights ..............IMclean Cables ................Initial IMclean Setup ..............Selecting Your IMclean Gen4 in California BAR OIS ..... Uninstalling Your DAD .............. -
Page 3: Contents Of Box
IMCLEAN GEN4 CONTENTS OF BOX 1 IMcleanGEN4-BT-03 unit 1 IMclean External Charger 1 Bluetooth Dongle 1 IMclean Cigarette Lighter Cable 15 1 IMclean OBD2 Cable 9 1 IMclean USB Cable 6 1 IMcleanself-Test Cable 1 IMcleanGEN4-BT-03 Manual... -
Page 4: Installing Dad4 Drivers
INSTALLING DAD4 DRIVERS Navigate to www.opusivs.com Choose Support > Downloads ® Scroll to IMclean DAD4. Click on the DOWNLOAD link. Open Downloads folder. Double-click the downloaded “IMcleanGen4_setup” to run. IMclean DAD4 Manual... - Page 5 Read the End-User License Agreement and check the "I accept..." box. Click Install. Follow on-screen prompts to complete installation. Click Finish. Connect the IMclean to the USB cable and plug the USB cable into your PC.
-
Page 6: Updating Imclean Dad4 Drivers
UPDATING IMCLEAN DAD4 DRIVERS Open this folder > C:\Program Files (x86) > Drew Technologies, Inc > IM_DA > IMCleanUpdater Windows (C:) > Program Files (x86) > Drew Technologies, Inc > IM_DA Double-click IMcleanUpdater to run. Confirm that the USB cable and vehicle cable are plugged into the IMclean DAD4. - Page 7 Click Update Now Follow on-screen directions. Click OK.
-
Page 8: Connect Imclean Dad4 With Bluetooth
CONNECT IMCLEAN DAD4 WITH BLUETOOTH PAIRING CODE/PIN IS: 2534 Note: the USB cable can not be connected at all if you wish to use Bluetooth Insert the Bluetooth dongle into a USB port on your PC (if your PC does not have built-in Bluetooth). Note: if your computer already has an internal Bluetooth antenna, do not use the USB Bluetooth dongle supplied with the kit. - Page 9 Wait until you see “IMclean-GEN4-######” and click on it. You may be prompted to enter a pairing code. The code is 2534. You may only have one (1) IMclean BT paired with your PC at any time. The IMclean driver will inform you if you have multiple devices paired to your PC and will stop functioning.
-
Page 10: Performing A Self-Test
Confirm that the USB cable and vehicle cable are plugged into the IMclean DAD4. Click OK. Open this folder > C:\Program Files (x86) > Drew Technologies, Inc > IM_DA > IMCLeanUpdater Windows (C:) > Program Files (x86) > Drew Technologies, Inc > IM_DA IMclean DAD4 Manual... - Page 11 Click Next. Click OK. Click Next.
- Page 12 Click “Run a Self Check”. Click “Perform a Self Check”. IMclean DAD4 Manual...
- Page 13 If the DAD does not pass the test, leave this screen up when you contact Technical Support as it will help them diagnose the issue you are having. a. Pass Example: b. Fail Example: IMCLEAN DAD ERROR CODE STRING INFORMATION: Code 0: Passed the test Code 7 or 8: •...
-
Page 14: Dad4 Indicator Lights
DAD4 INDICATOR LIGHTS BATTERY CABLE VEHICLE PROTOCOL Green = OK Green = vehicle Green flashing = Green = Slower Green Flash = USB OK Charged — Not connected communicating Red = no cable with vehicle charging anymore No indication = Fast Green Flash connected, or = Pairing Mode... -
Page 15: Imclean Cables
IMCLEAN CABLES The cables provided with the IMclean are proprietary. Attempting to use the IMclean with cables not produced by Drew Technologies will cause the IMclean to not communicate with vehicles or the PC. Using a NON-DrewTech vehicle cable will cause the cable light to be red on the IMclean. -
Page 16: Support And Warranty Information
SUPPORT AND WARRANTY INFORMATION BAR-OIS • BAR Help Desk: (866) 860-8509 • BAR Home Page: https://www.bar.ca.gov/Industry/BAR-OIS • BAR-OIS Software Download (Scroll to bottom): https://start.calbarois.com/calvis-registration/ • BAR Contact Page: https://www.bar.ca.gov/Contact_Us Opus IVS • Opus IVS Downloads page: https://www.opusivs.com/support/downloads • (877) 888-2534 Option (2 → 3) •...
