USER MANUAL
Line Monitor Speaker
Rev E !
7/00
9350-7490-000

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LMS-325 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RTS LMS-325

Summary of Contents for RTS LMS-325

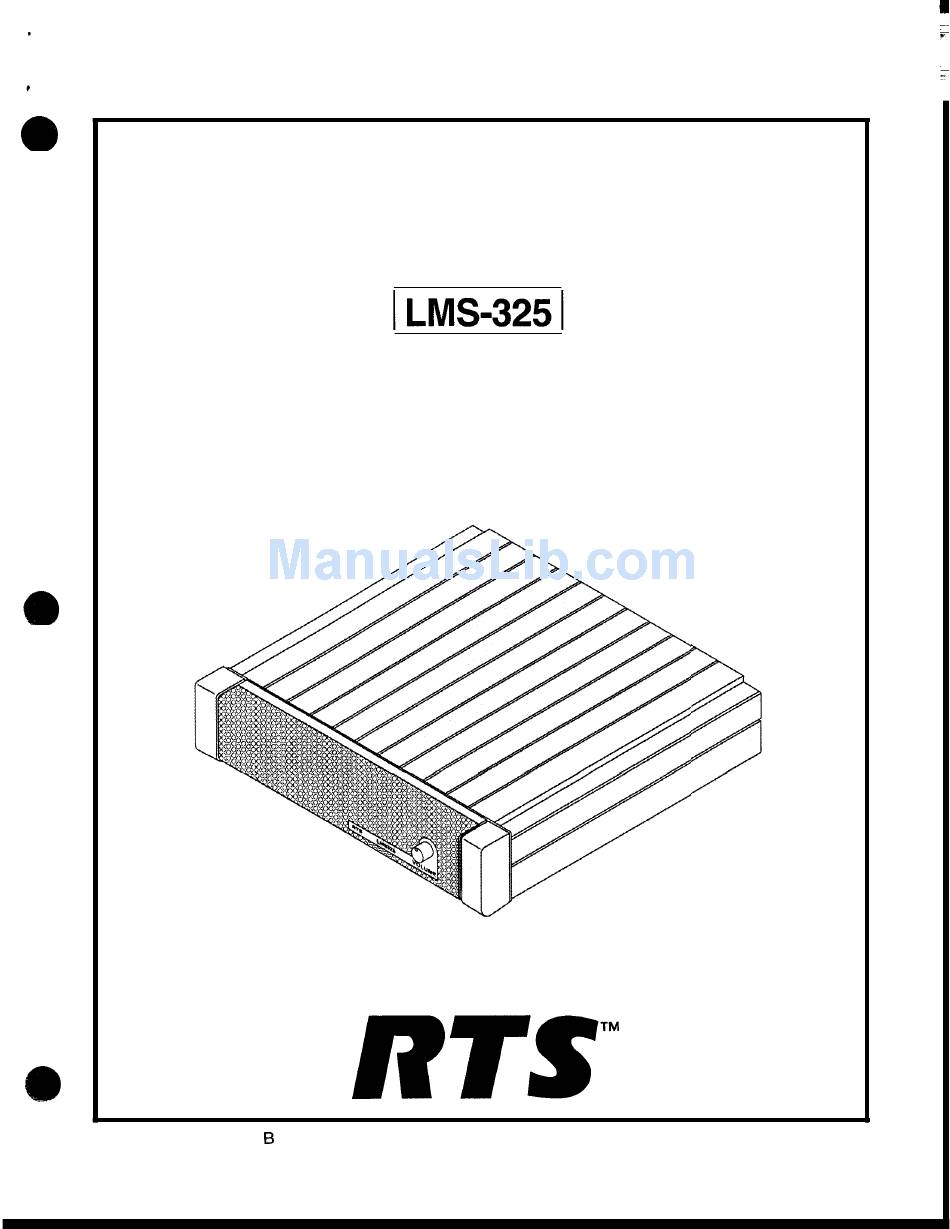

  • Page 1 USER MANUAL Line Monitor Speaker RTSTM Rev E ! 7/00 9350-7490-000...

  • Page 2: Proprietary Notice

    PROPRIETARY NOTICE The RTSTM product information and design disclosed herein were originated by and are the property of Telex Communications, Inc. Telex reserves all patent, proprietary design, manufacturing, reproduction, use and sales rights thereto, and to any article disclosed therein, except to the extent rights are expressly granted to others.

  • Page 3: Table Of Contents

    ..........LMS-325 User Manual...

  • Page 4: Section 1: Description And Specifications

    SECTION 1 : DESCRIPTION AND GENERAL The LMS-325 is a modular amplified speaker that can be used to monitor one or program channels. The LMS-325 is a five-watt, eight-ohm modular amplified speaker for use with RTS rack or console-mounted intercom systems.

  • Page 5: Section 2: Operation

    12-15 VDC Input Jack The U S - 3 2 5 is powered from a Telex@ Wall Pack (part number 532006-000). Plug the Wall Pack into the 12-15 VDC jack and into an AC outlet.
  • Page 6 /’ ’ Figure 2-2. Optional Mounting Configurations LMS-325 User Manual...

  • Page 7: Where To Obtain Parts

    SECTION 3. REPLACEMENT PARTS WHERE TO OBTAIN PARTS Parts may be obtained directly from Telex at: TelexRTS Systems Portland Ave. S . 12000 Burnsville, MN 55337 877-863-4169 Fax: 800-323-0498 MECHANICAL PARTS FINAL ASSEMBLY .--.-.A $fer to Figure 4-1 for Item No. loc Item No.

  • Page 8: Diagrams

    SECTION 4. DIAGRAMS Drawing Number Titie 9010-7490-000 Figure 4-1. Final Assembly, LMS-325 9020-7490-000 Figure 4-2. Speaker Grill Assembly, LMS-325 9030-7490-000 Figure 4-3. 9027-7490-000 Figure P. C. Board Assembly, LMS-325 4-4. Schematic, LMS-325 Manual 4-1 LMS-325 User...
  • Page 9 D1R7 ASSY 9888-7498-008 LMS-325 Figure 9030-7490-000 R E V , , , , Board Assembly...
