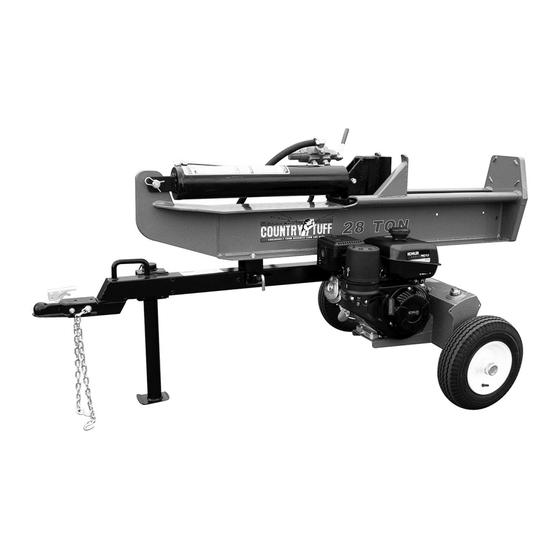

COUNTRY TUFF S401628CT Owner's Manual

28 ton vertical/horizontal

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

ASSEMBLY & OPERATING INSTRUCTIONS

WARNING:

splitter. Follow the safety instructions in the manual and in decals attached

to the product. Failure to do so could result in serious injury or death.

LS190-886-0811

Rev. 1

28 TON VERTICAL/HORIZONTAL

28 TON VERTICAL/HORIZON-

TAL

MODEL NO.

S401628CT

Owner's Manual

All operators must read this manual before operating this log

LOG SPLITTER

Table of Contents

Need help?

Do you have a question about the S401628CT and is the answer not in the manual?

Questions and answers

Summary of Contents for COUNTRY TUFF S401628CT

Page 1 28 TON VERTICAL/HORIZONTAL 28 TON VERTICAL/HORIZON- LOG SPLITTER MODEL NO. S401628CT Owner’s Manual ASSEMBLY & OPERATING INSTRUCTIONS WARNING: All operators must read this manual before operating this log splitter. Follow the safety instructions in the manual and in decals attached to the product.
Page 2: Table Of Contents
Table of Contents Page(s) Important Safety Information......................... Intended Use ......................... Personal Protective Equipment ....................Safety Decals ........................General Safety ........................Preparation of the Log ......................Work Area ........................... Operation of the Log Splitter ....................Repair and Maintenance Safety ..................... Hydraulic Safety ........................Fire Prevention ........................
Page 3: Important Safety Information
WARNING: Read and thoroughly understand all instructions and safety information before assem- bling or operating this log splitter. Failure to do so may cause serious injury or death. Do not allow anyone to operate this log splitter who has not read this manual. As with all power equipment, a log splitter can be dangerous if assembled or used improperly.
Page 4 PART NUMBER: S52062200 LOCATION: TOP, LOWER END OF CYLINDER PART NUMBER: S52062300 PART NUMBER: S52062600 LOCATION: RIGHT STRIPPER LOCATION: LEFT STRIPPER PLATE PLATE PART NUMBER: S52062100 LOCATION: TOP OF HYDRAULIC PART NUMBER: S52062400 CYLINDER LOCATION: HYDRAULIC TANK LOWER TANK, RIGHT CORNER Page 2...
Page 5: General Safety
GENERAL SAFETY Failure to follow these instructions may result in serious injury or death. ALWAYSEread the operator’s manual before operation. It is located in the plastic canister on the tongue. EVER NEVER allow children to operate this log splitter. NEVER allow adults lacking proper instructions and understanding to operate this log splitter.
Page 6: Repair And Maintenance Safety
KNOW how to stop the log splitter and disengage the controls before operating it. NEVER place hands or feet between the log and splitting wedge during forward or reverse stroke. Serious injury or death could result. NEVER straddle or step over the log splitter during operation. NEVER reach or bend over the log splitter to pick up a log.
Page 7: Hydraulic Safety
HYDRAULIC SAFETY The hydraulic system of your log splitter requires careful inspection along with the mechanical parts. Be sure to replace frayed, kinked, cracked or otherwise damaged hydraulic hoses or hydraulic components. NEVER check for leaks of hydraulic fluid with your hand. Fluid escaping from a small hole can be almost invisible. Escaping fluid under pressure can have sufficient force to penetrate skin causing serious personal injury or even death. Leaks can be detected by passing a piece of cardboard over the suspected leak and looking for discoloration. ALWAYS seek professional medical attention immediately if injured by escaping hydraulic fluid. Serious infection or reac- tion can develop if proper medical treatment is not administered immediately. ALWAYS be sure to relieve all pressure by shutting off the engine and moving the valve control handle back and forth should it become necessary to loosen or remove any hydraulic fitting.
Page 8: Towing Safety
IMPORTANT NOTE: This log splitter is equipped with an internal combustion engine and should not be used on or near any unimproved forest-covered, brush-covered or grass-covered land unless the engine’s exhaust system is equipped with a spark arrest- er meeting applicable local or state laws (if any). If a spark arrester is used, it should be maintained in efffective working order by the operator.
Page 9: Assembly Instructions
ASSEMBLY INSTRUCTIONS NOTE: This log splitter was partially assembled at the factory. Refer to the drawings and parts list should it become necessary to disassemble the unit for repair or replacement of parts REF. NO. DESCRIPTION QTY. Beam Assembly Beam Lock Assembly 1 Tank Assembly Tire and Wheel Tongue Assembly Hardware Kit STEP 1: Remove all the components from the crate. Inspect each piece for shipping damage. If any part is damaged, contact your dealer or delivering carrier.
Page 10 STEP 3: Attach the tongue assembly (5) to the tank assembly (1) using two 1/2” NC x 4-1/2” hex cap bolts (2), two 1/2” lock washers (3) and two and two 1/2” hex nuts (4). Tighten. ITEM NO. DESCRIPTION QTY. TankAssembly 1/2”...
Page 11 STEP 5: Connect the end of the 1/2” ID x 38” hydraulic pressure hose (1) coming from the fitting on the pump to the fitting on the valve. Make sure that you remove the plastic insert from the valve port. See illustrations below. STEP 6: Slide one hose clamp on the end of the 3/4” x 56” hydraulic return hose (2 ) that comes from the fitting on the filter. Then connect the hose to the fitting on the valve.Tighten hose clamp. See illustrations below. Area of DETAIL A Detail SCALE 1:3 ITEM NO. DESCRPTION QTY. 1/2” X 38” Pressure Hose 3/4” x 56” Return Hose Worm Gear Clamp STEP 7: Attach the latch (3) to the bottom side of the beam as shown in the diagram using the two 1/2” x 1-1/4” Grade 5 hex cap bolts (4), the two 1/2”...
Page 12: Replacement Parts
REPLACEMENT PARTS TANK/ENGINE ASSEMBLY BREAKDOWN ITEM NO. PART NO. DESCRIPTION QTY. 5/16”-18 UNC Nylock Nut 5/16” Flat Washer 5/16” x 1-3/4” GR5 Hex Bolt S39027400 Return Line Hose, 3/4” x 56” S39027500 1/2” x 38” Hydraulic Pressue Hose 1 S39032000 3/4”...
Page 13 BEAM ASSEMBLY BREAKDOWN ITEM NO. PART NO. DESCRIPTION 1/2” Hex Nut 1/2” Regular Lock Washer 1/2” x 3-1/4” Hex Bolt S390119B0 4.5” x 24” Hydraulic Cylinder S39032000 3/4” NPT x 3/4” Tube S39034300 1/2” NPT Nipple S39034600 1/2” Steel Tubing S39034700 1/2”...
Page 14: Operating Instructions
OPERATING INSTRUCTIONS WARNING: Read and thoroughly understand all instructions and safety information before operating this log splitter. Failure to do so may cause serious injury or death. Do not allow anyone to operate this log splitter who has not read this manual. As with all power equipment, a log splitter can be dan- gerous if assembled or used improperly.
Page 15: Operation
OPERATION WARNING: See safety information related to operation of the log splitter on page 3 and 4 of this manual. Make sure that you have the recommended personal protective equipment described on page 1. 1) Set up the log splitter in a clear, level area and block the wheels. Make sure that the suction port on the tank is always on the lower side of the log splitter.
Page 16 IMPORTANT NOTICE We, the manufacturer, reserve the right to change the product and/or specifications in this manual without notification. The manual is for information usage only and the pictures and drawings depicted herein are for reference only. NOTES Warranty Repair and Service Do not return this product to the store for warranty issues or repair. Call 1-800-525-8322 for the location of the nearest service center.
Page 17: Specifications
SPECIFICATIONS Engine Kohler CH395 277cc Pump Two-Stage, 16 gpm Cylinder 4-1/2 in. Diameter x 24 in. Stroke Valve Auto-Return Maximum Splitting Force* 28 Tons Maximum Log Length 26 in. Cycle Time* 12 Seconds Wheels 4.80 x 8 in. Wedge 7 in. High with Spreader Wings Beam Size 8in. x 10 in. with Built-In Log Cradle Hydraulic Capacity...
