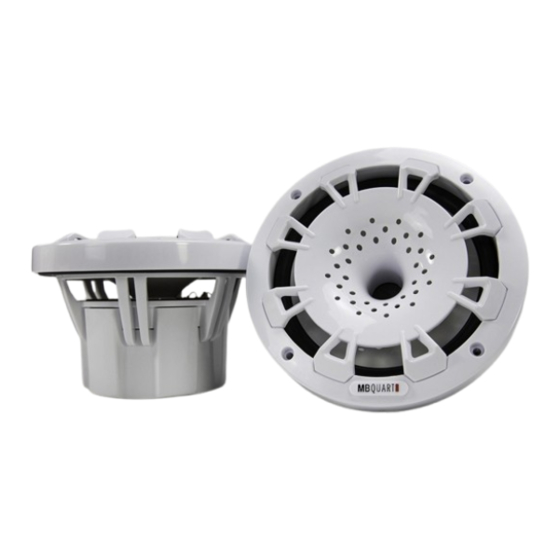

MB QUART NAUTIC NH1-116W Quick Start Installation Manual

Congratulations on your choice of a MBQuart speaker.
This "Quick Start" Installation guide is meant to help
you complete a basic installation. For more detailed
information on system setting, speaker and subwoofer
configuration, and full specifications by model, visit our
website at mbquart.com
CAUTION
Always consider consulting a professional audio installer
before installing new speakers. Many manufacturers locate
speakers behind interior panels that require special tools to
remove. Be careful and take your time.
If you are using the speaker wire supplied with your new
speakers make sure that you run the speaker wires only
through safe areas. Do not let speaker wire make contact with
metal edges or hot engine components.
Speaker Dimensions
A
D
E
A B
NH1-116B / NH1-116LB
6.87"(174) 3.44"(87) 1.14"(29)
NH1-116W
8.46"(215) 3.89"(99) 1.26"(32)
NH1-120B / NH1-120W
Before you start
It's a good idea to confirm that you have purchased the
correct size speakers to fit your application. If you have any
reservations about being able to complete the installation
yourself, we recommend contacting a professional.
Speaker Mounting Location
Choose a suitable
mounting location
C
B
Audio Signal
C D E
Positive
4.25"(108) 5.59"(142)
5.37"(137) 7.09"(180)
If you are replacing an older or inferior speaker, the
location is chosen for you. Make sure the speaker fits
properly in the hole for the old speaker.
D
If you are creating your own new location, you must be
careful to verify that there is sufficient depth to mount the
speaker.
E
Audio Signal
Negative
Wiring
C
Route signal and
Carefully select a route for the speaker wires. If
illumination wires using existing speaker wires, confirm that the wire
is in good shape and not shorted. In the case of an
illuminated model, route a positive and negative wire
from a switched +12V source.
B
Illumination
Negative
Audio Signal
Negative
Speaker installation
Confirm fit and
Once you are sure the speaker fits and has
mount speaker adequate clearance, connect the positive and
negative wires to the proper terminals. Securely
screw the speaker into place.
Illumination
Positive
Audio Signal
Positive
