GODIAG
User Manual
K103 User Manual
Statement
This is the manual of K103. Without the written permission from the
manufacturer, any company or individual shall not copy or backup it in any
form (electronic, mechanical, photocopying, recording or otherwise).This
manual is only operating instructions for K103. If any result caused by using it
on other equipment, the company does not assume any responsibility for it.
If not quality problems of K103: such as equipment failure caused by user
abuse or misuse, unauthorized disassembly, repair equipment yourself, not
operate or maintain by the instructions, lose it, the repair will not be free.
Other product names mentioned in this manual are in order to describe how
to use K103, and their owners are still the original company.
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions(1) The device may not cause harmful
interference, and(2) this device must accept any interference received,
including interference that may cause undesired operation.
Advertisement
Table of Contents
Related Manuals for GODIAG K103
Summary of Contents for GODIAG K103
- Page 1 (electronic, mechanical, photocopying, recording or otherwise).This manual is only operating instructions for K103. If any result caused by using it on other equipment, the company does not assume any responsibility for it.
-
Page 2: Table Of Contents
GODIAG User Manual Content Chapter 1: Summary………………………………………………………………………………….1 1.1 Features…………………………………………………………………………………………1 1.1.1 Advantages…………………………………………………………………………1 1.1.2 Durability……………………………………………………………………………1 1.2 Introduction of the device………………………………………………………………2 1.2.1 The introduction of the main unit…………………….…………………2 1.2.2 Introduction of accessories………………………..……………………….3 1.3 Hardware technical specification…………………………………………………….4 1.4 Functions setting…………………………………………………………………………….4 1.4.1 Functions selection…………………………………………..…………………5 1.4.2 System setting……………………………………………….……………………6... -
Page 3: Chapter 1: Summary
GODIAG User Manual Chapter1：Summary 1.1 Features 1.1.1 Advantages ⚫ Providing multi-language environment so it can be used in different countries and regions. ⚫ The main unit system uses ARM high-speed chip to keep it running fast, stable, and anti-jamming. ⚫... -
Page 4: Introduction Of The Device

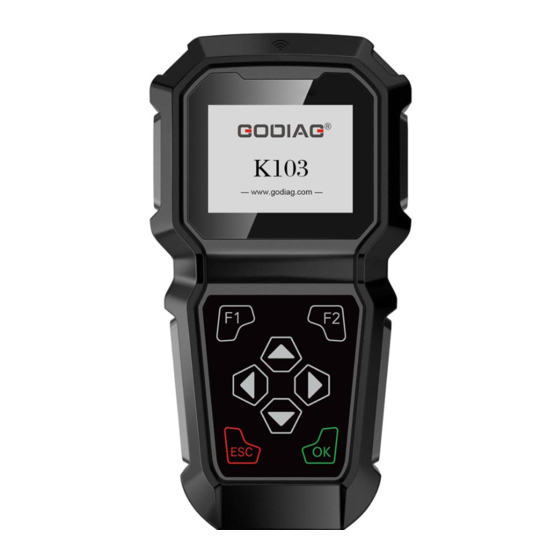

GODIAG User Manual 1.2 Introduction of the device 12.1 The introduction of the main unit Number Name Instruction ① Display Screen Show information ② Charging Interface Connect with the charger ③ TF card slot TF card storage ④ USB Interface Connect with USB cable ⑤... -
Page 5: Introduction Of Accessories
GODIAG User Manual 1.2.2 Introduction of accessories OBD 16 pin testing lead (Connect to car diagnostic socket) （USB Cable）... -
Page 6: Hardware Technical Specification
GODIAG User Manual 1.3 Hardware technical specification ⚫ Dimension: 202mm*106mm*31.6mm ⚫ CPU: ARM CORTEX M3 ⚫ Power Supply:DC12V ⚫ Operation Power:DC12V ⚫ Operation Temperature: -10~60℃ ⚫ Display Screen: 320×240 TFT 1.4 Functions Setting Power on，and then press ENTER on the screen，then enter VEHICLES，... -
Page 7: Functions Selection
GODIAG User Manual 1.4.1 Vehicles Press OK to confirm，The diagram below. Press OK to confirm the entry.The diagram below：... -
Page 8: System Setting
GODIAG User Manual Note: the number and function of different product configuration software will be different ,Please contact the dealer for confirmation of the number of software. 1.4.2 System Setting Select system setting, you can set the language, font, metric/English system, data record, as shown below. -
Page 9: Font
GODIAG User Manual 1.4.2.2 Font Choose large or small fonts 1.4.2.3 Metric/Inch Optional metric or English system... -
Page 10: Data Logging
GODIAG User Manual 1.4.2.4 Data Logging Optional to close or open 1.4.3 System Information The system information includes the product serial number, the hardware version, the software version, release date, registration password. -
Page 11: Device Self-Test
GODIAG User Manual 1.4.4 Device Self-test Liquid crystal self-check or keyboard self-check can be selected. 1.4.4.1 Keyboard self-inspection The machine self-check includes LCD display, keyboard test, such as the lack of the display screen, keyboard malfunction, please send K100 to the... -
Page 12: Chapter 2: How To Register & Update Software
GODIAG User Manual Chapter 2: How to register & update software for K100 2.1 Install the update tool 2.2 Register Step 1：Power on the device and you will see the following messages. - Page 13 GODIAG User Manual Step 2: Enter the Menu: About Step 3: Get the S/N and the Register PASSWORD: Step 4: enter Upgrade tool and start registeration: Click “Sign up” to fill in user information. Username can be English characters or the combination of alphabet and numbers.
- Page 14 GODIAG User Manual Serial number and register password can be referred to System information in the device.
-
Page 15: Software Update
GODIAG User Manual... - Page 16 GODIAG User Manual 2.3 Software Updating Operation steps as following: Step1: Connect device to computer via usb and make sure memory cord can be detected normally. Step 2: Open one key update tool and login. Step 3: Click single software or select all to update.
