ELJO SYS 8K-869MPV13 Manual

Commissioning
ELJO SYS 8K-869MPV13

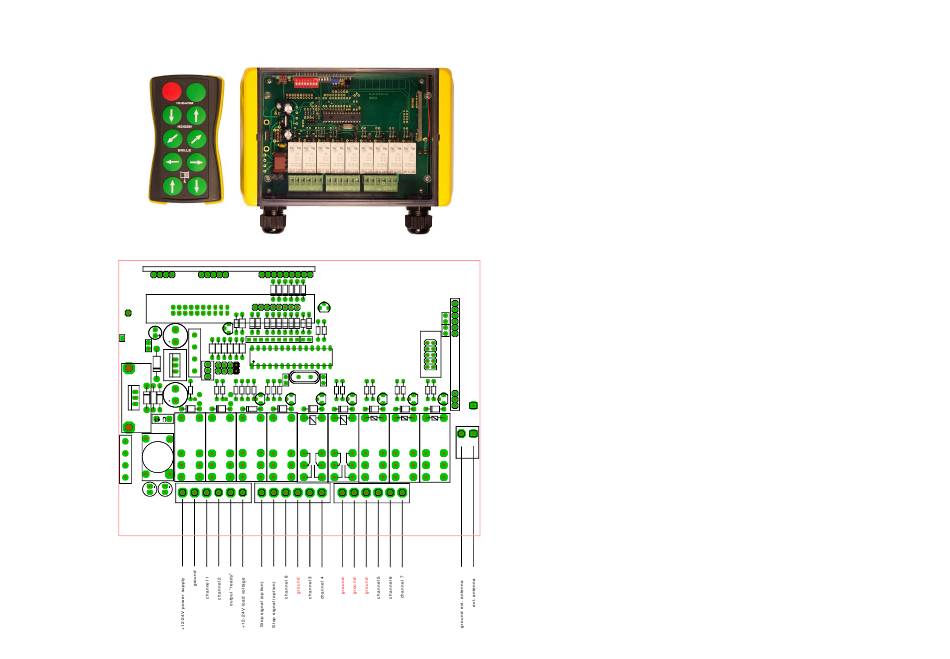

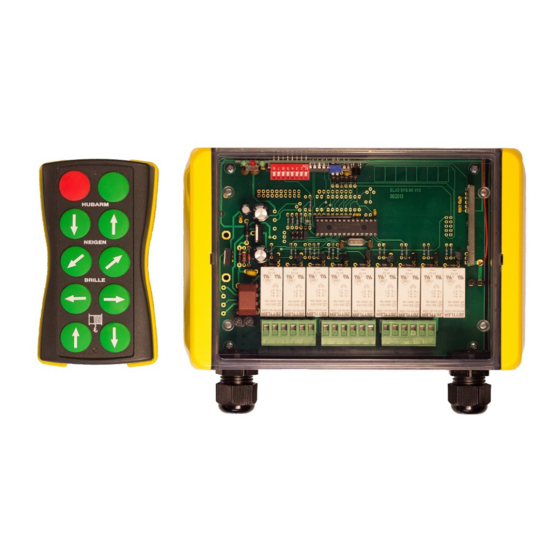

The SYS 8K-869MPV13 radio remote control system consists of the individual components
SYS 8K-869MPV13R (receiver) and the SYS 8K-869MPV13T (manual sender). The used
radio modules have obtained an approval the BZT (Federal office for approvals in the area
of telecommunication) and CEPT. The operation is free of charge. A special request at the
post office is thus not necessary. Approvals also exist in several European countries. The
certificates of approval can be made available on request.
The radio remote control system can be used for control of external resistive load with a
max. load voltage of 24VDC and 5A.
The customer is solely responsible for use of the components especially as the duty cycle is
concerned. The standard version contains an emergency stop of the cat. 0 that can be
initiated automatically or manually. (see emergency stop)
With this version integrated filters also permit to operate the receiver in interference-polluted
environments in a better way than with standard systems. (see section multiple scanning)
Security against interferences, however, cannot be guaranteed with radio remote control
systems in this frequency range.
Electromotors and any kind of switching electronic circuits can be interfering components. A
sufficient interference suppression must be observed if these components are located close
to the system.
Operation
The frequency range of 868MHZ-870 MHZ is applied for high-frequency systems for
industrial, scientific, medical, domestic and similar purposes (ISM). A protection against
interferences caused by the devices and radio remote control systems mentioned above
cannot be guaranteed when operating in this frequency range.
Warning note
The use of this remote control system is only permitted for devices and systems where a
radio interference in the sender or receiver does not cause a damage on persons or objects.
Additionally a higher-level emergency-stop system which can be activated manually should
be integrated with the component to be controlled.
The remote control of devices and systems with increased risk of accident is not allowed.
No type of crane product is allowed to be used in conjunction with this system.
The guideliners acc. To ZH1/547 are not fulfilled.
C A
This remote control system must only be operated in areas where the operating area of the
system is clearly visible.
We are not responsible for damages caused externally such as interferences or negligent
operation by the user .
Mounting
Mounting, setting and maintenance is only permitted by authorized personnel. With outdoor
installation the receiver housing must be fitted so that it is protected against direct solar
radiation and driving rain.
Mount the device on even ground since water may enter with deformation of the housing.
Fixing holes are located in the adjacent chambers of the housing.
Cable outlet towards the bottom.
Ensure correct connection of all cables. Once all components have been connected connect
supply voltage.
Supply voltage
Connect the 12...24VDC supply voltage after the settings mentioned in the following have
been made. (observe polarity). When the connection is correct, a green LED (LED1)
flashes.
It is not allowed to connect 115V or 230V .The system will be
demaged, no guarantee
