Installation INSTRUCTIONS

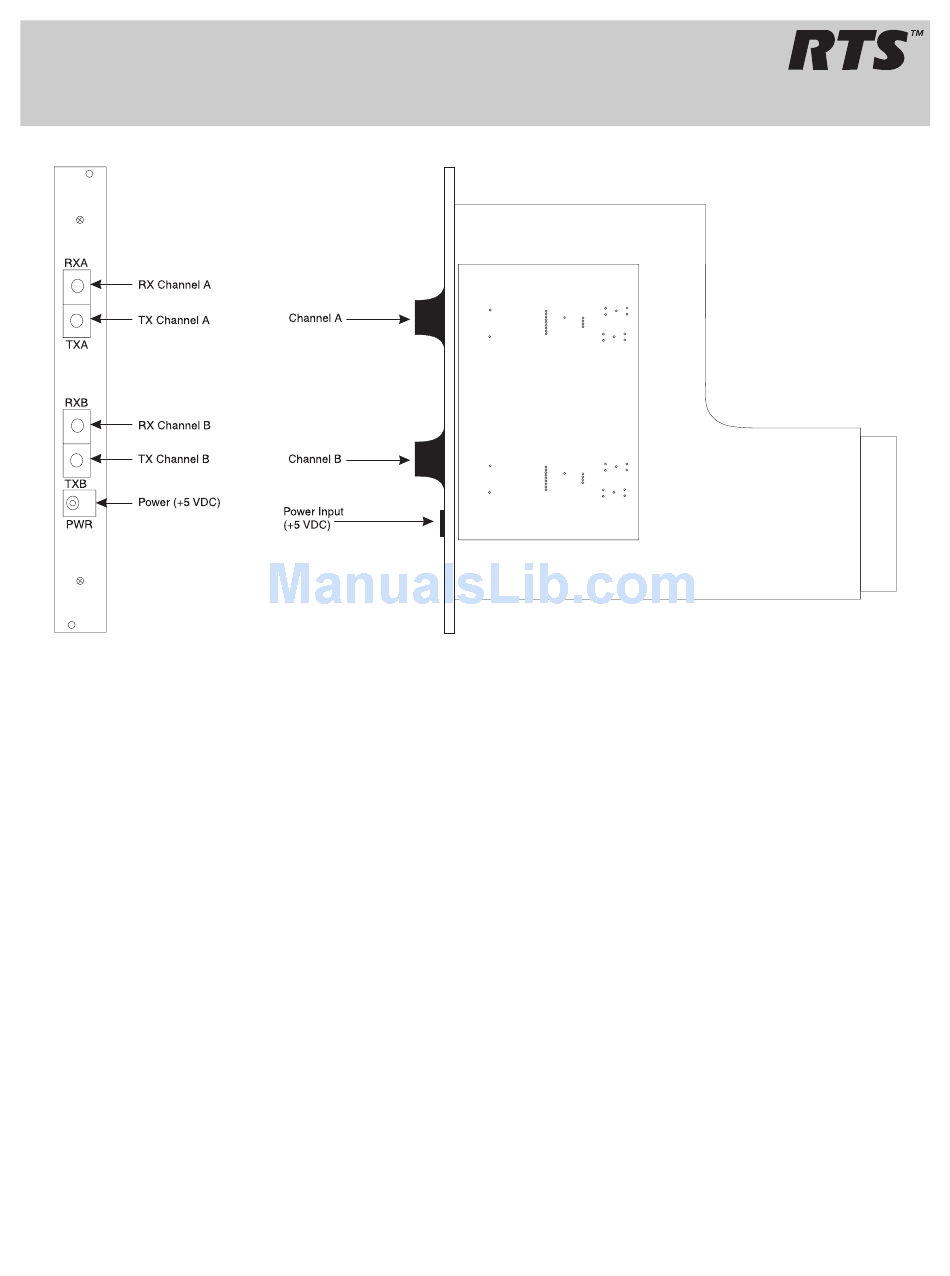

Fiber Optic Interface Back Card
Specifications
Transceiver
Type: LED
Wavelength:1300 nm
Data Rate: 25 MB/s
Maximum Distance: 1500m
Fiber Cable Type
62.5/125 µm multimode or 50/125 µm multimode
Connectors
Fiber: SC Duplex
Power: 2.1mm
Power Supply(external wall pack)
Type: Switching
Input: 100-240VAC @ 0.2A, 50/60Hz
Output: +5VDC @ 1A
Safety Notice
CLASS 1 LED PRODUCT
9050-7665-000 Rev. A, 10/2000
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for RTS Fiber Optic Interface Back Card
- Page 1 INSTALLATION INSTRUCTIONS Fiber Optic Interface Back Card Specifications Transceiver Type: LED Wavelength:1300 nm Data Rate: 25 MB/s Maximum Distance: 1500m Fiber Cable Type 62.5/125 µm multimode or 50/125 µm multimode Connectors Fiber: SC Duplex Power: 2.1mm Power Supply(external wall pack) Type: Switching Input: 100-240VAC @ 0.2A, 50/60Hz...
- Page 2 1. Remove the SBX or DBX card to be linked from its frame. 2. Remove the Coaxial back card that is to be replaced by the Fiber Optic back card. 3. Insert the back card into the slot directly behind the SBX or DBX card.
