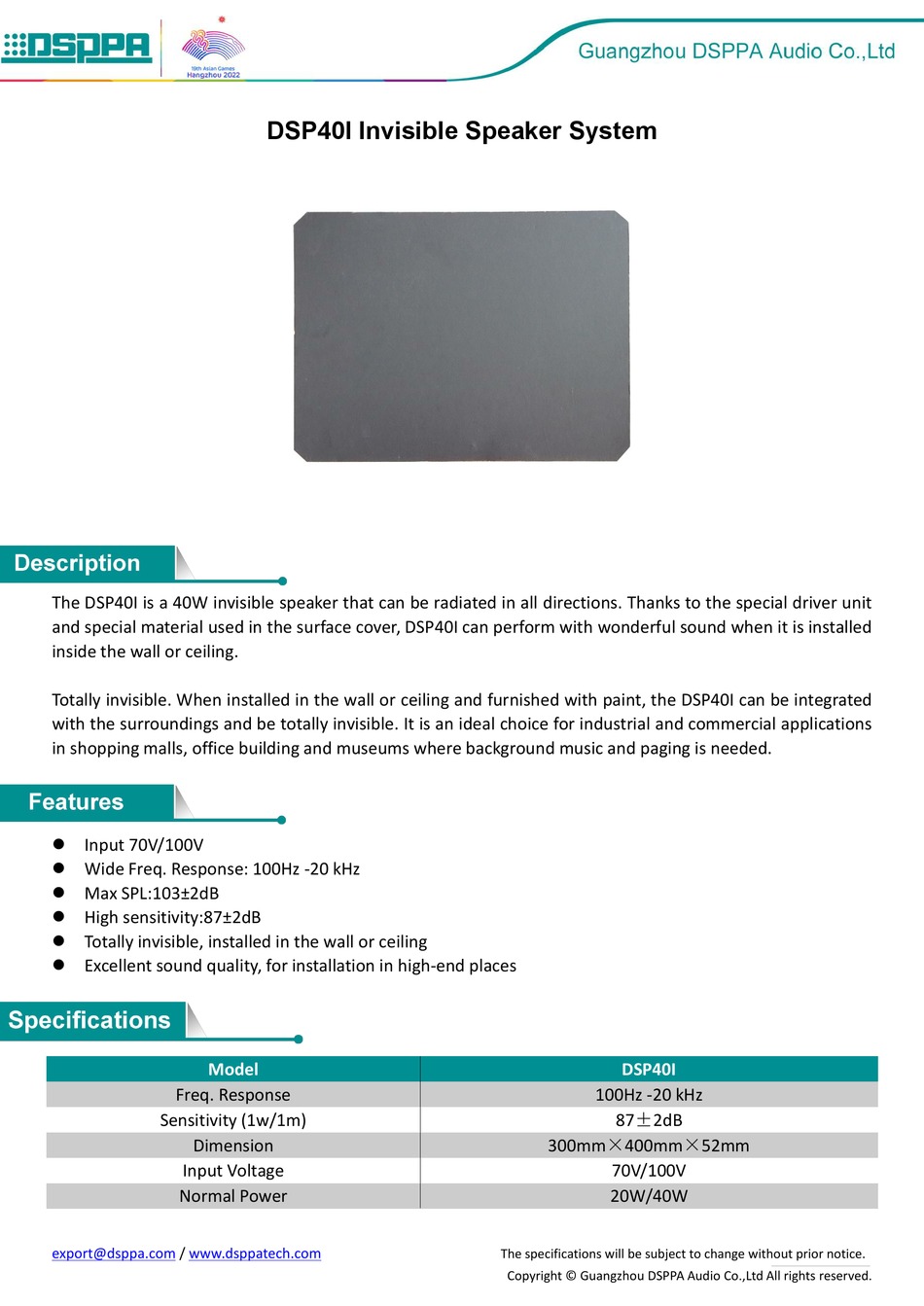

DSPPA DSP40I Quick Start Manual

The DSP40I is a 40W invisible speaker that can be radiated in all directions. Thanks to the special driver unit
and special material used in the surface cover, DSP40I can perform with wonderful sound when it is installed
inside the wall or ceiling.
Totally invisible. When installed in the wall or ceiling and furnished with paint, the DSP40I can be integrated
with the surroundings and be totally invisible. It is an ideal choice for industrial and commercial applications
in shopping malls, office building and museums where background music and paging is needed.
 Input 70V/100V
 Wide Freq. Response: 100Hz -20 kHz
 Max SPL:103±2dB
 High sensitivity:87±2dB
 Totally invisible, installed in the wall or ceiling
 Excellent sound quality, for installation in high-end places
Model
Freq. Response
Sensitivity (1w/1m)
Dimension
Input Voltage
Normal Power
export@dsppa.com / www.dsppatech.com
DSP40I Invisible Speaker System
DSP40I
100Hz -20 kHz
87±2dB
300mm×400mm×52mm
70V/100V
20W/40W
The specifications will be subject to change without prior notice.
