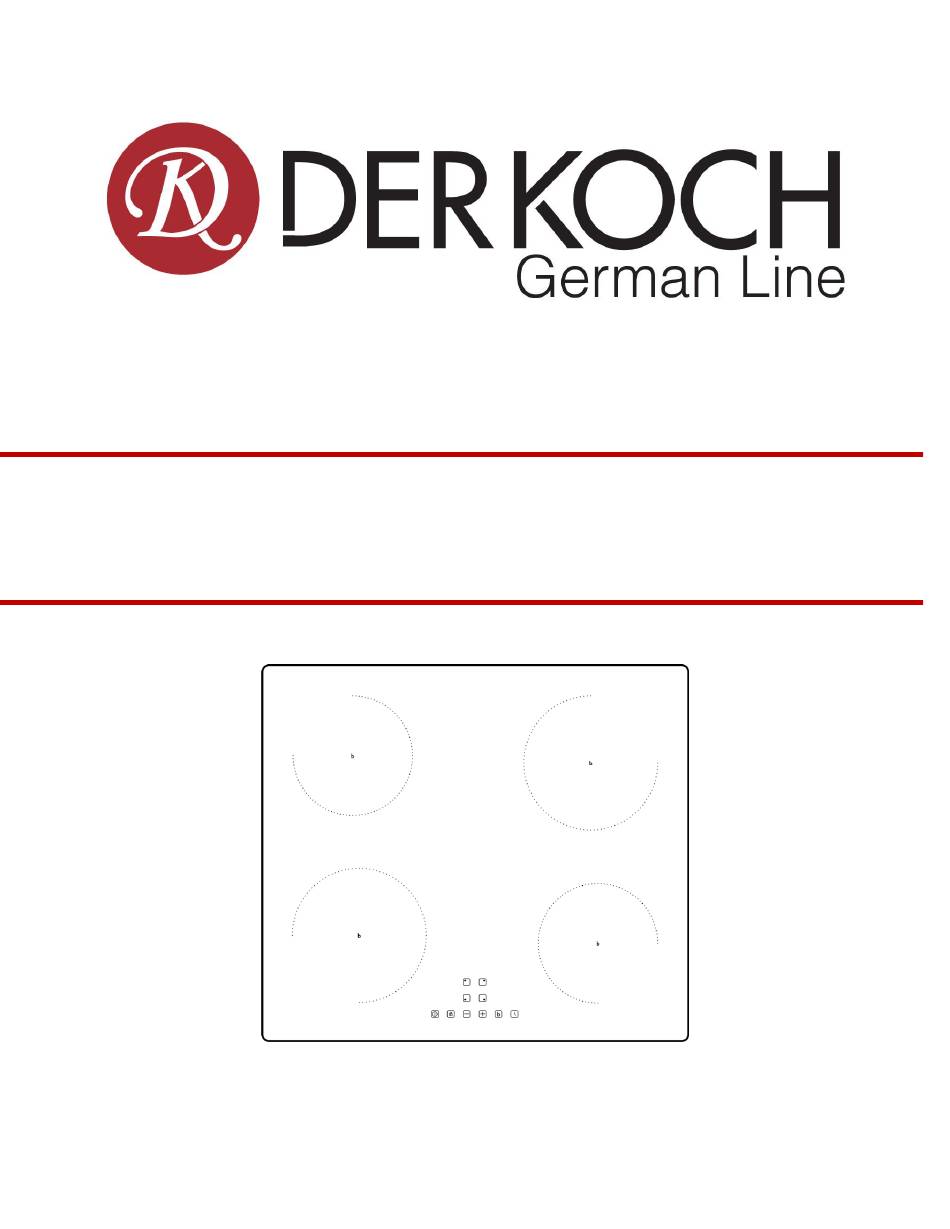

- Page 1 Installation and use manual for induction hob NORDEN-N...
-
Page 2: Table Of Contents
Contents Environmental note ..................... 3 Safety instructions ....................4 Installing the hob ....................6 Description of the appliance ................10 Using your Induction Hob .................. 12 Maintenance and cleaning ................. 20 Troubleshooting ....................22 Failure Display and Inspection ................23 Warranty Certificate ................... -
Page 3: Environmental Note
Environmental note This appliance is marked according to the European directive 2002/96/EC on Waste electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. -
Page 4: Safety Instructions
Safety instructions Important This appliance generates magnetic field in the direct vicinity. ATTENTION: People with PACEMAKERS must ensure that their pacemaker has been designed in conformity with the norms in force. It is recommended that the manufacture or your doctor is consulted to verify any incompatibility. Important This appliance generates short range magnetic field therefore people with other types of electrical medical equipment, such as hearing aids for the deaf, must ensure they... - Page 5 • If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. • WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.
-
Page 6: Installing The Hob
Installing the hob WARNING Risk of cutting. Be careful of cutting edges. End parts in foamed plastic - be careful. During transportation these could cause slight injury or cuts. Remove the material and envelope of documents from the packaging. Before proceeding with installation read the work instructions carefully. Put a towel or cloth on the work surface. - Page 7 Under any circumstance, make sure the hob is well ventilated and the air inlet and outlet are not blocked. Ensure the hob is in good work state. As shown below. Note: The safety distance between the hotplate and the cupboard above the hotplate should be at least 760mm.
- Page 8 When you have installed the hob, make sure that: • The power supply cable is not accessible through cupboard doors or drawers. • There is adequate flow of air from outside the cabinetry to the base of the hob. • If the hob is installed above a drawer or cupboard space, a thermal protection barrier is installed below the base of the hob.
- Page 9 Before connecting the hob to the mains power supply, check that: • The domestic wiring system is suitable for the power drawn by the hob. • The voltage corresponds to the value given in the rating plate. • The power supply cable sections can withstand the load specified on the rating plate. To connect the hob to the mains power supply, do not use adapters, reducers, or branching devices, as they can cause over heating and fire.
-
Page 10: Description Of The Appliance
Description of the appliance Technical Specification Model Norden-N Cooking Zones 4 Zones Supply Voltage 220-240V~ 50/60Hz Installed Electric Power 7200W Product Size D x W x H (mm) 590×520×60 Building-in Dimensions A x B (mm) 560×490 Left down: 18.0 cm For circular cooking zones or area: diameter Left up: 16.0 cm... - Page 11 NO. REFERENCE DESCRIPTION ON/OFF：Turn on or turn off the machine. CHILD LOCK: Press the button one time, it is lock. Other button can't operation when it is lock. Long press the button, it is unlock. UP：Increase the power level or add the time. DOWN：Reduce the power level or reduce the time.
-
Page 12: Using Your Induction Hob
Using your Induction Hob To Start Cooking After power on, the buzzer beeps once, all the indicators light up for 1 second then go out, indicating that the hob has entered the state of standby mode. 1. Touch the ON/OFF switch, all the indicators show ‘—’. 2. - Page 13 4. Beware of hot surface ‘H’ will show which means cooking zone is too hot to touch. It will disappear when the surface has cooled down to a safe temperature. It can also be used as an energy saving function if you want to heat further pans, use the hotplate that is still hot.
- Page 14 Using the Timer You can use the timer in two different ways: • You can use it as a minute minder. In this case, the timer will not turn any cooking zone off when the set time is up. • You can use I as cut-off timer to turn one or more cooking zones off after time is up.
- Page 15 6. When the time is set, it will begin to count down immediately. The display will show the remaining time. NOTE: there will be a red dot in the right bottom corner of power level indication which indicating that zone is selected. 7.
- Page 16 Residual heating warming When the hob has been operating for some time, there will be some residual heat. The letter ‘H’ appears to warm you to keep away from it. Heat settings HEAT SETTING SUITABILITY - delicate warming for small amounts of food - melting chocolate, butter, and foods that burn quickly.
- Page 17 Using the Touch Controls • The controls respond to touch, so you don’t need to apply any pressure. • Use the ball of your finger, not its tip. • You will hear a beep each time a touch is registered. •...
- Page 18 • The pots and pans that can be used on this hob must be made of ferromagnetic material. They can be made of enameied steel, cast iron or special pans of stainless steel for induction. The diameter of the pan should be at least 12cm. Size of burner (diameter/mm) The minimum cookware (diameter/mm) Safety reminding...
- Page 19 Do not place rough or If the surface is cracked, pull Do not put any detergents uneven appliances, which out the plug to avoid the or flammable materials in may damage the ceramic possibility of electric shock. the equipment installed surface.
-
Page 20: Maintenance And Cleaning
Maintenance and cleaning The settings below are guidelines only. The exact setting will depend on several factors, including your cookware and the amount you are cooking. Experiment with the cooktop to find the settings that best suit you. What? How? Important! 1. - Page 21 1.Please shut off the power and pull out the plug before cleaning of the appliance. 2.Clean the appliance until it cools down completely. 3.To remove dirt, please select illustrious detergent. 4.After removing dirt, please use neat wet cloth to clean the unit. 5.Do not clean by water directly, water gets inside may cause malfunction.
-
Page 22: Troubleshooting
Abrasive powders or detergents, spray products for ovens, whitening products, sponges with abrasive surfaces, steel wool balls or synthetic ones. These products could seriously damage your hob. Troubleshooting Problem Possible causes What to do The cooktop cannot No power. Make sure the cooktop is connected be turned on. -
Page 23: Failure Display And Inspection
Fan noise coming A cooling fan built into your This is normal and needs no action. from the induction induction hob has come on Do not switch the power to the hob. to prevent the electronics induction hob off at the wall while from overheating. -
Page 24: Warranty Certificate
This guarantee is void if it is confirmed that a mechanism has been manipulated by another person or workshop not authorized by us. If the item does not work properly, please immediately notify your distributor or write to info@derkochline.com Invoice No: _________________________ Date of purchase: ____________________ Induction hob model: Norden-N www.derkochline.com...
