Summary of Contents for Suresense A202

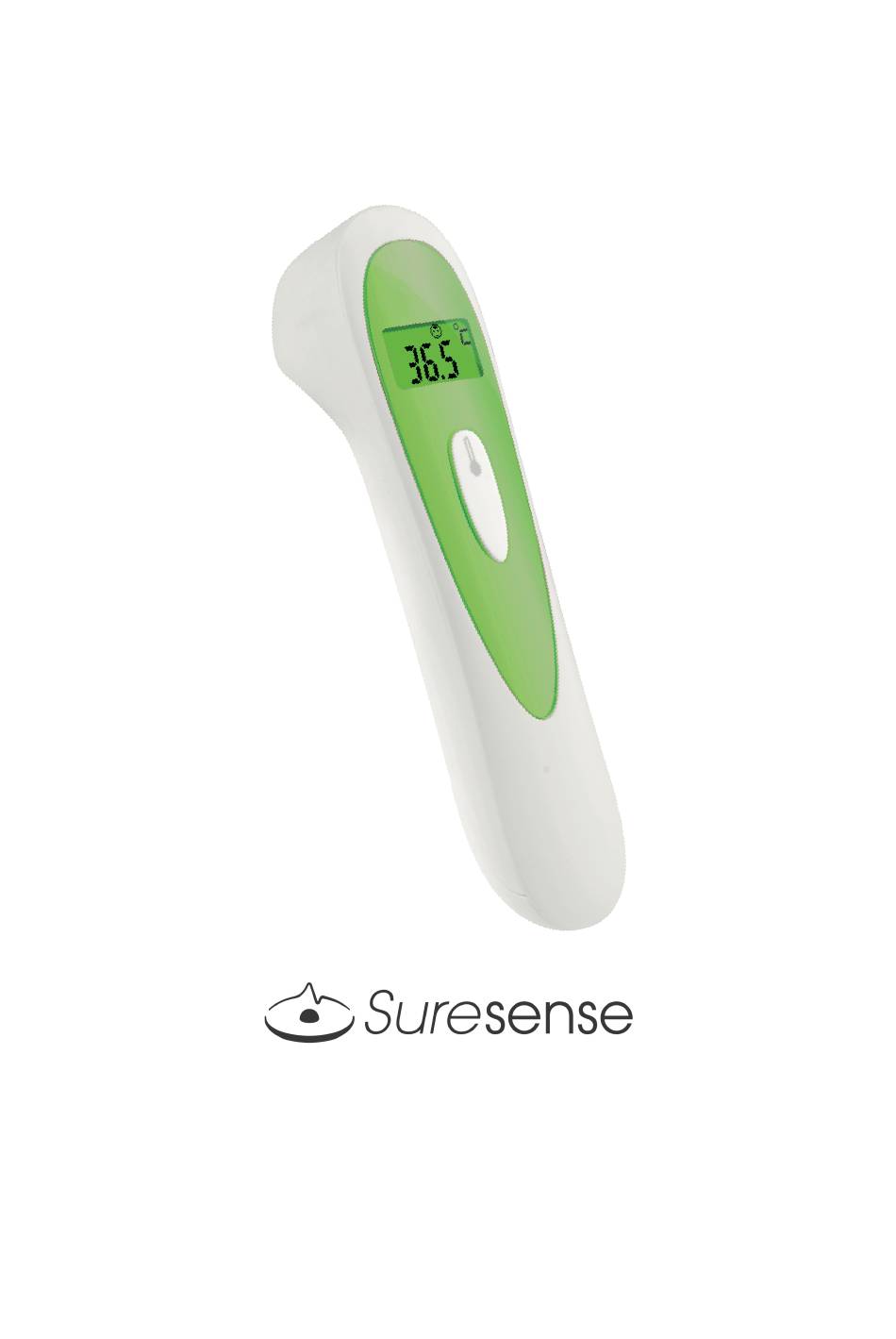

- Page 1 User Manual INFRARED THERMOMETER Product: Infrared Thermometer Product Code: A202 ReOrder Code: BHC-DIGTHER Please note: This medical device must be used according to instructions to ensure accurate readings Version: V1.1 (19/6/2020)
- Page 2 Suresense Infrared Thermometer User Manual V1.1 (19/6/2020) Section 1 Safety 1.1 Instructions for the Safe Operation and Use The following basic safety precautions should always be taken. Close supervision is necessary when the thermometer is used by, on, or near children, handicapped persons or invalids.
-
Page 3: Section 2 Introduction
2.2 Intended Use A202 Infrared Thermometer is intended for the intermittent measurement and monitoring of human body temperature from forehead measurement at home, clinics and hospital. A control measurement using a conventional thermometer is recommended in the following cases: If the reading is surprisingly low. - Page 4 Suresense Infrared Thermometer User Manual V1.1 (19/6/2020) 2.6 Display Screen 1. Body mode icon 2. Object mode icon 3. Memory icon 4. Temperature reading 5. Temperature unit 6. Battery icon 2.7 Display Mode Two modes can be selected. Body Mode...
-
Page 5: Section 3 Detailed Information
Vasoconstriction, an effect which constricts the blood vessels and cools the skin, can occur during the early stages of a fever. In this case, the temperature measured by the A202 Infrared thermometer may be unusually low. If the measurement therefore does not match the patient’s own perception or is unusually low, repeat the measurement every 15 minutes. - Page 6 If the probe is placed at an angle close to the forehead measurement, the reading will be affected by surrounding temperature. Babies’ skin reacts very quickly to the ambient temperature. Therefore, do not take their temperature with the A202 Infrared thermometer during or after breastfeeding, because the skin temperature may then be lower than the internal body temperature.
-
Page 7: Section 4 Troubleshooting And Maintenance
Suresense Infrared Thermometer User Manual V1.1 (19/6/2020) Each time you press the Memory button, a result will be displayed in the order of dates (latest result shown first), together with “MEM” and number (from 1 to 25). LCD in green or red will appear according to the memory reading. -
Page 8: Section 5 Specifications
Device fulfils the stipulations of the standard IEC 60601-1-2 The stipulations of EU-Directive 93/42/EEC for Medical Devices Class Ila have been fulfilled. * Technical alterations reserved! Software identify no.: A202 V1.0.0 7.4 Manufacturer’s Declaration of the EMC EN 60601-1-2:2015 ME EQUIPMENT and ME SYSTEMS identification,... - Page 9 Warning: Portable RF communications equipment (including peripherals such as antenna cables and external antennas) should be used no closer than 30 cm (12 inches) to any part of the equipment (A202 Infrared Thermometer), including cables specified by the manufacturer. Otherwise, degradation of the performance of this equipment could result.
- Page 10 Suresense Infrared Thermometer User Manual V1.1 (19/6/2020) Power frequency magnetic field 30 A/m 30 A/m IEC 61000-4-8 50Hz/60Hz 50Hz/60Hz 150KHz to 80MHz: 3Vrms Conduced RF 6Vrms (in ISM and amateur radio Not applicable IEC61000-4-6 bands) 80% Am at 1kHz 10 V/m...
-
Page 11: Section 8 Warranty
• Except as stated in the above paragraphs, A202 Infrared Thermometer disclaims all other warranties, implied or expressed, including the warranties of merchantability of fitness for a particular purpose with respect to the use of this product. Manufacturer shall not be liable for any direct, consequential or incidental damages arising out of the use or inability to use product.
